Two Wheel Trucks HB11-HB42-HM52-HM44-HM53-HS44

Two Wheel Trucks - HM44, HM52, HM53, HS44
Cap. 500 to 1,400 lbs.

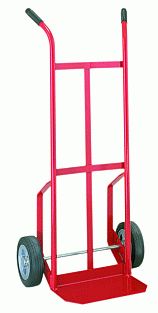

HM52-B
Shown with 8" Ace-Tuf® Rubber-tired wheels.

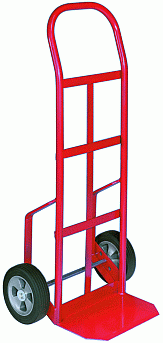

HM44-E

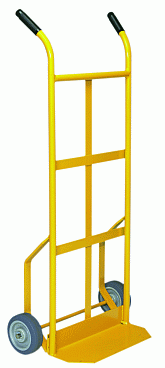

HM44-K

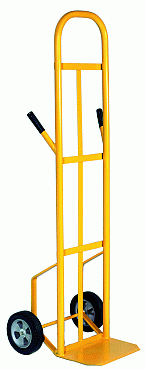

HM53-K

HM44-S

Two Wheel Hand Trucks

Designed for proper balance and rigidly welded of high alloy steel tubing, Lite-N-Tuf® all-welded steel hand trucks embody Hamilton quality at a competitive price. Steel frames of 1 11/16" O.D. high yield tubing, red enamel finish (yellow on HM44-K and HM53-K), and vinyl handle grips are standard features on these models.

HM52-B and HM44-E hand trucks feature solid bar steel curb skids, beveled nose edges, strong "back-up" nose design, and extra large stair skids. The non-rotatable "D" axle (see detail) can be moved from one position to another without tools to accommodate 6", 8" or 10" diameter wheels. Choice of wheels listed below.

HM44-K is the widest model available and is furnished standard with 6" x 2" Versa-Tech® wheels. HM53-K features 8" x 2.50 Ace-Tuf® ball bearing wheels, and a 65" tall frame ideal for carrying bread racks or other bulky high loads.

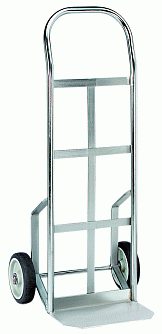

Newly added model HM44-S is all stainless steel, including hardware. Wheels have Delrin® bearings.

SPECIFICATIONS (inches)
Model No.	HM44-E	HM44-K	HM44-S	HM52-B	HM53-K
Height	46	48	46	46	65
Frame Width	15	18 1/4	15	15	15
Overall Width	20 5/8	24	20 5/8	21	21
Nose Depth	8	6 3/4	8	8	9
Capacity Lbs.	500	500	500	500	500
Weight Lbs.	30	35	30	35	40

Non-Rotatable “D” Axle in HM52-B and HM44-E. Adjustable to 3 wheel diameters. Zinc-plated finish resists rust and corrosion.
