"Ultra-Lite" Aluminum Hand Trucks-Series HA

*"Ultra-Lite" Aluminum Hand Trucks - HA71/72/78/79*
*Cap. to 500 lbs.*

Click here to view our gallery of custom designed trucks

HA71
Frame reinforced at top for extra strength.

HA72
Double handles for heavy loads.

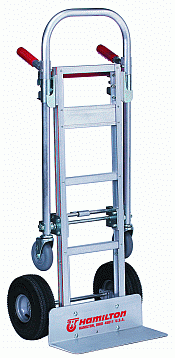

HA78
Convertible

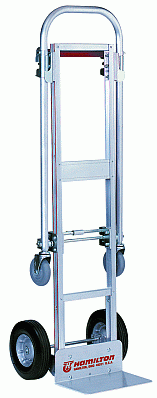

HA79
Convertible

Stocked for PRONTO® shipment—via UPS or RPS.
Lightweight design for easier handling. Helps reduce fatigue on delivery truck drivers. Aluminum frame made of extruded channel side rails with tubular cross supports for increased durability. Extruded aluminum nose plate/axle bracket has tapered leading edge to assist loading, interlocks with frame and axle for maximum strength.

Newly added convertible models HA78 and HA79 can be used as either hand trucks or platform trucks. The conversion latch system is engineered for simplicity so there are fewer moving parts resulting in more reliability and longer life. Only available with 10" pneumatic tires.

WHEEL SELECTION
Suffix	Size	Type (Ball Bearings)	Replacement Wheel No.
	8 x 2.50 10 x 2.75	Ace-Tuf®	W-8-OAT-5/8 W-10-OAT-5/8
	4.10/3.50-4	Pneumatic	W-9-PR-5/8
	8 x 1 5/8	Vulcalite™ Rubber-Tired	W-815-AR-5/8

OPTIONAL ACCESSORIES



	STAIR CLIMBERS. With built-in wear strip to increase strength and mobility for going up and down stairs or curbs. To order add the suffix "SC-HA".	FOLDING BAGGAGE RACK. Sturdy ribbed plate baggage rack 24" long, folds up when not in use. To order add suffix "F20-HA".
