A-Frame Trucks

A-Frame Trucks - AF472/473/475 & AL2092
Cap. 800 to 2,000 lbs.

AF472
Easy to move sheets and panels

QUALITY FEATURES: AF472
• All steel frame with 3/16" angle base, 1" pipe A-frame, and 1/4" angle nose plate.

• A-frame and nose 30" wide; nose 4" deep. Overall size 22 3/4" wide x 42 5/8" long x 47" high.

• L-shaped lugs on rear of frame support length of pipe which can be inserted to support extra-long loads.

• Four swivel casters with 5" x 1 1/2" roller bearing Metal, Moldon Rubber or Plastex wheels.

• Capacity 1,500 lbs. except on Moldon Rubber wheels which limit capacity to 800 lbs. Weight 100 lbs.

AF472-M with Metals wheels.

AF472-P with Plastex wheels.

AF472-R with Moldon Rubber wheels.

Shippable PRONTO®.

Click here to view our gallery of custom designed trucks


Push truck into position. Step on frame and pull back to break over load.		Panels will rest on four wheels ready to roll.

QUALITY FEATURES: AF473
• End rails and 16" deep platform made of 10 ga. steel; uprights of 1" pipe.

• Overall size 30" wide x 48" long x 57" high. Deck slopes 5° from height of 10".

• Four swivel casters with 5" x 1 3/8" ball bearing Poly-Tech® wheels or 5" x 1 1/4" oilless bearing Ebonite wheels.

• Weight 140 lbs.

AF473-E with Ebonite wheels.
AF473-NF with Poly-Tech® wheels.

AF473
Capacity 1,000 lbs.
Ideal for light, bulky loads.

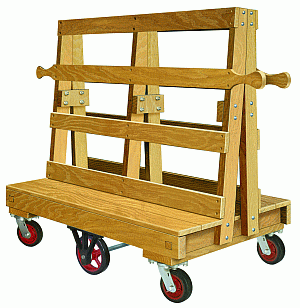

QUALITY FEATURES: AF475
• Solid hardwood construction: deck 1" thick, frame 1 3/4" x 4".

• Deck height 14 1/2". Overall height 55". Load width 11" each side.

• Load wheels 10" x 2 1/2" on 1" common axle at center; slight tilt permits balancing load to turn in its own length.

• Four swivel casters with 6" x 2" wheels.

• All wheels Moldon Rubber with roller bearings and lube fittings.

AF475-1—platform size 36" x 60". Weight 290 lbs.
AF475-2—platform size 36" x 72". Weight 305 lbs.
AF475-3—platform size 36" x 84". Four uprights.
Weight 345 lbs.
AF475-4—platform size 36" x 96". Four uprights.
Weight 365 lbs.

AF475
Capacity 2,000 lbs.
Choose flat 90° sloped deck.
Consult Factory for Purchasing Information.

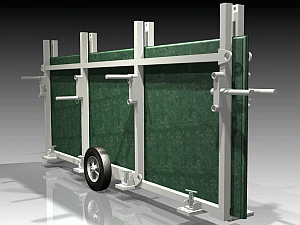

QUALITY FEATURES: AL2092
• Capacity 1200 lbs.

• Lightweight, all-aluminum construction.

• Ideal for granite and other heavy materials.

• 92” Long x 24” wide x 43 3/4" high.

• Fully adjustable for panel thicknesses up to 3 1/2".

• Adjustable handle positions accommodate different users/different loads.

• Large 12" x 3.00 Ace-Tuf® wheels for easy rolling.

AL2092
Adjustable dolly for granite and other heavy panels.
Consult Factory for Purchasing Information.
