Home >  Carts & Trailers > Specialty Trucks > Bar Handling Trucks

Bar Handling Trucks - BH485, BH488
Cap. 3,000 to 6,000 lbs.








BH485

  5 ft. long, 3,000 lbs. capacity.


BH488  8 ft. long, 6,000 lbs. capacity.

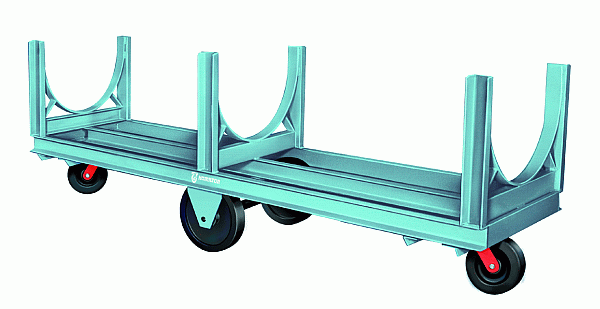

Bar Handling Trucks Elevated cradles speed loading/unloading by forklift or overhead hoist. Tilt-type running gear permits turning in its own length. Standard with one swivel caster at each end, but available with two swivel casters at each end when uneven floors exist. Frame and uprights constructed of steel channel. Cradles made of 3/8" flat steel 15" deep.

BH485 is 26" wide x 60" long x 32" high overall with two 12" x 2 1/2" load wheels on a 1" dia. axle and two forged steel swivel casters with 8" x 2" roller bearing wheels. Weight 250 lbs.		   BH488 is 26" wide x 96" long x 33 1/2" high overall with two 12" x 3" load wheels on a 1 11/4" dia. axle and two forged steel swivel casters with 8" x 2 1/2" roller bearing wheels. Weight 460 lbs.


To order or see more detail, click on suffix corresponding to desired wheel type.
View
Printer Friendly
PDF Version
Bar Handling Equipment Selection Table
Dimensions in inches
Base
Model No.		WHEEL SELECTION
Duralast®MetalPlastex
BH488-DMP
BH485-DMP
