Two Wheel Trucks - HM69, LE555/556/557

Cap. 800 to 5,000 lbs.




HM82
    Large 12" Ace-Tuf® Wheels.
   Shippable PRONTO®!

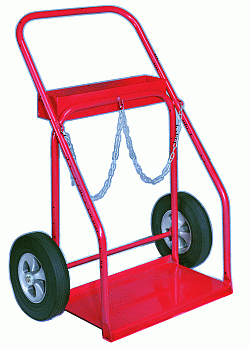

Dual Cylinder Truck
Easily carries a 300 cu. ft. oxygen and a 300 cu. ft. acetylene tank. Has adjustable locking chain and accessory tray 22" x 5" x 3" deep. All-welded construction. 12 x 3.00 Ace-Tuf® rubber-tired, ball bearing wheels.

Height ...................42 1/2"

Frame width .........25"

Nose depth ...........13"

Axle diameter ........3/4"

Weight ..................48 lbs.

Capacity ................600 lbs.
HM91
   Shippable PRONTO® via UPS.

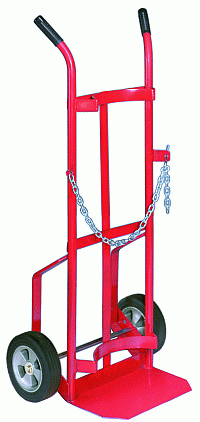

Cylinder Truck

For single tank or cylindrical object up to 10" diameter. 1 1/16" tubular steel construction with large safety nose plate, quick-acting locking chain, full-size stair skids, and non-slip handle grips. Choose 6 x 2.00 Semi-Pneumatic wheels (HM91-6SP), 8 X 2.50 Ace-Tuf® wheels (HM91-8AT) or 10 x 2.75 Ace-Tuf® wheels (HM91-10AT). Ball bearings in all wheels.

Handle length .......46"

Frame width .........15"

Nose depth ...........8"

Axle diameter .......5/8"

Weight ..................38 lbs.

Capacity ...............400 lbs.
