Semi-Live Skid System - LJ700 - SB715
Cap. to 2,500 lbs.


QUALITY FEATURES: SB715

• Flush 1" select hardwood deck in 3/16" steel angle frame.

• Integrally welded steel front leg assembly and rear wheel assembly.

• Choice of 8" x 2" or 8" x 2 1/2" wheels having roller bearings and lube fittings.

• Platform height 12 1/2".

• Capacity 1,500 lbs. with 8" x 2" Moldon Rubber wheels to 2,500 lbs. with 8" x 2 1/2" Metal or Plastex wheels.


QUALITY FEATURES: LJ700

• Steel pipe handle welded to hook and axle housing (designed only for use with Model SB715 or SM720 Skid Trucks).

• Comfortable vinyl handle grips.

• Maintenance-free; no springs or troublesome parts.

• Stands upright when not in use.

• Specify with 8" x 2" or 8" x 2 1/2" wheels to match size and type on skid trucks.

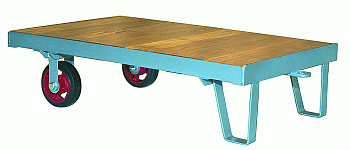

SB715

Select hardwood deck in steel frame.

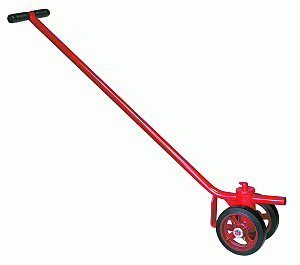

LJ700 Lift Jack

8" x 2" or 8" x 2 1/2" wheels.


Click here to view our gallery of custom designed trucks


WHEEL CHOICES
Heavy duty cast iron.1500 psi 70A Rubber vulcanized to heavy duty cast iron center.Fiber-reinforced phenolic resin wheel.
