Spring Loaded Casters
Series SP - Cap. to 1,630 lbs.

#S-SPCH-10DT-2 Swivel w/ Duralast® Wheel

#R-SPCH-83DT-2 Rigid w/ Duralast® Wheel

NEVER DISASSEMBLE A SPRINGLOADED CASTER OR REMOVE THE WHEEL FROM THE CASTER.

The springs contain a tremendous amount of stored energy and serious injury could occur. This should only be done by trained factory personnel.

Hamilton's shock absorbing casters are built on the proven and reliable Champion, Workhorse and Heavy Service swivel caster platforms. This means you have lots of flexibility if you need to match an existing bolt hole pattern or a specific capacity range. The unique and simple design enables Hamilton to offer these at extremely competitive prices.

Spring loaded casters offer many benefits. These include protecting delicate cargo from shock and vibration, reducing noise levels, reducing wear on floors and extending caster, wheel and bearing life.

The legs are slotted such that the axle "floats" up and down as the wheel encounters obstacles. Since the spring is pre-loaded, the minimum capacity is required to cause the spring to yield. (A load under the minimum capacity may not result in any absorption of shock.)

At the maximum capacity, the spring will have compressed approximately one-half of its length. Overloading a shock-absorbing caster will cause the axle to reach its travel limit, resulting in no shock absorbing benefit.

These casters can be easily modified to accommodate many custom specification requirements. Our engineering department will assist you if you have special application issues.

WHEEL CHOICES

Hamilton’s classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

New ultimate urethane, best in rollability & minimizing heat buildup, ideal for continuous operation at high speeds.

Solid Polyurethane 95A - steam cleanable, best for institutional use

To order or see more detail, click on desired model number.

View
Printer Friendly
PDF Version

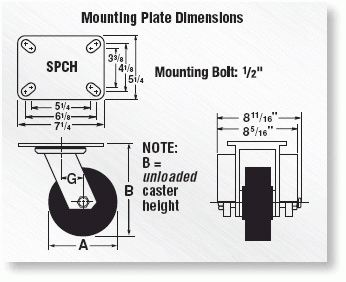

Champion Caster - SPCH Series Selection Table

Dimensions in inches
Wheel			Swivel Caster					Rigid Caster					Capacity (Lbs.)		Overall Height B	Swivel Offset G
Dia. A	Face	Type	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Min.	Max.	Overall Height B	Swivel Offset G
6	2 1/2	Duralast®	S-SPCH-6DB-1	$418.56	S-SPCH-6DT-1	$462.06	39	R-SPCH-6DB-1	$284.76	R-SPCH-6DT-1	$292.50	37	140	850	11 1/4	2 1/2
		Duralast®	S-SPCH-6DB-2	$444.78	S-SPCH-6DT-2	$488.28	39	R-SPCH-6DB-2	$310.98	R-SPCH-6DT-2	$318.72	37	270	1600
		Plastex	S-SPCH-6PH-1	$383.58	S-SPCH-6PT-1	$439.20	34	R-SPCH-6PH-1	$249.78	R-SPCH-6PT-1	$305.40	31	140	850
		Plastex	S-SPCH-6PH-2	$409.80	S-SPCH-6PT-2	$465.42	34	R-SPCH-6PH-2	$276.00	R-SPCH-6PT-2	$331.62	31	270	1630
	3	Duralast®	S-SPCH-63DB-1	$422.76	S-SPCH-63DT-1	$468.72	41	R-SPCH-63DB-1	$288.96	R-SPCH-63DT-1	$334.92	39	140	850
		Duralast®	S-SPCH-63DB-2	$450.18	S-SPCH-63DT-2	$494.94	41	R-SPCH-63DB-2	$315.18	R-SPCH-63DT-2	$361.14	39	270	1630
		Plastex	S-SPCH-63PH-1	$395.58	S-SPCH-63PT-1	$451.38	35	R-SPCH-63PH-1	$261.78	R-SPCH-63PT-1	$317.58	32	140	850
		Plastex	S-SPCH-63PH-2	$421.80	S-SPCH-63PT-2	$477.60	35	R-SPCH-63PH-2	$288.00	R-SPCH-63PT-2	$343.80	32	270	1630
		Poly-Soft®	S-SPCH-63SPB-1	$429.72	S-SPCH-63SPT-1	$472.02	41	R-SPCH-63SPB-1	$295.92	R-SPCH-63SPT-1	$338.22	39	140	850
		Poly-Soft®	S-SPCH-63SPB-2	$455.94	S-SPCH-63SPT-2	$498.24	41	R-SPCH-63SPB-2	$322.14	R-SPCH-63SPT-2	$364.44	39	270	1630
		Ultralast™	S-SPCH-63TRB-1	$500.04	S-SPCH-63TRT-1	$552.06	39	R-SPCH-63TRB-1	$366.24	R-SPCH-63TRT-1	$418.26	39	140	850
		Ultralast™	S-SPCH-63TRB-2	$526.26	S-SPCH-63TRT-2	$578.28	39	R-SPCH-63TRB-2	$392.46	R-SPCH-63TRT-2	$444.48	39	270	1630
8	2 1/2	Duralast®	S-SPCH-8DB-1	$432.72	S-SPCH-8DT-1	$475.74	47	R-SPCH-8DB-1	$298.92	R-SPCH-8DT-1	$341.94	45	140	850	12 1/4	2 1/2
		Duralast®	S-SPCH-8DB-2	$458.94	S-SPCH-8DT-2	$501.96	47	R-SPCH-8DB-2	$325.14	R-SPCH-8DT-2	$368.16	45	270	1630
		Plastex	S-SPCH-8PH-1	$385.02	S-SPCH-8PT-1	$440.76	36	R-SPCH-8PH-1	$251.22	R-SPCH-8PT-1	$306.96	33	140	850
		Plastex	S-SPCH-8PH-2	$411.24	S-SPCH-8PT-2	$466.98	36	R-SPCH-8PH-2	$277.44	R-SPCH-8PT-2	$333.18	33	270	1630
	3	Duralast®	S-SPCH-83DB-1	$443.88	S-SPCH-83DT-1	$481.20	49	R-SPCH-83DB-1	$310.08	R-SPCH-83DT-1	$347.40	46	140	850
		Duralast®	S-SPCH-83DB-2	$470.10	S-SPCH-83DT-2	$507.42	49	R-SPCH-83DB-2	$336.30	R-SPCH-83DT-2	$373.62	46	270	1630
		Plastex	S-SPCH-83PH-1	$402.00	S-SPCH-83PT-1	$456.06	38	R-SPCH-83PH-1	$268.20	R-SPCH-83PT-1	$322.26	36	140	850
		Plastex	S-SPCH-83PH-2	$428.22	S-SPCH-83PT-2	$482.28	38	R-SPCH-83PH-2	$294.42	R-SPCH-83PT-2	$348.48	36	270	1630
		Poly-Soft®	S-SPCH-83SPB-1	$451.02	S-SPCH-83SPT-1	$490.14	49	R-SPCH-83SPB-1	$317.22	R-SPCH-83SPT-1	$356.34	46	140	850
		Poly-Soft®	S-SPCH-83SPB-2	$477.24	S-SPCH-83SPT-2	$516.36	49	R-SPCH-83SPB-2	$343.44	R-SPCH-83SPT-2	$382.56	46	270	1630
		Ultralast™	S-SPCH-83TRB-1	$568.50	S-SPCH-83TRT-1	$587.82	46	R-SPCH-83TRB-1	$434.70	R-SPCH-83TRT-1	$454.02	46	140	850
		Ultralast™	S-SPCH-83TRB-2	$594.72	S-SPCH-83TRT-2	$614.04	46	R-SPCH-83TRB-2	$460.92	R-SPCH-83TRT-2	$480.24	46	270	1630
10	2 1/2	Duralast®	S-SPCH-10DB-1	$449.28	S-SPCH-10DT-1	$498.06	45	R-SPCH-10DB-1	$318.48	R-SPCH-10DT-1	$367.26	43	140	850	14 1/4	2 5/8
		Duralast®	S-SPCH-10DB-2	$475.50	S-SPCH-10DT-2	$524.28	45	R-SPCH-10DB-2	$344.70	R-SPCH-10DT-2	$393.48	43	270	1630
		Plastex	S-SPCH-10PH-1	$393.90	S-SPCH-10PT-1	$446.46	38	R-SPCH-10PH-1	$263.10	R-SPCH-10PT-1	$315.66	36	140	850
		Plastex	S-SPCH-10PH-2	$420.12	S-SPCH-10PT-2	$472.68	38	R-SPCH-10PH-2	$292.92	R-SPCH-10PT-2	$341.88	36	270	1630
	3	Duralast®	S-SPCH-13DB-1	$469.20	S-SPCH-13DT-1	$509.40	53	R-SPCH-13DB-1	$327.36	R-SPCH-13DT-1	$378.60	50	140	850
		Duralast®	S-SPCH-13DB-2	$495.42	S-SPCH-13DT-2	$535.62	53	R-SPCH-13DB-2	$353.58	R-SPCH-13DT-2	$404.82	50	270	1630
		Plastex	S-SPCH-13PH-1	$400.86	S-SPCH-13PT-1	$455.16	40	R-SPCH-13PH-1	$270.06	R-SPCH-13PT-1	$324.36	38	140	850
		Plastex	S-SPCH-13PH-2	$427.08	S-SPCH-13PT-2	$481.38	40	R-SPCH-13PH-2	$296.28	R-SPCH-13PT-2	$350.58	38	270	1630
		Poly-Soft®	S-SPCH-13SPB-1	$472.20	S-SPCH-13SPT-1	$514.74	53	R-SPCH-13SPB-1	$341.40	R-SPCH-13SPT-1	$383.94	50	140	850
		Poly-Soft®	S-SPCH-13SPB-2	$498.42	S-SPCH-13SPT-2	$540.96	53	R-SPCH-13SPB-2	$367.62	R-SPCH-13SPT-2	$410.16	50	270	1630
		Ultralast™	S-SPCH-13TRB-1	$613.32	S-SPCH-13TRT-1	$648.90	46	R-SPCH-13TRB-1	$482.52	R-SPCH-13TRT-1	$518.10	50	140	850
		Ultralast™	S-SPCH-13TRB-2	$639.54	S-SPCH-13TRT-2	$1,314.66	46	R-SPCH-13TRB-2	$508.74	R-SPCH-13TRT-2	$544.32	50	270	1630
12	3	Duralast®	S-SPCH-12DB-1	$529.20	S-SPCH-12DT-1	$569.82	72	R-SPCH-12DB-1	$396.60	R-SPCH-12DT-1	$437.22	71	140	850	16 1/4	2 1/2
		Duralast®	S-SPCH-12DB-2	$555.42	S-SPCH-12DT-2	$596.04	72	R-SPCH-12DB-2	$422.82	R-SPCH-12DT-2	$495.84	71	270	1630
		Plastex	S-SPCH-12PH-1	$411.60	S-SPCH-12PT-1	$465.96	45	R-SPCH-12PH-1	$279.00	R-SPCH-12PT-1	$333.36	43	140	850
		Plastex	S-SPCH-12PH-2	$437.82	S-SPCH-12PT-2	$492.18	45	R-SPCH-12PH-2	$305.22	R-SPCH-12PT-2	$359.58	43	270	1630
		Poly-Soft®	S-SPCH-12SPB-1	$540.96	S-SPCH-12SPT-1	$568.98	72	R-SPCH-12SPB-1	$408.36	R-SPCH-12SPT-1	$436.38	71	140	850
		Poly-Soft®	S-SPCH-12SPB-2	$567.18	S-SPCH-12SPT-2	$595.20	72	R-SPCH-12SPB-2	$434.58	R-SPCH-12SPT-2	$462.60	71	270	1630
		Ultralast™	S-SPCH-12TRB-1	$658.14	S-SPCH-12TRT-1	$685.92	63	R-SPCH-12TRB-1	$525.54	R-SPCH-12TRT-1	$553.32	61	140	850
		Ultralast™	S-SPCH-12TRB-2	$684.36	S-SPCH-12TRT-2	$712.14	63	R-SPCH-12TRB-2	$551.76	R-SPCH-12TRT-2	$579.54	61	270	1630

Workhorse Caster - SPWH Series Selection Table

Dimensions in inches
Wheel			Swivel Caster					Rigid Caster					Capacity (Lbs.)		Overall Height B	Swivel Offset G
Dia. A	Face	Type	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Min.	Max.	Overall Height B	Swivel Offset G
4	2	Duralast®	S-SPWH-4DB-1	$221.34	X	X	15	R-SPWH-4DB-1	$188.34	X	X	12	125	620	6 11/16	2
		Duralast®	S-SPWH-4DB-2	$232.14	X	X	15	R-SPWH-4DB-2	$199.14	X	X	12	280	750
		Plastex	S-SPWH-4P-1	$190.68	X	X	12	R-SPWH-4P-1	$158.28	X	X	9	125	620
		Plastex	S-SPWH-4P-2	$201.48	X	X	12	R-SPWH-4P-2	$169.08	X	X	9	280	800
		Poly-Soft®	S-SPWH-4SPB-1	$226.26	X	X	15	R-SPWH-4SPB-1	$193.26	X	X	12	125	600
		Poly-Soft®	S-SPWH-4SPB-2	$237.06	X	X	15	R-SPWH-4SPB-2	$204.06	X	X	12	280	600
		Ultralast™	S-SPWH-4TRB-1	$258.72	X	X	15	R-SPWH-4TRB-1	$225.72	X	X	12	125	620
		Ultralast™	S-SPWH-4TRB-2	$269.52	X	X	15	R-SPWH-4TRB-2	$247.32	X	X	12	280	900
		Unilast®	S-SPWH-4UYB-1	$210.96	X	X	12	R-SPWH-4UYB-1	$177.96	X	X	9	125	620
		Unilast®	S-SPWH-4UYB-2	$221.76	X	X	12	R-SPWH-4UYB-2	$188.76	X	X	9	280	750
5	2	Duralast®	S-SPWH-5DB-1	$222.00	S-SPWH-5DT-1	$246.54	15	R-SPWH-5DB-1	$189.00	R-SPWH-5DT-1	$202.74	13	125	620	7 3/16	2
		Duralast®	S-SPWH-5DB-2	$232.80	S-SPWH-5DT-2	$257.34	15	R-SPWH-5DB-2	$199.80	R-SPWH-5DT-2	$213.54	13	280	1050
		Plastex	S-SPWH-5P-1	$191.70	X	X	13	R-SPWH-5P-1	$159.30	X	X	10	125	620
		Plastex	S-SPWH-5P-2	$202.50	X	X	13	R-SPWH-5P-2	$170.10	X	X	10	280	1000
		Poly-Soft®	S-SPWH-5SPB-1	$227.46	S-SPWH-5SPT-1	$238.86	15	R-SPWH-5SPB-1	$194.46	R-SPWH-5SPT-1	$205.86	13	125	620
		Poly-Soft®	S-SPWH-5SPB-2	$238.26	S-SPWH-5SPT-2	$249.66	15	R-SPWH-5SPB-2	$205.26	R-SPWH-5SPT-2	$216.66	13	280	840
		Ultralast™	S-SPWH-5TRB-1	$278.16	S-SPWH-5TRT-1	$298.68	15	R-SPWH-5TRB-1	$245.16	R-SPWH-5TRT-1	$265.68	13	125	620
		Ultralast™	S-SPWH-5TRB-2	$288.96	S-SPWH-5TRT-2	$309.48	15	X	X	R-SPWH-5TRT-2	$276.48	13	280	1200
		Unilast®	S-SPWH-5UYB-1	$215.22	X	X	12	R-SPWH-5UYB-1	$182.22	X	X	9	125	620
		Unilast®	S-SPWH-5UYB-2	$226.02	X	X	12	R-SPWH-5UYB-2	$203.82	X	X	9	280	900
6	2	Duralast®	S-SPWH-6DB-1	$222.36	S-SPWH-6DT-1	$240.60	19	R-SPWH-6DB-1	$189.36	R-SPWH-6DT-1	$207.60	16	125	620	8 3/16	2 1/4
		Duralast®	S-SPWH-6DB-2	$233.16	S-SPWH-6DT-2	$251.40	19	R-SPWH-6DB-2	$200.16	R-SPWH-6DT-2	$218.40	16	280	1200
		Plastex	S-SPWH-6P-1	$193.86	X	X	14	R-SPWH-6P-1	$162.06	X	X	11	125	620
		Plastex	S-SPWH-6P-2	$203.40	X	X	14	R-SPWH-6P-2	$172.86	X	X	11	280	1200
		Poly-Soft®	S-SPWH-6SPB-1	$228.24	S-SPWH-6SPT-1	$240.60	19	R-SPWH-6SPB-1	$195.24	R-SPWH-6SPT-1	$207.60	16	125	620
		Poly-Soft®	S-SPWH-6SPB-2	$239.04	S-SPWH-6SPT-2	$2,514.00	19	R-SPWH-6SPB-2	$206.04	R-SPWH-6SPT-2	$218.40	16	280	960
		Ultralast™	S-SPWH-6TRB-1	$284.82	S-SPWH-6TRT-1	$307.14	15	R-SPWH-6TRB-1	$251.82	R-SPWH-6TRT-1	$274.14	12	125	620
		Ultralast™	S-SPWH-6TRB-2	$295.62	S-SPWH-6TRT-2	$317.94	15	R-SPWH-6TRB-2	$262.62	R-SPWH-6TRT-2	$284.94	12	280	1200
		Unilast®	S-SPWH-6UYB-1	$218.40	X	X	12	R-SPWH-6UYB-1	$185.40	X	X	10	125	620
		Unilast®	S-SPWH-6UYB-2	$229.20	X	X	12	R-SPWH-6UYB-2	$196.20	X	X	10	280	1100
8	2	Duralast®	S-SPWH-8DB-1	$234.96	S-SPWH-8DT-1	$245.76	22	R-SPWH-8DB-1	$201.96	R-SPWH-8DT-1	$212.76	19	125	620	10 3/16	2 15/16
		Duralast®	S-SPWH-8DB-2	$245.76	S-SPWH-8DT-2	$256.56	22	R-SPWH-8DB-2	$212.76	R-SPWH-8DT-2	$223.56	19	280	1220
		Plastex	S-SPWH-8P-1	$200.10	X	X	15	R-SPWH-8P-1	$167.10	X	X	13	125	620
		Plastex	S-SPWH-8P-2	$210.90	X	X	15	R-SPWH-8P-2	$188.70	X	X	13	280	1220
		Poly-Soft®	S-SPWH-8SPB-1	$241.50	S-SPWH-8SPT-1	$251.10	22	R-SPWH-8SPB-1	$208.50	R-SPWH-8SPT-1	$218.10	19	125	620
		Poly-Soft®	S-SPWH-8SPB-2	$258.30	S-SPWH-8SPT-2	$261.90	22	R-SPWH-8SPB-2	$219.30	R-SPWH-8SPT-2	$228.90	19	280	1200
		Ultralast™	S-SPWH-8TRB-1	$310.26	S-SPWH-8TRT-1	$330.78	18	R-SPWH-8TRB-1	$277.26	R-SPWH-8TRT-1	$297.78	15	125	620
		Ultralast™	S-SPWH-8TRB-2	$321.06	S-SPWH-8TRT-2	$341.58	18	R-SPWH-8TRB-2	$294.06	R-SPWH-8TRT-2	$308.58	15	280	1220
		Unilast®	S-SPWH-8UYB-1	$231.00	X	X	14	R-SPWH-8UYB-1	$198.00	X	X	11	125	620
		Unilast®	S-SPWH-8UYB-2	$241.80	X	X	14	R-SPWH-8UYB-2	$208.80	X	X	11	280	1200

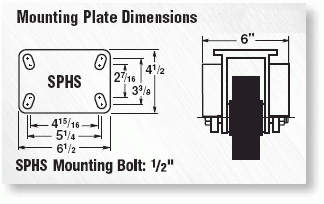

Heavy Service Casters - SPHS Series Selection Table

Dimensions in inches
Wheel			Swivel Caster					Rigid Caster					Capacity (Lbs.)		Overall Height B	Swivel Offset G
Dia. A	Face	Type	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Model No. Roller/Prec. BB	MSRP	Model No. Tapered Brgs.	MSRP	Wt. Lbs.	Min.	Max.	Overall Height B	Swivel Offset G
4	2	Duralast®	S-SPHS-4DB-1	$224.34	X	X	17	R-SPHS-4DB-1	$185.94	X	X	14	125	620	6 11/16	2
		Duralast®	S-SPHS-4DB-2	$235.14	X	X	17	R-SPHS-4DB-2	$193.14	X	X	14	280	750
		Plastex	S-SPHS-4P-1	$197.88	X	X	14	R-SPHS-4P-1	$159.48	X	X	13	125	620
		Plastex	S-SPHS-4P-2	$208.68	X	X	14	R-SPHS-4P-2	$170.28	X	X	11	280	800
		Poly-Soft®	S-SPHS-4SPB-1	$229.26	X	X	17	R-SPHS-4SPB-1	$190.86	X	X	14	125	600
		Poly-Soft®	S-SPHS-4SPB-2	$240.06	X	X	17	R-SPHS-4SPB-2	$201.66	X	X	14	280	600
		Ultralast™	S-SPHS-4TRB-1	$261.72	X	X	14	R-SPHS-4TRB-1	$223.32	X	X	11	125	620
		Ultralast™	S-SPHS-4TRB-2	$271.32	X	X	14	R-SPHS-4TRB-2	$234.12	X	X	11	280	900
		Unilast®	S-SPHS-4UYB-1	$213.96	X	X	14	R-SPHS-4UYB-1	$175.56	X	X	11	125	620
		Unilast®	S-SPHS-4UYB-2	$251.76	X	X	14	R-SPHS-4UYB-2	$186.36	X	X	11	280	750
5	2	Duralast®	S-SPHS-5DB-1	$225.00	S-SPHS-5DT-1	$238.74	18	R-SPHS-5DB-1	$186.60	R-SPHS-5DT-1	$200.34	14	125	620	7 3/16	2
		Duralast®	S-SPHS-5DB-2	$235.80	S-SPHS-5DT-2	$249.54	18	R-SPHS-5DB-2	$197.40	R-SPHS-5DT-2	$211.14	14	280	1050
		Plastex	S-SPHS-5P-1	$198.90	X	X	15	R-SPHS-5P-1	$160.50	X	X	11	125	620
		Plastex	S-SPHS-5P-2	$209.70	X	X	15	R-SPHS-5P-2	$171.30	X	X	11	280	1000
		Poly-Soft®	S-SPHS-5SPB-1	$230.46	S-SPHS-5SPT-1	$241.86	18	R-SPHS-5SPB-1	$192.06	R-SPHS-5SPT-1	$203.46	14	125	620
		Poly-Soft®	S-SPHS-5SPB-2	$241.26	S-SPHS-5SPT-2	$252.66	18	R-SPHS-5SPB-2	$198.06	R-SPHS-5SPT-2	$214.26	14	280	840
		Ultralast™	S-SPHS-5TRB-1	$281.16	S-SPHS-5TRT-1	$301.68	15	R-SPHS-5TRB-1	$242.76	R-SPHS-5TRT-1	$263.28	11	125	620
		Ultralast™	S-SPHS-5TRB-2	$291.96	S-SPHS-5TRT-2	$312.48	15	R-SPHS-5TRB-2	$253.56	R-SPHS-5TRT-2	$274.08	11	280	1200
		Unilast®	S-SPHS-5UYB-1	$218.22	X	X	14	R-SPHS-5UYB-1	$179.82	X	X	11	125	620
		Unilast®	S-SPHS-5UYB-2	$211.55	X	X	14	R-SPHS-5UYB-2	$190.62	X	X	11	280	900
6	2	Duralast®	S-SPHS-6DB-1	$226.56	S-SPHS-6DT-1	$244.80	21	R-SPHS-6DB-1	$187.56	R-SPHS-6DT-1	$205.80	17	125	620	8 3/16	2 1/4
		Duralast®	S-SPHS-6DB-2	$237.36	S-SPHS-6DT-2	$255.60	21	R-SPHS-6DB-2	$198.36	R-SPHS-6DT-2	$216.60	17	280	1200
		Plastex	S-SPHS-6P-1	$201.06	X	X	16	R-SPHS-6P-1	$162.06	X	X	12	125	620
		Plastex	S-SPHS-6P-2	$211.86	X	X	16	R-SPHS-6P-2	$172.86	X	X	12	280	1200
		Poly-Soft®	S-SPHS-6SPB-1	$232.44	S-SPHS-6SPT-1	$244.80	21	R-SPHS-6SPB-1	$193.44	R-SPHS-6SPT-1	$205.80	17	125	620
		Poly-Soft®	S-SPHS-6SPB-2	$243.24	S-SPHS-6SPT-2	$255.60	21	R-SPHS-6SPB-2	$204.24	R-SPHS-6SPT-2	$216.60	17	280	960
		Ultralast™	S-SPHS-6TRB-1	$289.02	S-SPHS-6TRT-1	$311.34	16	R-SPHS-6TRB-1	$250.02	R-SPHS-6TRT-1	$272.34	13	125	620
		Ultralast™	S-SPHS-6TRB-2	$299.82	S-SPHS-6TRT-2	$322.14	16	R-SPHS-6TRB-2	$260.82	R-SPHS-6TRT-2	$283.14	13	280	1200		X
		Unilast®	S-SPHS-6UYB-1	$222.60	X	X	15	R-SPHS-6UYB-1	$183.60	X	X	11	125	620		2 1/4
		Unilast®	S-SPHS-6UYB-2	$233.40	X	X	15	R-SPHS-6UYB-2	$194.40	X	X	11	280	1100		2 1/4
8	2	Duralast®	S-SPHS-8DB-1	$239.76	S-SPHS-8DT-1	$250.56	24	R-SPHS-8DB-1	$201.36	R-SPHS-8DT-1	$212.16	20	125	620	10 3/16	2 7/8
		Duralast®	S-SPHS-8DB-2	$250.56	S-SPHS-8DT-2	$261.36	24	R-SPHS-8DB-2	$212.16	R-SPHS-8DT-2	$222.96	20	280	1220
		Plastex	S-SPHS-8P-1	$205.50	X	X	18	R-SPHS-8P-1	$167.10	X	X	14	125	620
		Plastex	S-SPHS-8P-2	$216.30	X	X	18	R-SPHS-8P-2	$171.90	X	X	14	280	1220
		Poly-Soft®	S-SPHS-8SPB-1	$246.30	S-SPHS-8SPT-1	$255.90	24	R-SPHS-8SPB-1	$207.90	R-SPHS-8SPT-1	$217.50	20	125	620
		Poly-Soft®	S-SPHS-8SPB-2	$257.10	S-SPHS-8SPT-2	$266.70	24	R-SPHS-8SPB-2	$218.70	R-SPHS-8SPT-2	$228.30	20	280	1200
		Ultralast™	S-SPHS-8TRB-1	$315.06	S-SPHS-8TRT-1	$335.58	20	R-SPHS-8TRB-1	$276.66	R-SPHS-8TRT-1	$297.18	16	125	620
		Ultralast™	S-SPHS-8TRB-2	$325.86	S-SPHS-8TRT-2	$346.38	20	R-SPHS-8TRB-2	$287.46	R-SPHS-8TRT-2	$307.98	16	280	1200
		Unilast®	S-SPHS-8UYB-1	$235.80	X	X	16	R-SPHS-8UYB-1	$197.40	X	X	13	125	620
		Unilast®	S-SPHS-8UYB-2	$246.60	X	X	16	R-SPHS-8UYB-2	$208.20	X	X	13	280	1200
