| Wheel | Swivel Caster | Rigid Caster | Load
Cap.

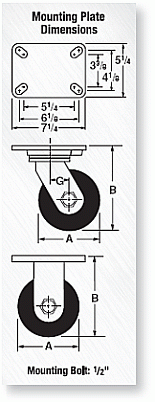

Lbs. | Overall
Height
B | Swivel
Offset
G |
| Dia. | Face |

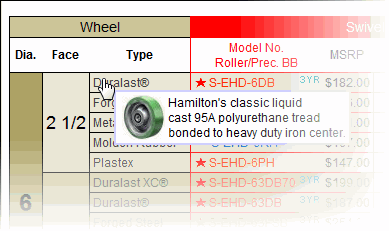

Hover over the Wheel Type to see more information.
|
Click on the Model Number to view details about the Caster.
Roller/Prec. BB | MSRP |
Click on the Model Number to view details about the Caster.
Tapered Brgs. | MSRP | Wt.
Lbs. |
Click on the Model Number to view details about the Caster.
Roller/Prec. BB | MSRP |
Click on the Model Number to view details about the Caster.
Tapered Brgs. | MSRP | Wt.
Lbs. |
| 6 | 2 1/2 | Duralast® Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. |  S-CH-6DB | $167.00 | S-CH-6DT | $211.00 | 28 | R-CH-6DB | $101.00 | R-CH-6DT | $144.00 | 20 | 1600 | 8 | 2 1/4 |
Forged Steel Highest capacity drop forged steel
tensile strength in the 75,000 psi range. | S-CH-6FSH | $192.00 | S-CH-6FST | $220.00 | 27 | R-CH-6FSH | $127.00 | R-CH-6FST | $157.00 | 22 | 3500 |
Metal Heavy duty cast iron. | S-CH-6MH | $144.00 | S-CH-6MT | $186.00 | 26 | R-CH-6MH | $79.00 | R-CH-6MT | $123.00 | 20 | 2200 |
Plastex Fiber-reinforced
phenolic resin wheel. | S-CH-6PH | $130.00 | S-CH-6PT | $186.00 | 21 | R-CH-6PH | $65.00 | R-CH-6PT | $123.00 | 15 | 1800 |
| 3 | Duralast XC® A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®. | S-CH-63DB70 | $185.00 | S-CH-63DT70 | $231.00 | 29 | R-CH-63DB70 | $119.00 | R-CH-63DT70 | $169.00 | 22 | 2860 |
Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-63DB | $172.00 | S-CH-63DT | $218.00 | 28 | R-CH-63DB | $106.00 | R-CH-63DT | $156.00 | 22 | 2200 |
Forged SteelHighest capacity drop forged steel
tensile strength in the 75,000 psi range. | S-CH-63FSB | $244.00 | S-CH-63FST | $262.00 | 35 | R-CH-63FSB | $178.00 | R-CH-63FST | $200.00 | 29 | 4000 |
MetalHeavy duty cast iron. | S-CH-63MB | $152.00 | S-CH-63MT | $201.00 | 29 | R-CH-63MB | $86.00 | R-CH-63MT | $138.00 | 23 | 2500 |
Nylast® Solid high capacity cast nylon resistant to moisture & many chemicals. | S-CH-63NYB | $243.00 | X | X | 22 | R-CH-63NYB | $175.00 | X | X | 16 | 4000 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-63PH | $144.00 | S-CH-63PT | $199.00 | 21 | R-CH-63PH | $81.00 | R-CH-63PT | $136.00 | 16 | 2000 |
Poly-Soft® High performance liquid
cast 85A polyurethane
bonded to heavy duty iron center. | S-CH-63SPB | $179.00 | S-CH-63SPT | $222.00 | 28 | R-CH-63SPB | $113.00 | R-CH-63SPT | $159.00 | 22 | 1800 |
Swivel-EAZ® Twin wheel liquid cast polyurethane
on aluminum core. | S-CH-63SWF | $250.00 | X | X | 21 | R-CH-63SWF | $188.00 | X | X | 16 | 3500 |
Ultralast® New ultimate urethane
best in rollability & minimizing heat buildup
ideal for continuous operation at high speeds. | S-CH-63TRB | $256.00 | S-CH-63TRT | $309.00 | 28 | R-CH-63TRB | $190.00 | R-CH-63TRT | $247.00 | 22 | 2600 |
| 8 | 2 1/2 | Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-8DB | $184.00 | S-CH-8DT | $227.00 | 35 | R-CH-8DB | $118.00 | R-CH-8DT | $164.00 | 29 | 2000 | 10 1/2 | 2 1/2 |
MetalHeavy duty cast iron. | S-CH-8MH | $159.00 | S-CH-8MT | $206.00 | 33 | R-CH-8MH | $95.00 | R-CH-8MT | $143.00 | 27 | 2500 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-8PH | $132.00 | S-CH-8PT | $206.00 | 24 | R-CH-8PH | $68.00 | R-CH-8PT | $143.00 | 18 | 2000 |
| 3 | Duralast XC®A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®. | S-CH-83DB70 | $214.00 | S-CH-83DT70 | $254.00 | 35 | R-CH-83DB70 | $148.00 | R-CH-83DT70 | $192.00 | 30 | 3250 |
Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-83DB | $196.00 | S-CH-83DT | $233.00 | 36 | R-CH-83DB | $131.00 | R-CH-83DT | $170.00 | 30 | 2500 |
Forged SteelHighest capacity drop forged steel
tensile strength in the 75,000 psi range. | S-CH-83FSB | $251.00 | S-CH-83FST | $299.00 | 39 | R-CH-83FSB | $186.00 | R-CH-83FST | $237.00 | 33 | 4000 |
MetalHeavy duty cast iron. | S-CH-83MB | $163.00 | S-CH-83MT | $205.00 | 38 | R-CH-83MB | $98.00 | R-CH-83MT | $142.00 | 32 | 2600 |
Moldon Rubber 1500 psi 70A Rubber
vulcanized to heavy duty
cast iron center. | S-CH-83RH | $166.00 | S-CH-83RT | $219.00 | 34 | R-CH-83RH | $102.00 | R-CH-83RT | $157.00 | 28 | 840 |
Nylast®Solid high capacity cast nylon resistant to moisture & many chemicals. | S-CH-83NYB | $309.00 | X | X | 26 | R-CH-83NYB | $244.00 | X | X | 20 | 4000 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-83PH | $154.00 | S-CH-83PT | $206.00 | 26 | R-CH-83PH | $89.00 | R-CH-83PT | $143.00 | 20 | 3000 |
Poly-Soft®High performance liquid
cast 85A polyurethane
bonded to heavy duty iron center. | S-CH-83SPB | $204.00 | S-CH-83SPT | $243.00 | 36 | R-CH-83SPB | $138.00 | R-CH-83SPT | $180.00 | 30 | 2000 |
Super Ultralast® New ultimate urethane
1" thick on forged steel center. | S-CH-83STRB | $502.00 | S-CH-83STRT | $509.00 | 39 | R-CH-83STRB | $437.00 | R-CH-83STRT | $446.00 | 32 | 4000 |
Superlast® 1" thick 95A polyurethane tread chemically bonded to forged steel center. | S-CH-83SYH | $304.00 | S-CH-83SYT | $346.00 | 39 | R-CH-83SYH | $239.00 | R-CH-83SYT | $283.00 | 32 | 3500 |
Swivel-EAZ®Twin wheel liquid cast polyurethane
on aluminum core. | S-CH-83SWF | $281.00 | X | X | 26 | R-CH-83SWF | $220.00 | X | X | 20 | 4960 |
Ultralast®New ultimate urethane
best in rollability & minimizing heat buildup
ideal for continuous operation at high speeds. | S-CH-83TRB | $333.00 | S-CH-83TRT | $350.00 | 39 | R-CH-83TRB | $267.00 | R-CH-83TRT | $287.00 | 32 | 3000 |
| 10 | 2 1/2 | Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-10DB | $201.00 | S-CH-10DT | $254.00 | 33 | R-CH-10DB | $138.00 | R-CH-10DT | $190.00 | 27 | 2500 | 12 1/2 | 2 1/2 |
MetalHeavy duty cast iron. | S-CH-10MH | $178.00 | S-CH-10MT | $234.00 | 36 | R-CH-10MH | $115.00 | R-CH-10MT | $170.00 | 30 | 2500 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-10PH | $142.00 | S-CH-10PT | $197.00 | 26 | R-CH-10PH | $80.00 | R-CH-10PT | $133.00 | 20 | 2500 |
| 3 | Duralast XC®A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®. | S-CH-13DB70 | $241.00 | S-CH-13DT70 | $292.00 | 39 | R-CH-13DB70 | $178.00 | R-CH-13DT70 | $228.00 | 34 | 3900 |
Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-13DB | $211.00 | S-CH-13DT | $266.00 | 40 | R-CH-13DB | $148.00 | R-CH-13DT | $202.00 | 34 | 3000 |
Forged SteelHighest capacity drop forged steel
tensile strength in the 75,000 psi range. | S-CH-13FSB | $293.00 | S-CH-13FST | $337.00 | 49 | R-CH-13FSB | $230.00 | R-CH-13FST | $273.00 | 43 | 4000 |
MetalHeavy duty cast iron. | S-CH-13MH | $181.00 | S-CH-13MT | $235.00 | 36 | R-CH-13MH | $118.00 | R-CH-13MT | $170.00 | 31 | 2600 |
Moldon Rubber1500 psi 70A Rubber
vulcanized to heavy duty
cast iron center. | S-CH-13RH | $178.00 | S-CH-13RT | $252.00 | 34 | R-CH-13RH | $115.00 | R-CH-13RT | $188.00 | 28 | 1000 |
Nylast®Solid high capacity cast nylon resistant to moisture & many chemicals. | S-CH-13NYB | $377.00 | X | X | 30 | R-CH-13NYB | $315.00 | X | X | 25 | 3500 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-13PH | $150.00 | S-CH-13PT | $207.00 | 28 | R-CH-13PH | $87.00 | R-CH-13PT | $143.00 | 22 | 2900 |
Poly-Soft®High performance liquid
cast 85A polyurethane
bonded to heavy duty iron center. | S-CH-13SPB | $226.00 | S-CH-13SPT | $272.00 | 40 | R-CH-13SPB | $164.00 | R-CH-13SPT | $208.00 | 34 | 2400 |
Swivel-EAZ®Twin wheel liquid cast polyurethane
on aluminum core. | S-CH-13SWF | $383.00 | X | X | 30 | R-CH-13SWF | $324.00 | X | X | 24 | 5900 |
Ultralast®New ultimate urethane
best in rollability & minimizing heat buildup
ideal for continuous operation at high speeds. | S-CH-13TRB | $381.00 | S-CH-13TRT | $419.00 | 39 | R-CH-13TRB | $318.00 | R-CH-13TRT | $355.00 | 34 | 3600 |
| 12 | 3 | Duralast XC®A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®. | S-CH-12DB70 | $311.00 | S-CH-12DT70 | $362.00 | 59 | R-CH-12DB70 | $245.00 | R-CH-12DT70 | $299.00 | 54 | 4000 | 15 1/2 | 2 1/2 |
Duralast®Hamilton's classic liquid
cast 95A polyurethane tread
bonded to heavy duty iron center. | S-CH-12DB | $289.00 | S-CH-12DT | $331.00 | 59 | R-CH-12DB | $224.00 | R-CH-12DT | $267.00 | 54 | 3500 |
MetalHeavy duty cast iron. | S-CH-12MH | $205.00 | S-CH-12MT | $256.00 | 47 | R-CH-12MH | $140.00 | R-CH-12MT | $193.00 | 42 | 2500 |
PlastexFiber-reinforced
phenolic resin wheel. | S-CH-12PH | $162.00 | S-CH-12PT | $217.00 | 33 | R-CH-12PH | $97.00 | R-CH-12PT | $153.00 | 27 | 3500 |
Poly-Soft®High performance liquid
cast 85A polyurethane
bonded to heavy duty iron center. | S-CH-12SPB | $302.00 | S-CH-12SPT | $330.00 | 59 | R-CH-12SPB | $237.00 | R-CH-12SPT | $266.00 | 54 | 2800 |
Ultralast®New ultimate urethane
best in rollability & minimizing heat buildup
ideal for continuous operation at high speeds. | S-CH-12TRB | $431.00 | S-CH-12TRT | $458.00 | 59 | R-CH-12TRB | $365.00 | R-CH-12TRT | $397.00 | 54 | 4000 |
