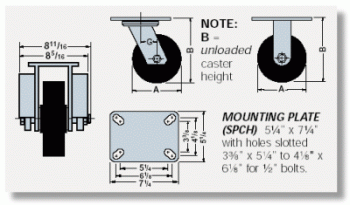

|  Stock Photo Shown - specified caster may differ in appearance based on wheel type and options selected.
To receive CAD Model of this part, please contact Customer Support: 1-800-733-7655 or click "Submit CAD Request" |
| Specifications: | | Bearing Type: Ball | | Bolt Hole 1: 3 3/8 x 5 1/4 | | Bolt Hole 2: 4 1/8 x 6 1/8 | | Bolt Size: 0.5 | | Caster Rig Type: Spring Loaded | | Wheel Diameter: 6 | | Wheel Face: 3 | | Max. Capacity 1: 1630 | | Min. Capacity 1: 270 | | Overall Height: 11.25 | | Replacement Wheel: W-630-DB-3/4 | | Swivel Offset "G": 2.5 | | Top Plate: 5 1/4 x 7 1/4 | | Weight (lbs.): 39 lbs | | Wheel Type: Duralast® |
|
| Type: Duralast®Material: PolyurethaneRolling Ease: MediumRelative Capacity: HighQuiet Operations: YesFloor Protection: YesCushioning (Resilience): MediumImpact Resistance: MediumMoisture Resistance: MediumAbrasion Resistance: HighRelative Cost: MediumLow Temperature Range: -50High Temperature Range: 200 |
| Model #:Wheel Type Selected:  R-SPCH-63DB-2 Availability:
Ships in 2-3 weeks Short Description:
RIGID SPRING LOADED CH 6X3 DURALAST Long Description:
Hamilton Spring Loaded Champion Rigid Caster with 6" x 3" Duralast® Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings |
| | | | MSRP Price: (not incl. options) $315.18 EA |
| | | | | | | | |
|
| |
|
|
