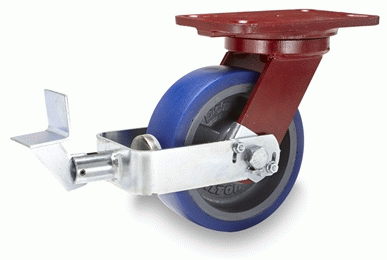

 Stock Photo Shown - specified caster may differ in appearance based on wheel type and options selected.
To receive CAD Model of this part, please contact Customer Support: 1-800-733-7655 or click "Submit CAD Request" |
| Specifications: | | Bearing Type: Roller | Holes E x F: 3 7/8 x 5 3/4
slotted to
5 1/8 x 6 1/4 | | Bolt Hole 1: 3 7/8 x 5 3/4 | | Bolt Hole 2: 5 1/8 x 6 1/4 | | Bolt Size: .5 | | Caster Rig Type: Forged Steel | | Wheel Diameter: 6 | | Face at "K": 3 | | Groove Width: 1.375 | | Load Capacity (lbs.): 4500 | | Overall Height: 8.5 | | Replacement Wheel: W-630-FVH-1-1/2 | | Top Plate: 6 1/2 x 7 1/2 | | Weight (lbs.): 29 lbs | | Wheel Type: V-Grooved |
|
| Type: V-GroovedRolling Ease: HighRelative Capacity: HighQuiet Operations: NoFloor Protection: PoorCushioning (Resilience): LowImpact Resistance: HighMoisture Resistance: HighAbrasion Resistance: HighRelative Cost: MediumLow Temperature Range: -30High Temperature Range: 600Chemical Resistant: Medium |
| Model #:Wheel Type Selected:  R-EPSD-63FVH Availability:
Ships in 24-48 hours Short Description:
RIGID CASTER EPSD 6X3 V-GROOVED Long Description:
Hamilton Enhanced Precision Super Duty Rigid Caster with 6" x 3" Forged Steel V-Grooved Wheel with 1 1/2" Straight Roller Bearing |
| | | | MSRP Price: (not incl. options) $184.56 EA |
| | | | | | | |
