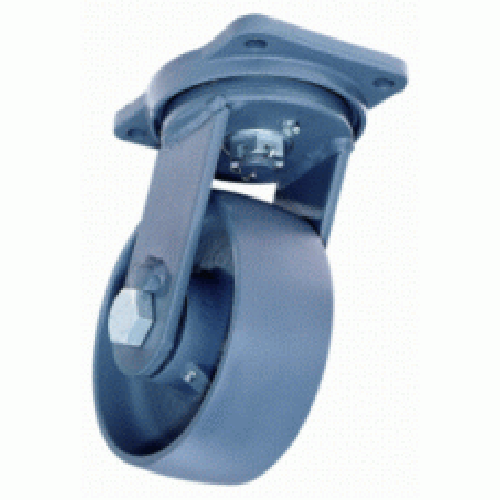

 Stock Photo Shown - specified caster may differ in appearance based on wheel type and options selected.
To receive CAD Model of this part, please contact Customer Support: 1-800-733-7655 or click "Submit CAD Request" |
| Specifications: | | Bearing Type: Tapered | | Bolt Hole 1: 4 1/8 x 6 1/8 | | Bolt Size: 0.5 | | Caster Rig Type: Forged Steel | | Swivel or Rigid caster: Swivel | | Wheel Diameter: 10 | | Features: 1HT | | Note: Load capacity rating is conservatively based on 2500 hours of wheel bearing life at 2 mph. | | Load Capacity (lbs.): 5000 | | Overall Height: 12.5 | | Replacement Wheel: W-1030-FST-1 | | Swivel Offset "G": 2.25 | | Mounting Plate: 6 1/8 x 7 1/2 | | Mounting Plate Length: 7.5 | | Mounting Plate Width: 5.5 | | Weight (lbs.): 53 lbs | | Wheel Face: 3 | | Wheel Type: Forged Steel |
|
| Type: Forged SteelMaterial: Forged SteelRolling Ease: Very HighRelative Capacity: Very HighQuiet Operations: NoFloor Protection: PoorCushioning (Resilience): LowImpact Resistance: HighMoisture Resistance: HighAbrasion Resistance: Very HighRelative Cost: HighLow Temperature Range: -30High Temperature Range: 600 |
|
Model #:Wheel Type Selected:  S-PSD-10FS Availability:
Ships in 24-48 hours Short Description:
SWIVEL CASTER PSD 10X3 FORGED STEEL Long Description:
Hamilton Precision Super Duty Swivel Caster with 10" x 3" Forged Steel Wheel with 1" Precision Tapered Roller Bearings |
|
| |
MSRP Price: (not incl. options) $430.02 EA | MSRP price intended for small qty convenience buys. Better pricing available for large volume purchases. Contact a Hamilton Distributor in your area or consult with factory. |
|
|
| |
|
| |
