 HM52-B
See chart below
|
|
Shown with 8" Ace-Tuf® Rubber-tired wheels.
|
HM44-E
See chart below
|
HM44-S
|
|
|
|
HM44-K
|
|
|
|
|
|
|
HM53-K
|
|
|
|
|
|
|
Select:
HM53-K-8AT
--Ace-Tuf Wheels
HM53-K-10PR
--Pneumatic tires
|
|
HM52-B:
|
|
|

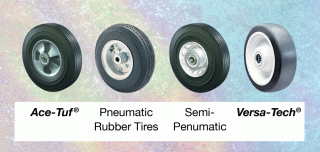

SELECTION SUFFIX
|
|
Ace-Tuf
|
Pneumatic
|
Semi-Pneumatic
|
Versa-Tech
|
|
8 x 2.5
|
10 x 2.75
|
10 x 4.10-4
|
6 x 2.00
|
6 x 2
|
8 x 2
|
|
-8AT
|
-10AT
|
-10PR
|
-6SP
|
-6TE
|
-8TE
|
|
|
Appliance Truck
| HM69 | | More information below. |
|
|
|
|
HM44-E:
|
|
SELECTION SUFFIX
|
|
Ace-Tuf
|
Pneumatic
|
Semi-Pneumatic
|
Versa-Tech
|
|
8 x 2.5
|
10 x 2.75
|
10 x 4.10-4
|
6 x 2.00
|
6 x 2
|
8 x 2
|
|
-8AT
|
-10AT
|
-10PR
|
-6SP
|
-6TE
|
-8TE
|
|
|
|
|
|
Two Wheel Hand Trucks
|
|
|
Designed for proper balance and rigidly welded of high alloy steel tubing, Lite-NTuf® all-welded steel hand trucks embody Hamilton quality at a competitive price. Steel frames of 1a" O.D. high yield tubing, red enamel finish (yellow on HM44-K and HM53-K), and vinyl handle grips are standard features on these models.
|
HM44-K
is the widest model available and is furnished standard with 6" x 2" Versa-Tech® wheels. HM53-K features 8" x 2.50 Ace-Tuf® ball bearing wheels, and a 65" tall frame ideal for carrying bread racks or other bulky high loads.
|
|
|
Stocked for PRONTO shipment.
|
|
HM52-B and HM44-E hand trucks feature solid bar steel curb skids, beveled nose Pneumatic Rubber Tires edges, strong "back-up" nose design, and extra large stair skids. The non-rotatable "D" axle (see detail) can be moved from one position to another without tools to accommodate 6", 8" or 10" diameter wheels. Choice of wheels listed below.
|
|
SPECIFICATIONS
|
|
Model #
|
HM44-E
|
HM44-K
|
HM44-S
|
HM52-B
|
HM53-K
|
|
Height
|
46
|
48
|
46
|
46
|
65
|
|
Frame Width
|
15
|
18 1/4
|
15
|
15
|
15
|
|
Overall Width
|
20 5/8
|
24
|
20 5/8
|
21
|
21
|
|
Nose depth
|
8
|
6 3/4
|
8
|
8
|
9
|
|
Capacity Lbs.
|
500
|
500
|
500
|
500
|
500
|
|
Weight Lbs.
|
30
|
35
|
30
|
35
|
40
|
|
|
|
Non-Rotatable “D” Axle in HM52-B and HM44-E. Adjustable to 3 wheel diameters. Zinc-plated finish resists rust and corrosion.
|
|
|
|
|
|
|
Appliance Truck (HM69)
|
|
Lightweight—only 50 lbs.—but ruggedly constructed of welded steel tubing. Built to handle refrigerators, freezers, stoves, TV’s, store fixtures and furniture of all kinds. Ratchet securely tightens 124" long web belt. Stair climbers are roller bearing, “crawler” type. Load contact surfaces fully padded. Vulcalite non-marking rubber-tired wheels 6" x 2" with roller bearings and lube fittings.
|
|
Overall height: 60"
Frame width: 16"
Nose width: 24"
Nose depth: 5"
|
Axle diameter: 5/8"
Finish: Red Enamel
Capacity: 800 lbs.
|
|
|
|
|
|
|
