Platform Trucks - PB1106, PB1108, PB1112
Cap. to 2,000 lbs.

QUALITY FEATURES
• Deck of 1" select hardwood set flush in steel frame.

• Frame of 2" x 1 1/2" x 3/16" steel angle.

• Roller bearings and lube fittings in all wheels.

• Casters bolted too" steel angle cross bolsters.

• Removable pipe handle in sockets with set screws.

UNIQUE SPECIFICATIONS
Model PB1106 trucks have 6" x 2" wheels in two swivel and two rigid casters. Platform height 9 3/4".

Model PB1108 trucks have 8" x 2" wheels in two swivel and two rigid casters (except with Pneumatic tires, size 8" x 2.80/2.50-4, 4-ply rated). Platform height 11 3/4"; 13 1/2" with 8" Pneumatics.

Model PB1112 trucks have 12" diameter, 4-ply 4.10/3.50-6 Pneumatic-tired wheels in two swivel and two rigid casters. Platform height 17 1/2".

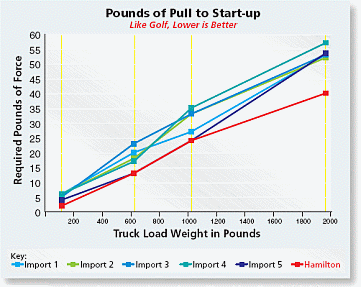

This chart shows how much easier rolling Hamilton’s Moldon Rubber tires are vs. five import wheels we tested. The tensile strength of Hamilton moldon rubber is over 1,000 lbs. vs. competitor wheels which are typically around 500 lbs.

PB1106-A

6" x 2" wheels all around.

PB1108-H
Most popular model rolls on 8" x 2" wheels. 25% less force to move cart (see graph).

PB1112-I
12" Pneumatic tires for 2,000 lbs. capacity.

WHEEL CHOICES

Fiber-reinforced phenolic resin wheel.

Liquid cast 80A polyurethane donut tread bonded to aluminum core.

1500 psi 70A Rubber vulcanized to heavy duty cast iron center.

To order or see more detail, click on suffix corresponding to desired wheel type & deck size.

= available for 24 Hour PRONTO^® shipment

View
Printer Friendly
PDF Version

PB1106 Selection Table

Dimensions in inches
Platform Size Inches	Model Number	SELECTION SUFFIX			Approx. Weight Lbs.
Platform Size Inches	Model Number	Moldon Rubber	Plastex	Polylast	Approx. Weight Lbs.
24 x 48	PB1106-A	-R2448	-P2448	-AY2448	160
30 x 48	PB1106-A	-R3048	-P3048	-AY3048	170
30 x 60	PB1106-A	-R3060	-P3060	-AY3060	185
36 x 60	PB1106-A	-R3660	-P3660	-AY3660	205
36 x 72	PB1106-A	-R3672	-P3672	-AY3672	225

PB1108 Selection Table

Dimensions in inches
Platform Size Inches	Model Number	SELECTION SUFFIX				Approx. Weight Lbs.
Platform Size Inches	Model Number	Moldon Rubber	Plastex	Pneumatic Tires	Polylast	Approx. Weight Lbs.
24 x 48	PB1108-A	-R2448	-P2448	-PR2448	-AY2448	160
30 x 48	PB1108-A	-R3048	-P3048	-PR3048	-AY3048	170
30 x 60	PB1108-A	-R3060	-P3060	-PR3060	-AY3060	185
36 x 60	PB1108-A	-R3660	-P3660	-PR3660	-AY3660	205
36 x 72	PB1108-A	-R3672	-P3672	-PR3672	-AY3672	225

PB1112 Selection Table

Dimensions in inches
Platform Size Inches	Model Number	SELECTION SUFFIX	Approx. Weight Lbs.
Platform Size Inches	Model Number	Pneumatic Tires	Approx. Weight Lbs.
24 x 48	PB1112-I	-PR2448	160
30 x 48	PB1112-I	-PR3048	170
30 x 60	PB1112-I	-PR3060	200
36 x 60	PB1112-I	-PR3660	225
36 x 72	PB1112-I	-PR3672	225
