Semi-Live Skid System - LJ700 - SB715
Cap. to 2,500 lbs.






QUALITY FEATURES: SB715
• Flush 1" select hardwood deck in 3/16" steel angle frame.

• Integrally welded steel front leg assembly and rear wheel assembly.

• Choice of 8" x 2" or 8" x 2 1/2" wheels having roller bearings and lube fittings.

• Platform height 12 1/2".

• Capacity 1,500 lbs. with 8" x 2" Moldon Rubber wheels to 2,500 lbs. with 8" x 2 1/2" Metal or Plastex wheels.


QUALITY FEATURES: LJ700
• Steel pipe handle welded to hook and axle housing (designed only for use with Model SB715 or SM720 Skid Trucks).

• Comfortable vinyl handle grips.

• Maintenance-free; no springs or troublesome parts.

• Stands upright when not in use.

• Specify with 8" x 2" or 8" x 2 1/2" wheels to match size and type on skid trucks.

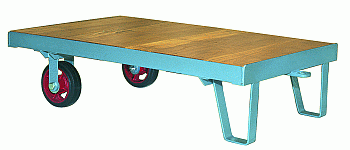

SB715
Select hardwood deck in steel frame.




LJ700 Lift Jack
8" x 2" or 8" x 2 1/2" wheels.
WHEEL CHOICES
Heavy duty cast iron.1500 psi 70A Rubber vulcanized to heavy duty cast iron center.Fiber-reinforced phenolic resin wheel.

To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
Lift Jack Selection Table
Dimensions in inches
Wheel SizeSELECTION SUFFIXApprox.
Weight
Lbs.
MetalMoldon
Rubber		Plastex
8" x 2 1/2"LJ700-85MLJ700-85RLJ700-85P35
8" x 2"LJ700-8MLJ700-8RLJ700-8P30

Skid Selection Table
Dimensions in inches
Platform
Size
Inches		Model
Number		SELECTION SUFFIX
8" x 2"		SELECTION SUFFIX
8" x 2 1/2"		Approx.
Weight
Lbs.
MetalMoldon
Rubber		PlastexMetalMoldon
Rubber		Plastex
24 x 48SB715-8M2448-8R2448-8P2448-85M2448-85R2448-85P2448100
30 x 48SB715-8M3048-8R3048-8P3048-85M3048-85R3048-85P3048110
30 x 60SB715-8M3060-8R3060-8P3060-85M3060-85R3060-85P3060125
36 x 60SB715-8M3660-8R3660-8P3660-85M3660-85R3660-85P3660150
36 x 72SB715-8M3672-8R3672-8P3672-85M3672-85R3672-85P3672165
