Caster-Steer Trailers - Series CA1300 - CA1108
|
|
Cap. 2,000 to 4,000 lbs.
|
|
|
 |
|

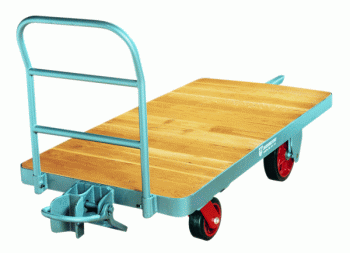

CA1300
|
QUALITY FEATURES
• Standard deck sizes: widths 30", 36", 42" or 48"; lengths 60", 72", 84", or 96". Special sizes available to suit.
• Standard running gears: 2,000 lbs. capacity
–Moldon Rubber wheels 12" x 3" on 1" dia. axle, swivel caster wheels 8" x 2", platform height 14". 3,000 lbs. capacity–Moldon Rubber wheels 12" x 3" on a 1 1/4" dia. axle, swivel caster wheels 8" x 3", platform height 15 3/4". 4,000 lbs. capacity–Moldon Rubber wheels 12" x 3 1/2" on a 1 1/4" dia. axle, swivel caster wheels 10" x 3", platform height 15 3/4".
• Swivel casters drop-forged steel (80,000 psi tensile strength) with integrally forged kingpin, precision tapered thrust bearing and hardened ball raceways, unless otherwise specified.
• Casters bolted to structural steel cross bolsters.
• All corners mitered.
• Standard with one pipe rack 26" high above deck, and channel-reinforced external pipe sockets at swivel caster end. Additional rack(s), side sockets on request.
• Precision Ball or Tapered bearings in all wheels.
• Hardwood decks sanded and varnished; steelwork enameled Hammertone Blue (or Safety Orange if specified).
|
UNIQUE SPECIFICATIONS
CA1300 Wood deck: 1" select hardwood set flush in 3" x 2" x 1/4" steel angle frame with two 2" x 2" x 1/4" center longitudinals.
CA1310 All steel: 12 ga. deck welded to 3" channel frame and center longitudinal.
CA1320 Wood deck: 1" select hardwood set flush in 2" x 2" x 3/16" steel angle frame with full length 1" x 1" x 3/16" center angle.
CA1330 All steel: 12 ga. deck welded to 2" channel frame and center longitudinal.
Models CA1320 and CA1330 are designed for up to 2,000 lbs. capacity.
CA1108 Wood deck: 1" select hardwood set flush in 2" x 1 1/2" xo" steel angle frame. All wheels 8" x 2" with precision ball bearings. Series WH casters bolted to 3/16" steel angle cross bolsters. Removable pipe handle in sockets with set screws. All wheels 8" x 2". Platform height 11 3/4". |
|
|
| Capacity 3,000 to 4,000 lbs. |
| Steel Frame, hardwood deck. |

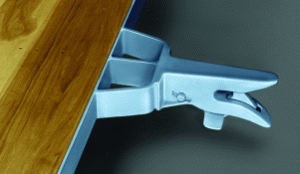

| Heavy Duty Couplers |
|
 |

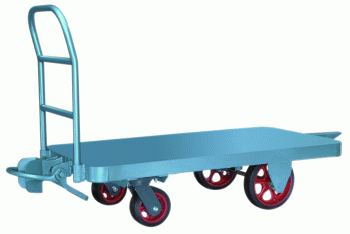

| CA1310 |
| Capacity 3,000 to 4,000 lbs. |
| All steel construction. |
| Heavy duty couplers. |
|
 |

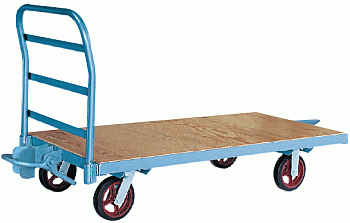

| CA1108 |
| Capacity 2,000 lbs. |
| Steel frame, hardwood deck. |
| Some models PRONTO. |
|
 |
|
For on CA1300 and CA1310 Consult Factory for Purchasing Information. For CA1108, see grid below for purchasing.
|
| When requesting quotation please advise, Quantity, Capacity, Deck size and type (wood, steel, safety plate), Wheel type (Moldon Rubber, Polyurethane, etc.), Number and location of pipe racks/sockets, Coupler type (automatic or manual). |
| |
|
|
