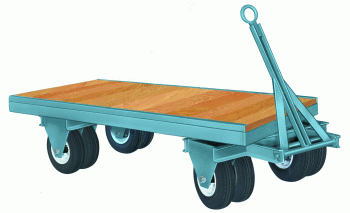

FW4345: 1 1/2" hardwood set flush in steel frame. Trailers have choice of single or double Moldon Rubber wheels, single Duralast, dual Pneumatics, and dual Solid Pneumatics. Dual Pneumatics pictured.

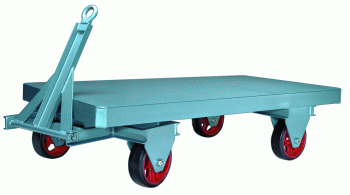

FM4350: 3/16" smooth steel deck painted Hammertone blue. Trailers have choice of single or double Moldon Rubber wheels, single Duralast, dual Pneumatics, and dual Solid Pneumatics. Single Moldon Rubber pictured.
QUALITY FEATURES -- Design: Engineered for power towing. Drop forged loop handle standard. 14" square fifth wheel, features low friction wear pad and 1 1/4" precision thrust bearing.-- Wheel Bearings: 1 1/4" tapered roller bearings with lube fittings on 1 1/4" diameter axle.-- Casters & Capacity: 6,000 lbs. capacity with single Moldon Rubber Wheels, 9,000 lbs capacity with dual Pneumatics, and 10,000 lbs. capacity with single Duralast, dual Moldon Rubber wheels, or Solid Pneumatic tires.
FW4345 has 1 1/2" select hardwood deck with flush steel hold-down angles fastened to steel channel frame with countersunk bolts. Deck height 21 1/2" with 12" dia. wheels; 25 1/4" with Pneumatic-tired wheels.FM4350 has smooth 3/16" steel deck welded to reinforced steel channel. Deck height 20 1/4" with 12" dia. wheels; 24 with Pneumatic-tired wheels.

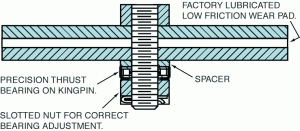

Fifth Wheel Construction
