Fifth-Wheel-Steer Trailers
FW4365, FM4370 - Cap. to 5,000 lbs.

Â

FW4365: Trucks have choice of 12" or 16" diameter wheels. Platform height: 19" with 12" wheels; 24" with 16" wheels. 1" hardwood deck.
Â

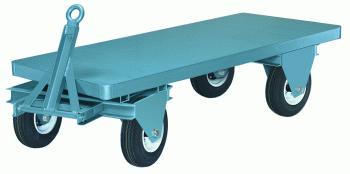

FM4370: 12 Gauge steel deck painted Hammertone blue. Trucks have choice of 12" or 16" diameter wheels. Platform height: 19" with 12" wheels; 24" with 16" wheels.

QUALITY FEATURES
-- Design: Engineered for power towing. Drop forged loop handle standard. 14" square fifth wheel, features low friction wear pad and 1 1/4" precision thrust bearing.
-- Wheel Bearings: Precision tapered roller bearings standard in all wheels.
-- Casters:ÂChoice of 12" or 16" diameter wheels rolling on 1" steel axles

FW4365 has 1" hardwood deck set flush in 1/4" steel angle frame with reinforcing steel center longitudinal.
FM4370 has smooth 12 gauge steel deck welded to steel channel frame and reinforcing steel center longitudinal.

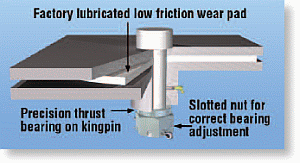

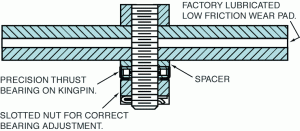

Fifth Wheel Construction

Wheel Choices
Liquid cast 95A polyurethane tread chemically bonded to heavy duty iron center.1500 psi 70A Rubber vulcanized to heavy duty cast iron center.High performance liquid cast 85A polyurethane bonded to heavy duty iron center.
To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
FW4365:
Dimensions in inches
Platform
Size
Inches		Catalog
Number		SELECTION SUFFIX
Wheels 12" dia., deck height 19"		SELECTION SUFFIX
Wheels 16" dia., deck height 24"		Approx.
Weight
(lbs.)
Moldon Rubber 12DuralastPoly-SoftMoldon Rubber 16Pneumatic Tires
36 x 60FW4365-12RT3660-DT3660-SPT3660-16RT3660-PRT3660360
36 x 72FW4365-12RT3672-DT3672-SPT3672-16RT3672-PRT3672375
36 x 84FW4365-12RT3684-DT3684-SPT3684-16RT3684-PRT3684390
36 x 96FW4365-12RT3696-DT3696-SPT3696-16RT3696-PRT3696405
42 x 84FW4365-12RT4284-DT4284-SPT4284-16RT4284-PRT4284420
42 x 96FW4365-12RT4296-DT4296-SPT4296-16RT4296-PRT4296450
48 x 84FW4365-12RT4884-DT4884-SPT4884-16RT4884-PRT4884450
48 x 96FW4365-12RT4896-DT4896-SPT4896-16RT4896-PRT4896480

FM4370:
Dimensions in inches
Platform
Size
Inches		Catalog
Number		SELECTION SUFFIX
Wheels 12" dia., deck height 19"		SELECTION SUFFIX
Wheels 16" dia., deck height 24"		Approx.
Weight
(lbs.)
Moldon Rubber 12DuralastPoly-SoftMoldon Rubber 16Pneumatic Tires
36 x 60FM4370-12RT3660-DT3660-SPT3660-16RT3660-PRT3660360
36 x 72FM4370-12RT3672-DT3672-SPT3672-16RT3672-PRT3672375
36 x 84FM4370-12RT3684-DT3684-SPT3684-16RT3684-PRT3684390
36 x 96FM4370-12RT3696-DT3696-SPT3696-16RT3696-PRT3696405
42 x 84FM4370-12RT4284-DT4284-SPT4284-16RT4284-PRT4284420
42 x 96FM4370-12RT4296-DT4296-SPT4296-16RT4296-PRT4296450
48 x 84FM4370-12RT4884-DT4884-SPT4884-16RT4884-PRT4884450
48 x 96FM4370-12RT4896-DT4896-SPT4896-16RT4896-PRT4896480
