Double Flanged Track Wheels

Capacity Range: 2000 - 18,000 lbs.

  • Tapered Roller Bearings
Best for most severe heavy duty and power-towed applications.
  • Straight Roller Bearings
Traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
  • Heat Treating
Reduces wear in power-towed applications.
  • Keyways
With or without set screws for locking wheels on shaft.
  • Special Hub Length
Hubs can be cut to provide shorter length, "filler" washings furnished for greater length.

Hamilton offers the most comprehensive line of industrial flanged track wheels available. The grid below features our single flange steel wheels. Many industries are discovering that flanged wheels running on in-plant tracks give them an "instant production line." Loads are taken off the floor permitting higher capacities, easier rolling, floor protection and controlled flow all at the same time.

Most wheels are cast iron except as noted, and furnished with either plain bore, straight roller bearings, or precision tapered roller bearings.

For custom Flanged Wheels complete our custom worksheet here

All wheels are standard with face and flange CNC-machine finished, except WFT-82 which has a hardened "as cast" tread.

Heat treating is available for applications requiring better wear resistance, or involving higher capacities.

Hamilton can custom design and manufacture flanged wheels in most sizes from ductile iron, steel, bronze, stainless steel, nylon, or other materials in English or metric dimensions.

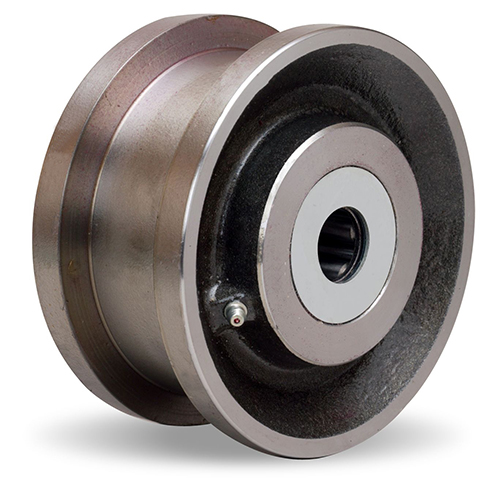

Double-Flanged-Track-Wheel
WFT-53FH-1
Double Flanged Track










Double Flanged Track Series Selection Table
Dimensions in inches
Wheel
Exclude Flg.
Dia.
A
Exclude Flg.
Face
S
Include Flg.
Dia.
P
Include Flg.
Face
K
Lgth.
H
Dia.
M
Dia.
N
Dim.
R
Wt.
Lbs.
42 1/453 1/43 1/2
51 11/16633 1/23 3/83 3/81/819
62 1/87 5/1633 1/2331/824
82 1/493 1/43 1/2
91 1/4101 15/162 1/22 1/22 1/21/3219
9 1/41 1/210 7/162 1/23 1/42 3/42 3/43/828
1031255 1/40120
122 7/8144 1/44 1/2
Load
Capacity
Lbs.
Cored
Hole
Base
Number
Min.
Bore
Max.
Bore
50001 7/16WFT-53FL-1 3/42 7/16
2500SolidWFT-62L-12 1/2
25001 1/4WFT-91L-1 3/81 15/16
28001 1/4WFT-92L-1 3/82 1/4
18000SolidWFT-102SDL-2 7/166
Load
Capacity
Lbs.
Base
Number
Bearing
Sizes
3000WFT-42FH-
1-1/4---
5000WFT-53FH-
1-1/4---
2500WFT-62H-
3/4---
8000WFT-82FH-
1-1/4---
2500WFT-91H-
3/4---
2800WFT-92H-
1-1/4---
---
---
Load
Capacity
Lbs.
Base
Number
Bearing
Sizes
3000WFT-42FT-
3/41--
4200WFT-53FT-
3/411-1/4-
2500WFT-62T-
3/411-1/4-
8000WFT-82FT-
3/411-1/4-
2500WFT-91T-
3/41--
2800WFT-92T-
3/411-1/4-
18000WFT-102SDT-
1-1/41-1/21-3/42
15000WFT-122FT-
1-1/41-1/21-3/42
