Spinfinity Maintenance-Free | Series ZFWH

Capacity Range: 600 - 2500 lbs.

  • Swivel Construction
Forged steel top plate and fork base; 1/4" x 2" plate steel legs welded inside and outside to forged steel horn base.
  • Main Load Bearing
2 9/16" diameter hardened and CNC-machined raceway with 3/8" balls.
  • Sealed Swivel Construction
The forged ring is cnc-machined with a precision groove to accept a large seal made from Nitrile butadiene rubber(NBR) designed to keep grease in and contaminants out.
  • Axle
1/2" diameter hex head with lock nut.
  • Brakes
- Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available. Select desired caster from selection table to see brake details.
  • Swivel Lock
- 4 Position (-4SL) convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.
  • Custom Engineering
- Hamilton engineers will custom design any caster to meet customer requirements.

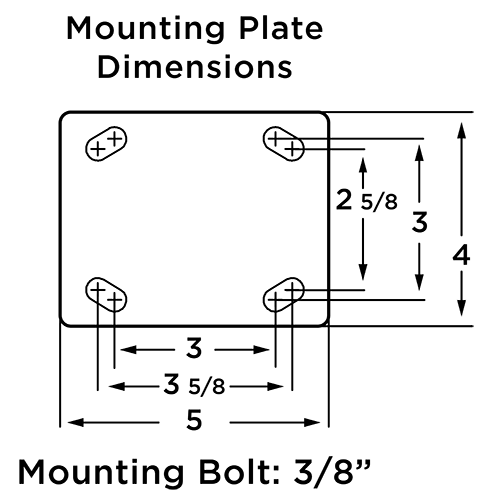

The new Zero Fix Spinfinity™ Series casters represent a new class of the “best of breed” kingpinless design. The ZFWH Series represents Hamilton's answer to our customers asking for a highly durable maintenance-free kingpinless caster with the industry's most popular 4" x 5" mounting plate.

The top plate and inner raceway are forged steel formed from one piece, providing a superior raceway for shock conditions. Once formed, the raceways are CNC-machined and then hardened to ensure a uniform depth in hardness of the swivel raceway. The hardening and the CNC-machining together produce an excellent swiveling caster under extreme loads.

All ZFWH Series casters are finished in red crimson and come standard with a choice of thirteen different wheel types. Bearing selections are exclusive to double sealed precision ball bearings which like the swivel raceway are maintenance-free. Select with confidence knowing all of the casters in the chart below are classified as maintenance-free.
Hamilton Precision and Durability
The Spinfinity Workhorse (ZFWH) is backed by Hamilton’s Three Year Product Warranty. Refer to selection table for qualifying wheels.

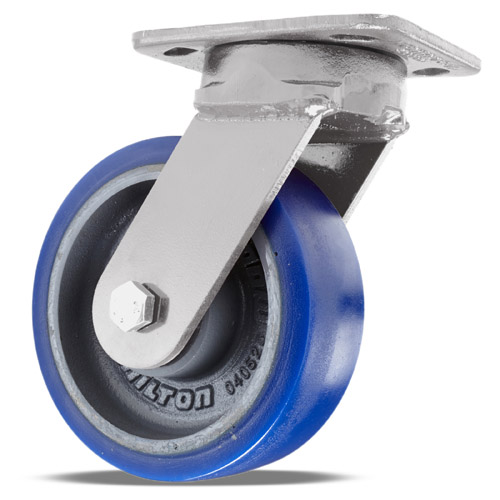

Spinfinity-ZFWH-Kingpinless-Swivel-Caster
#S-ZFWH-6SPB Swivel w/ Ergo-Glide Wheel

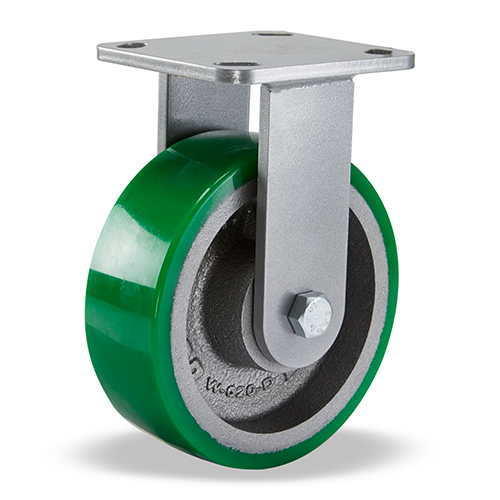

Spinfinity-ZFWH-Kingpinless-Rigid-Caster
#R-ZFWH-6DB Rigid w/ Duralast® Wheels

Wheel Choices
Spinfinity ZFWH Kingpinless Series Selection Table
= available for 24 Hour PRONTO® shipment :Three Year Warranty appliesDimensions in inches
Wheel
DiameterFaceType
42

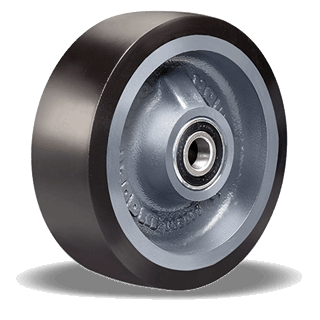

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

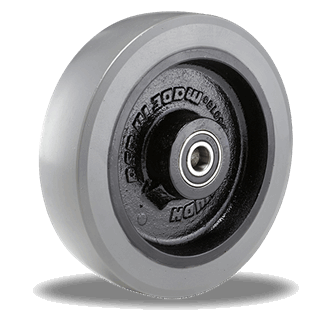

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

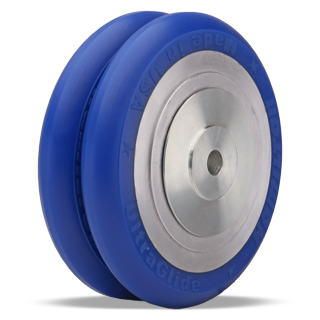

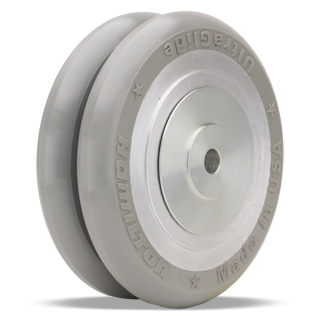

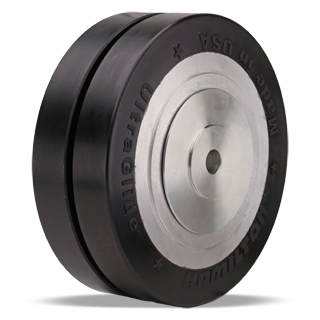

High rollability, liquid cast 87A polyurethane donut tread bonded to aluminum core.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

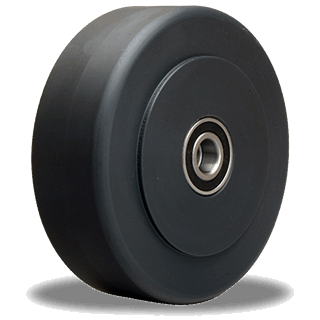

Solid high capacity cast nylon resistant to moisture & many chemicals.

Swivel-EAZ® (75D)

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

Injection molded Nylon 6, water resistant, high impact strength

52

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

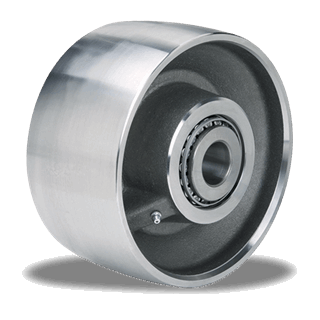

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

Injection molded Nylon 6, water resistant, high impact strength

62

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

High rollability, liquid cast 87A polyurethane donut tread bonded to aluminum core.

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

Swivel-EAZ® (75D)

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

Injection molded Nylon 6, water resistant, high impact strength

82

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

High rollability, liquid cast 87A polyurethane donut tread bonded to aluminum core.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

Swivel-EAZ® (75D)

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

Injection molded Nylon 6, water resistant, high impact strength

Model Number3 YR.
This ZFWH Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
S-ZFWH-4DB70$144119755 5/8
S-ZFWH-4DB$13210750
S-ZFWH-4SPB$13911600
S-ZFWH-42EMB$1249450
S-ZFWH-4MB$114111000
S-ZFWH-4NYB$175102000
S-ZFWH-4SWC75D$169101100
S-ZFWH-4TRB$17911900
S-ZFWH-4WNB$1118800
S-ZFWH-5DB70$1481113606 1/2
S-ZFWH-5DB$133111050
S-ZFWH-5SPB$14211840
S-ZFWH-5FSB$161142000
S-ZFWH-5MB$118121300
S-ZFWH-5NYB$186112000
S-ZFWH-5TRB$203111250
S-ZFWH-5WNB$11210900
S-ZFWH-6GB95$1691516207 1/2
S-ZFWH-6DB70$152151560
S-ZFWH-6DB$135151200
S-ZFWH-6SPB$14415960
S-ZFWH-6EGB$161151300
S-ZFWH-62EMB$13110800
S-ZFWH-6FSB$157162500
S-ZFWH-6MB$121141400
S-ZFWH-6NYB$208132300
S-ZFWH-6SWC75D$190142400
S-ZFWH-6TRB$212151400
S-ZFWH-6WNB$114111000
S-ZFWH-8GB95$1921820009 1/2
S-ZFWH-8DB70$169181950
S-ZFWH-8DB$152181500
S-ZFWH-8SPB$160181200
S-ZFWH-8EGB$180181650
S-ZFWH-82EMB$159131000
S-ZFWH-8MB$133191500
S-ZFWH-8NYB$269162500
S-ZFWH-8SWC75D$203172500
S-ZFWH-8TRB$249171800
S-ZFWH-8WNB$126121100
Model Number3 YR.
This ZFWH Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
R-ZFWH-4DB70$7989755 5/8
R-ZFWH-4DB$678750
R-ZFWH-4SPB$748600
R-ZFWH-42EMB$596450
R-ZFWH-4MB$4991000
R-ZFWH-4NYB$11072000
R-ZFWH-4SWC75D$10461100
R-ZFWH-4TRB$1148900
R-ZFWH-4WNB$475800
R-ZFWH-5DB70$84813606 1/2
R-ZFWH-5DB$6981050
R-ZFWH-5SPB$798840
R-ZFWH-5FSB$97122000
R-ZFWH-5MB$5491300
R-ZFWH-5NYB$12282000
R-ZFWH-5TRB$13981250
R-ZFWH-5WNB$486900
R-ZFWH-6GB95$1041216207 1/2
R-ZFWH-6DB70$86131560
R-ZFWH-6DB$70131200
R-ZFWH-6SPB$7912960
R-ZFWH-6EGB$95121300
R-ZFWH-62EMB$668800
R-ZFWH-6FSB$92142500
R-ZFWH-6MB$55121400
R-ZFWH-6NYB$143112300
R-ZFWH-6SWC75D$125122400
R-ZFWH-6TRB$147131400
R-ZFWH-6WNB$4971000
R-ZFWH-8GB95$1271520009 1/2
R-ZFWH-8DB70$104151950
R-ZFWH-8DB$87151500
R-ZFWH-8SPB$95151200
R-ZFWH-8EGB$115151650
R-ZFWH-82EMB$94101000
R-ZFWH-8MB$68161500
R-ZFWH-8NYB$205142500
R-ZFWH-8SWF75D$13882500
R-ZFWH-8TRB$185151800
R-ZFWH-8WNB$6181100
