Super Endurance Kingpinless Casters

Capacity Range: 1800 - 6000 lbs.

  • Swivel Construction
Forged steel top plate and fork base; 3/8" x 3" plate steel legs welded inside and outside to forged steel horn base.
  • Load Bearing
3 5/8" diameter CNC-machined and hardened raceway with 5/8" balls.
  • Axle
3/4" diameter hex head with lock nut.
  • Lubrication Fittings
Ball-check type in swivel assembly and in wheel hubs with tapered or straight roller bearings.
  • Brakes
- Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available. Select desired caster from selection table to see brake details.
  • Swivel Lock
Field Installable - convert swivel to rigid for straight line steering.
  • Sealed Swivel Assembly
(-SS) prolongs caster life in harsh environments.
  • Wheel Bearing Seals
(-DS) prolong wheel life in harsh environments.
  • Custom Engineering
Hamilton engineers will custom design any caster to meet customer requirements.

The Super Endurance™ Series casters represent the “best of breed” kingpinless design for extra heavy-duty applications. The Super Endurance™ represents a super beefed up version of our Spinfinity® Series ZFFM. Like the standard Endurance™ Series, the top plate and inner raceway are forged steel formed from one piece, providing a superior raceway for shock conditions. Once formed, the raceways are CNC-machined and then hardened to ensure a uniform depth in hardness of the swivel raceway. The hardening and the CNC-machining together produce an excellent swiveling caster under extreme loads.

All Super Endurance™ Series casters are finished in gray enamel and come standard with a choice of thirteen different wheel types. Bearing selections include double sealed precision ball bearings, precision tapered bearings, or straight roller bearings. Hamilton Precision and Durability
Hamilton Precision and Durability
Super Endurance Series (SEC)are backed by Hamilton’s Three Year Product Warranty. Refer to selection table for qualifying wheels.

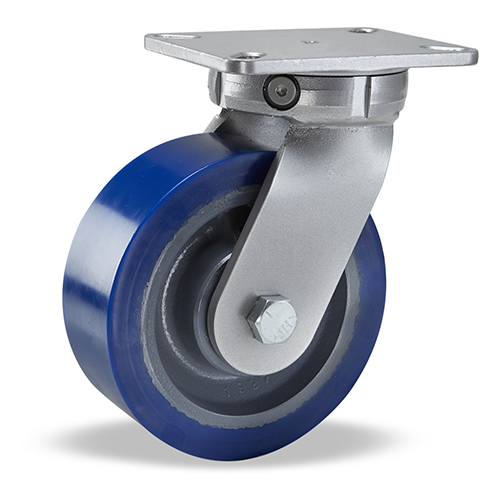

Super-Endurance-Kingpinless-Swivel-Caster
#S-SEC-83SYT Swivel w/ Superlast® Wheel

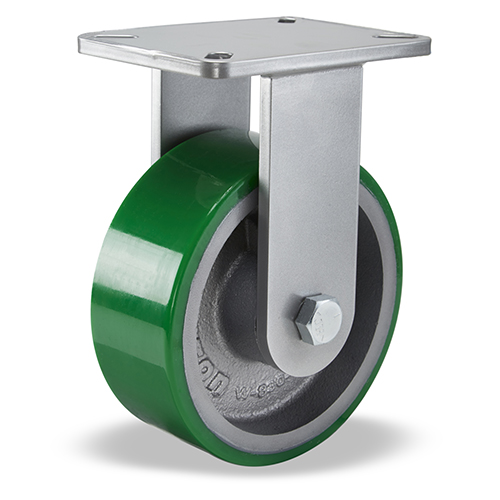

Super-Endurance-Kingpinless-Rigid-Caster
#R-SEC-83DB Swivel w/ Duralast® Wheels

Wheel Choices
Super Endurance Kingpinless Series Selection Table
= available for 24 Hour PRONTO® shipment :Three Year Warranty appliesDimensions in inches
Wheel
DiameterFaceType
63

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

Fiber-reinforced phenolic resin wheel.

Twin wheel liquid cast polyurethane on aluminum core.

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

83

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

Fiber-reinforced phenolic resin wheel.

New Ultimate Urethane 1" thick on forged steel center.

1" thick harder (70D) poly on forged steel for 30% more capacity than Superlast®.

1" thick 95A polyurethane tread chemically bonded to forged steel center.

Twin wheel liquid cast polyurethane on aluminum core.

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

103

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Solid high capacity cast nylon resistant to moisture & many chemicals.

Fiber-reinforced phenolic resin wheel.

Twin wheel liquid cast polyurethane on aluminum core.

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

123

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory..

Fiber-reinforced phenolic resin wheel.

New ultimate urethane best in rollability & minimizing heat buildup ideal for continuous operation at high speeds.

Model No.
Roller/Prec. BB
3 YR.
This Super Endurance Kingpinless Caster is backed by Hamilton's Three Year Product Warranty.
MSRPModel No.
Tapered Brgs.
3 YR.
This Super Endurance Kingpinless Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
S-SEC-63GB95$317 2930008
S-SEC-63DB70$290S-SEC-63DT70$343302860
S-SEC-63DB$275S-SEC-63DT$328292200
S-SEC-63EGB$316 292400
S-SEC-63FSB$358S-SEC-63FST$377366000
S-SEC-63MB $257S-SEC-63MT $308302500
S-SEC-63NYB $350 225400
S-SEC-63PH $243S-SEC-63PT $313222000
S-SEC-63SWF$372 223500
S-SEC-63TRB$373S-SEC-63TRT$434322600
S-SEC-83GB95$363 37340010 1/2
S-SEC-83DB70$333S-SEC-83DT70$373373250
S-SEC-83DB$307S-SEC-83DT$348372500
S-SEC-83EGB$367 372700
S-SEC-83FSB$371S-SEC-83FST$425396000
S-SEC-83MB $268S-SEC-83MT $315382600
S-SEC-83NYB $430 286000
S-SEC-83PH $255S-SEC-83PT $319273000
S-SEC-83STRB$653S-SEC-83STRT$668423500
S-SEC-83SYB70$445S-SEC-83SYT70$512424500
S-SEC-83SYH $429S-SEC-83SYT$469443500
S-SEC-83SWF$409 274960
S-SEC-83TRB$465S-SEC-83TRT$483343000
S-SEC-13GB95$418 41400012 1/2
S-SEC-13DB70$362S-SEC-13DT70$410423900
S-SEC-13DB$325S-SEC-13DT$387413000
S-SEC-13EGB$386 413200
S-SEC-13FSB$418S-SEC-13FST$470506000
S-SEC-13MH $285S-SEC-13MT $351372600
S-SEC-13NYB $506 305000
S-SEC-13PH $251S-SEC-13PT $318302900
S-SEC-13SWF$531 325900
S-SEC-13TRB$521S-SEC-13TRT$565423600
S-SEC-12GB95$473 60470015 1/2
S-SEC-12DB70$446S-SEC-12DT70$502564550
S-SEC-12DB$420S-SEC-12DT$462603500
S-SEC-12EGB$450 603800
S-SEC-12MH $321S-SEC-12MT $379422500
S-SEC-12PH $271S-SEC-12PT $333343500
S-SEC-12TRB$584S-SEC-12TRT$613564200
Model No.
Roller/Prec. BB
3 YR.
This Super Endurance Kingpinless Caster is backed by Hamilton's Three Year Product Warranty.
MSRPModel No.
Tapered Brgs.
3 YR.
This Super Endurance Kingpinless Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
R-SEC-63GB95$168 2230008
R-SEC-63DB70$140R-SEC-63DT70$192242860
R-SEC-63DB$126R-SEC-63DT$177222200
R-SEC-63EGB$166 222400
R-SEC-63FSB$208R-SEC-63FST$227306000
R-SEC-63MB $107R-SEC-63MT $157232500
R-SEC-63NYB $277 165400
R-SEC-63PH $92R-SEC-63PT $158172000
R-SEC-63SWF$222 173500
R-SEC-63TRB$223R-SEC-63TRT$283242600
R-SEC-83GB95$211 30340010 1/2
R-SEC-83DB70$180R-SEC-83DT70$220323250
R-SEC-83DB$154R-SEC-83DT$195302500
R-SEC-83EGB$214 302700
R-SEC-83FSB$218R-SEC-83FST$272336000
R-SEC-83MB $115R-SEC-83MT $163322600
R-SEC-83NYB $277 206000
R-SEC-83PH $101R-SEC-83PT $164203000
R-SEC-83STRB$500R-SEC-83STRT$515363500
R-SEC-83SYB70$293R-SEC-83SYT70$360374500
R-SEC-83SYH $276R-SEC-83SYT$316373500
R-SEC-83SWF$257 204960
R-SEC-83TRB$312R-SEC-83TRT$331323000
R-SEC-13GB95$268 34400012 1/2
R-SEC-13DB70$212R-SEC-13DT70$255363900
R-SEC-13DB$175R-SEC-13DT$232343000
R-SEC-13EGB$236 343200
R-SEC-13FSB$268R-SEC-13FST$314436000
R-SEC-13MH $134R-SEC-13MT $195312600
R-SEC-13NYB $355 245000
R-SEC-13PH $100R-SEC-13PT $163242900
R-SEC-13SWF$380 265900
R-SEC-13TRB$371R-SEC-13TRT$410363600
R-SEC-12GB95$317 54470015 1/2
R-SEC-12DB70$290R-SEC-12DT70$347534550
R-SEC-12DB$265R-SEC-12DT$306533500
R-SEC-12EGB$294 543800
R-SEC-12MH $165R-SEC-12MT $223382500
R-SEC-12PH $115R-SEC-12PT $178273500
R-SEC-12TRB$429R-SEC-12TRT$458544200
