Dual Pneumatic Casters

Capacity Range: 660 - 7400 lbs.

  • Swivel Construction
All models have drop forged steel mounting plate and horn base, with integrally forged kingpins and precision tapered thrust bearings; 8" and 10" models based on Series HS; 12" and 16" on Series EHD; and 18" through 25" on Series MD
  • Legs
Plate steel, continuously welded inside and outside to horn base. Wheels mounted outside for optimum stability.
  • Wheels
Bolted type industrial duty with heavy-duty bearings; automotive type tapered roller bearings with grease seals standard in 16" and 18" sizes, straight roller bearings in all others.
  • Axle Diameter
3/4" on 8" and 10" models; 1" on 12" and 16" models; 1 1/4" on 18" through 25" models.
  • Tires
8", 10" and 12" sizes are 4-ply rated, 16" is 6-ply, the extra-rugged 18" is 8-ply and the super rugged 21" & 25" are 10-ply.
  • Tires
To swivel assembly and to most wheel bearings.
  • Swivel Locks
4 position (-4SL [8", 10" & 12"])
  • Special Overall Height
  • Foam Filled Wheels
  • Gray Non-marking Tires

Expertly designed and engineered by Hamilton, Series 7200 gives you a standard line of casters with pneumatic rubber-tired wheels dually mounted to provide higher capacities. They were created to meet growing demand from applications like ground support for the aerospace industries, construction, or other outdoor uses, and shock protection for heavy equipment.
Hamilton Precision and Durability
At Hamilton we understand that fast delivery is critical. That's why as you browse our website, you'll notice the proliferation of a red star (). This PRONTO® Symbol identifies one of thousands of PRONTO® models we stock for you in our warehouse (so you don't have to) and pledge to ship either SAME-DAY, if arrived before noon EST, or otherwise next day service - all for no extra charge.

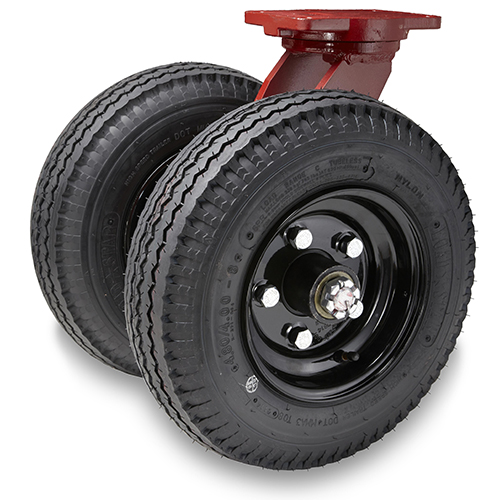

Dual-Pneumatic-Swivel-Caster-7200-Series
#S-7216-PR Swivel w/ Pneuamtic Wheels

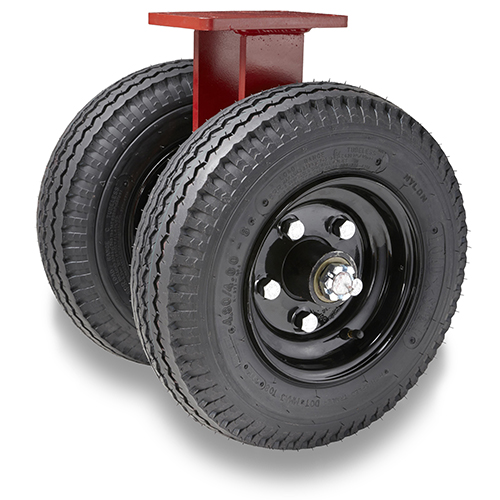

Dual-Pneumatic-Rigid-Caster-7200-Series
#R-7216-PR Rigid w/ Pneumatic Wheels
Dual Pneumatic 7200 Series Selection Table
Dimensions in inches
Wheel
Nominal
Diameter
Tire
Size
82.80/2.50-4
103.40/3.00-5
124.10/3.50-6
164.80-8
185.70-8
216.90/9
257.50/10
Model
Number
3 YR.
This Dual Pneumatic Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Bearing
Type
Load
Capacity
Lbs.
Overall Width
@Axle
Overall
Height
Mounting
Plate
S-7208-PR $30418Roller66010.875010 1/24 1/2 x 6 1/2
S-7210-PR $33722Roller96011.7512 1/24 1/2 x 6 1/2
S-7212-PR $41840Roller125014.5015 1/26 1/8 x 7 1/2
S-72166-PR $60658Tapered244016.5018 3/46 1/8 x 7 1/2
S-72188-PR $94692Tapered360019218 1/2 x 8 1/2
S-72210-PR $1,775128Tapered560023.5024 1/28 1/2 x 8 1/2
S-72250-PR $2,170177Tapered760023.5028 3/48 1/2 x 8 1/2
Model
Number
3 YR.
This Dual Pneumatic Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Bearing
Type
Load
Capacity
Lbs.
Overall Width
@Axle
Overall
Height
Mounting
Plate
R-7208-PR $25014Roller66010.875010 1/24 1/2 x 6 1/2
R-7210-PR $28019Roller96011.7512 1/24 1/2 x 6 1/2
R-7212-PR $31634Roller125014.5015 1/26 1/8 x 7 1/2
R-72166-PR $51652Tapered244016.5018 3/46 1/8 x 7 1/2
R-72188-PR $74775Tapered360019218 1/2 x 8 1/2
R-72210-PR $1,496111Tapered560023.5024 1/28 1/2 x 8 1/2
R-72250-PR $1,898152Tapered760023.5028 3/48 1/2 x 8 1/2
