Cush-N-Aire Zinc Plated Casters

Capacity Range: 330 - 3700 lbs.

  • Swivel Construction
Drop forged steel mounting plate and horn base. Legs 1/4" thick on 8" and 10" models; 3/8" on 12", 16", 21" and 25"; and 1/2" on 18" models, welded inside and outside.
  • Kingpin
Integrally forged with mounting plate, 3/4" diameter on 8" and 10" models; 1" diameter on 12"-18" models; and 1 1/4"dia. on 21" and 25" models.
  • Main Load Bearing
Large diameter raceway machined for hardened and polished steel balls.
  • Secondary Load Bearing
Precision tapered roller bearing capped with grease retainer.
  • Axle
Bolt and nut type: 1/2" diameter on 8" and 10" roller bearing models; 3/4" diameter on 10" tapered bearing models and all 12" models; 1" diameter on all 16" and 18" models; 1 1/4" on 21" and 25" models.
  • Tires
8", 10" and 12" sizes are 4-ply rated, 16" is 6-ply, the extra-rugged 18" is 8-ply and the super rugged 21" & 25" are 10-ply.
  • Brakes
- Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available. Select desired caster from selection table to see brake details.
  • Swivel Locks
4 position (-4SL [8", 10" & 12"])
  • Special Overall Height
  • Foam Filled Wheels
  • Gray Non-marking Tires

Hamilton Cush-N-Aires have become widely recognized as the leading pneumatic-tired casters in the industry. The quality that earned this reputation continues without compromise: all swivels are S.A.E. 1045 drop forged steel with an integrally forged kingpin and precision tapered thrust bearing to ensure easy swiveling and longer life.

These shock absorbing casters are popular for handling missile components, electronic equipment, ceramics, liquids, etc., as well as for use outdoors over rough surfaces. Pneumatic tires offer -variable flotation-: reduce inflation pressure to improve cushioning for lighter loads, or inflate fully for optimum rollability and capacity loads. All wheels except the 4-ply 16" size have bolted hubs.

Rigid Cush-N-Aire models, offering overall height and template patterns to match the swivels, are constructed of plate steel legs welded inside and outside to steel mounting plate.
Hamilton Precision and Durability
At Hamilton we understand that fast delivery is critical. That's why as you browse our website, you'll notice the proliferation of a red star (). This PRONTO® Symbol identifies one of thousands of PRONTO® models we stock for you in our warehouse (so you don't have to) and pledge to ship either SAME-DAY, if arrived before noon EST, or otherwise next day service - all for no extra charge.

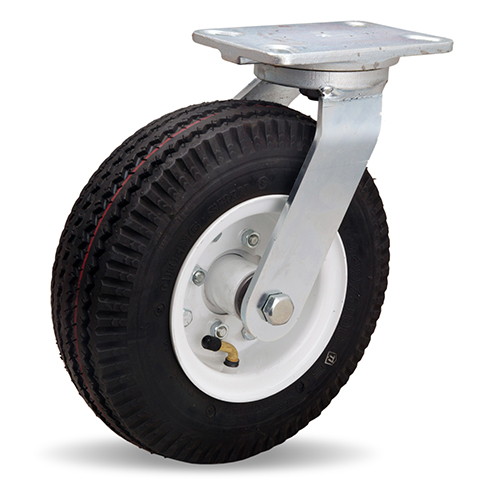

Pneumatic-Swivel-Caster-7100-Series
#S-7110-PR Swivel w/ Pneumatic Wheel

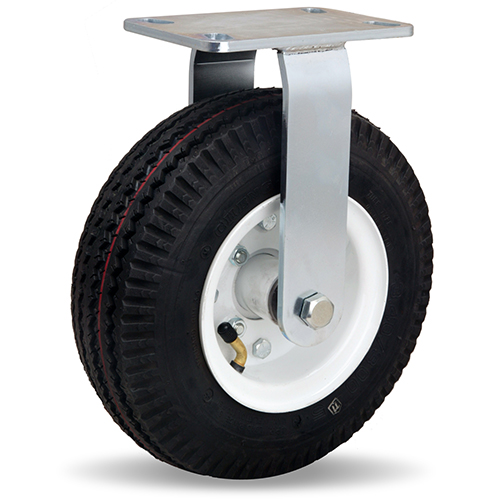

Pneumatic-Rigid-Caster-7100-Series
#R-7110-PR Rigid w/ Pneumatic Wheel
Pneumatic 7100 Series Selection Table
= available for 24 Hour PRONTO® shipment :Three Year Warranty appliesDimensions in inches
Wheel
Nominal
Diameter
Tire
Size
82.80/2.50-4
2.80/2.50-4
103.40/3.00-5
3.40/3.00-5
3.40/3.00-5
124.10/3.50-6
4.10/3.50-6
4.10/3.50-6
164.80-8
4.80-8
185.70-8
216.90-9
257.50-10
Model
Number
3 YR.
This Pneumatic Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Bearing
Type
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
S-7108-PRB $17412Prec. BB33010 5/84 x 5
S-7118-PR $21112Roller33010 5/84 1/2 x 6 1/2
S-7111-PRB $19714Prec. BB48012 1/24 1/2 x 6 1/2
S-7110-PRB $18614Roller48012 1/24 x 5
S-71104-PR$22914Tapered48012 1/24 1/2 x 6 1/2
S-7112-PRB $24917Prec. BB62515 1/44 x 5
S-7113-PRB $29031Prec. BB62515 1/26 1/8 x 7 1/2
S-71124-PR$36031Tapered62515 1/26 1/8 x 7 1/2
S-7116-PR $32936Roller96018 3/46 1/8 x 7 1/2
S-71166-PR$42439Tapered122018 3/46 1/8 x 7 1/2
S-71188-PR$50550Tapered180021 1/46 1/8 x 7 1/2
S-71210-PR$1,27390Tapered280024 1/28 1/2 x 8 1/2
S-71250-PR$1,526112Tapered380028 3/48 1/2 x 8 1/2
Model
Number
3 YR.
This Pneumatic Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Bearing
Type
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
R-7108-PRB $1148Prec. BB33010 5/84 x 5
R-7118-PR $1159Roller33010 5/84 1/2 x 6 1/2
R-7111-PRB $13111Prec. BB48012 1/24 1/2 x 6 1/2
R-7110-PRB $12910Roller48012 1/24 x 5
R-71104-PR$17311Tapered48012 1/24 1/2 x 6 1/2
R-7112-PRB $16917Prec. BB62515 1/44 x 5
R-7113-PRB $22024Prec. BB62515 1/26 1/8 x 7 1/2
R-71124-PR$25924Tapered62515 1/26 1/8 x 7 1/2
R-7116-PR $26729Roller96018 3/46 1/8 x 7 1/2
R-71166-PR$34732Tapered122018 3/46 1/8 x 7 1/2
R-71188-PR$42144Tapered180021 1/46 1/8 x 7 1/2
R-71210-PR$96873Tapered280024 1/28 1/2 x 8 1/2
R-71250-PR$1,22195Tapered380028 3/48 1/2 x 8 1/2
