Cush-N-Flex Casters

Capacity Range: 300 - 800 lbs.

  • Swivel Construction
(except #S-8008, #S-8010-SU, and #S-8012-SU) - Cold forged steel mounting plate and horn base, double ball race, formed and welded legs, and 5/8" diameter king-pin (3/4" on 10" & 12" models). Choice of two popular mounting plate and height dimensions on 6" and 8" models.
  • Axle
Bolt and nut type: 1/2" diameter on all models, except #S/R-8012-SU, #S/R-8410-SU, and #S/R-8412-SU which are 3/4" dia.
  • Wheel Bearing
Straight roller type: 3/4" with spanner bushing on all models except #S/R-8012-SU, #S/R-8410-SU, and #S/R-8412-SU (1" with spanner bushing on these).
  • Brakes
- Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available. Select desired caster from selection table to see brake details.
  • Swivel Lock
4 Position (-4SL)- convert swivel to rigid for straight line steering. (only on #S-8526-SU, #S-8008-SU, #S-8528-SU, #S-8010-SU, and #S-8012-SU).

Cush-N-Flex Casters feature the extra-soft (60 durometer), solid rubber Super-Flex wheels. They resemble pneumatics in appearance, but being puncture proof eliminate any risk of flats.- The extra-thick rubber tires are permanently vulcanized to cast aluminum hubs fitted with straight roller bearings to withstand rigorous industrial service.

You can choose either a caster having a precision thrust bearing with an integrally forged kingpin, or the more economical double ball race, rivet-kingpin model.

Specify Series 8000 Casters for use over very rough surfaces like steel grating, door sills, etc., or to provide greater cushioning than is achievable with other wheel types.

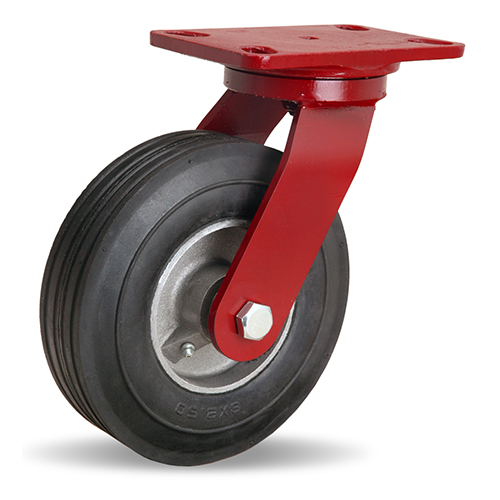

Cush-N-Flex-Swivel-Caster-8000-Series
#S-8008-SU Swivel w/ Ace-Tuf Wheel

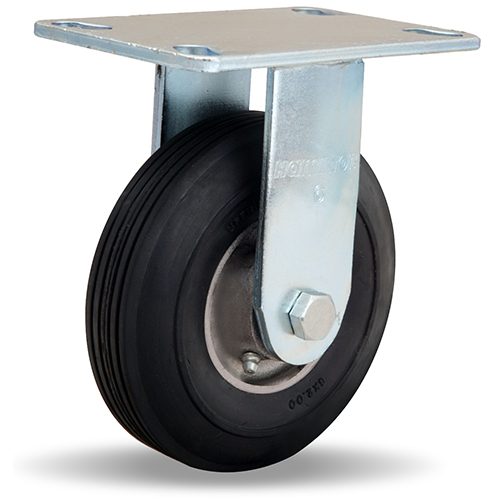

Cush-N-Flex-Rigid-Caster-8000-Series
#R-8256-SU Rigid w/ Ace-Tuf Wheel
Cush-N-Flex Series Selection Table
= available for 24 Hour PRONTO® shipment Dimensions in inches
Wheel
Nominal
Diameter
Face
62
82.50
102.75
122.75
Model
Number
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
S-8006-SU$7073007 1/24 1/2 x 6 1/4
S-8526-SU$6273007 1/24 x 4 1/2
S-8208-SU$85105009 1/24 1/2 x 6 1/4
S-8528-SU$7995009 1/24 x 4 1/2
S-8008-SU$1381350010 1/44 1/2 x 6 1/2
S-8410-SU$1601670011 3/84 1/2 x 6 3/8
S-8010-SU$1671670012 1/84 1/2 x 6 1/2
S-8012-SU$2773280014 1/26 1/8 x 7 1/2
Model
Number
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
R-8006-SU$6163007 1/24 1/2 x 6 1/4
R-8526-SU$5863007 1/24 x 4 1/2
R-8208-SU$7695009 1/24 1/2 x 6 1/4
R-8528-SU$7385009 1/24 x 4 1/2
R-8008-SU$85950010 1/44 1/2 x 6 1/2
R-8410-SU$1381470011 3/84 1/2 x 6 3/8
R-8010-SU$1141570012 1/84 1/2 x 6 1/2
R-8012-SU$1742680014 1/26 1/8 x 7 1/2
