Cush-N-Tuf Casters

Capacity Range: 450 - 850 lbs.

  • Swivel Construction
Cold forged steel mounting plate and horn base with formed steel legs continuously welded to horn base.
  • Kingpin
5/8" permanent rivet type.
  • Axle
1/2" diameter bolt and lock nut, with 1/2" I.D. x 3/4" O.D. spanner bushing.
  • Main and Secondary Swivel Bearings
hardened steel balls rotate in two heat treated raceways.
  • Wheel Bearings
3/4" I.D. heavy duty flange type ball bearings.
  • Lubrication fittings
To swivel assembly.
  • Swivel Construction
1/4" thick formed steel mounting plate and horn base. Legs 5/16" x 2 1/2" steel, formed for increased strength and continuously welded to horn base.
  • Kingpin
3/4" diameter bolt with lock nut.
  • Axle
3/4" diameter bolt with lock nut.
  • Main and Secondary Swivel Bearings
hardened steel balls rotate in two heat treated raceways.
  • Wheel Bearings
3/4" I.D. heavy duty flange type ball bearings.
  • Lubrication fittings
To swivel assembly.
  • Brakes
Keep safety manager happy with a heavy duty contact brake (-ZB) or a tread contact brake (-CB) for more positive locking. Select desired caster from selection table to see brake details.
  • Swivel Locks
4 Position Only
  • Swivel Seal
(-SS) 8" models only

Cushion rubber tires on high-impact polypropylene wheel centers suit Cush-N-Tuf™ Casters for fragile loads, or for service outdoors, over rough floors, dockboard lips and elevator sills. Unlike pneumatics, Ace-Tuf® tires won't deflate and can't be punctured. Industrial duty ball bearings are standard in all wheels. The casters–cold forged double ball race swivels and matching plate steel rigids– are bright zinc plated to complement the natural corrosion resistance of the Ace-Tuf® wheel. Check the attractive prices, too.
Hamilton Precision and Durability
At Hamilton we understand that fast delivery is critical. That's why as you browse our website, you'll notice the proliferation of a red star (). This PRONTO® Symbol identifies one of thousands of PRONTO® models we stock for you in our warehouse (so you don't have to) and pledge to ship either SAME-DAY, if arrived before noon EST, or otherwise next day service - all for no extra charge.

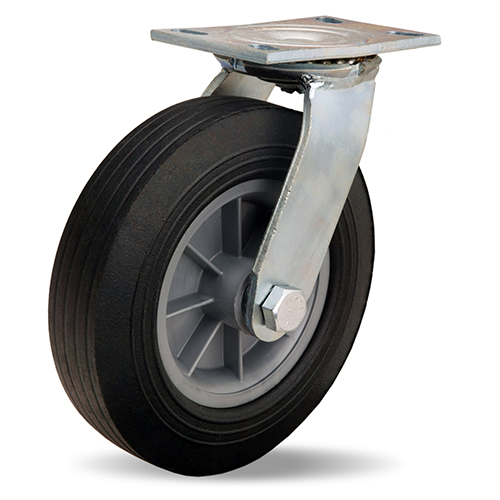

Cush-N-Tuf-Swivel-Caster-4000-Series
#S-4010-AT Swivel w/ Ace Tuf Wheel

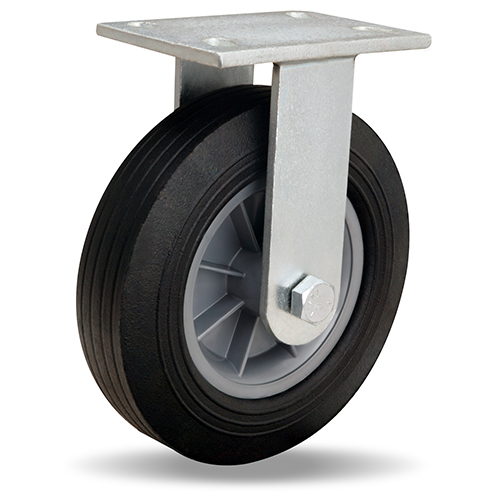

Cush-N-Tuf-Rigid-Caster-4000-Series
#R-4010-AT Rigid w/ Ace Tuf Wheel
Cush-N-Tuf Series Selection Table
= available for 24 Hour PRONTO® shipment Dimensions in inches
Wheel
Nominal
Diameter
Tire
Size
88 x 2 1/2
1010 x 2 3/4
Model
Number
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
S-4008-AT$5394509 1/24 1/2 x 6 1/4
S-4208-AT$4784509 1/24 x 4 1/2
S-4108-AT$5394509 1/25 x 5 1/2
S-4010-AT$1091455011 1/24 1/2 x 6 1/4
Model
Number
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
Mounting
Plate
R-4008-AT$4484509 1/24 1/2 x 6 1/4
R-4208-AT$4284509 1/24 x 4 1/2
R-4108-AT$4384509 1/25 x 5 1/2
R-4010-AT$851355011 1/24 1/2 x 6 1/4
