V-Grooved Stainless Steel Wheel Casters

Capacity Range: 325 - 1000 lbs.

  • Brakes
- Keep safety manager happy with a stainless steel heavy duty face contact brake (-SCB). Select desired caster from selection table to see brake details.
  • Swivel Lock
4 Position (-4SL)- convert swivel to rigid for straight line steering.
  • Wheel Bearing Seals
(-BS/-DS)
  • Special Overall Height
For most rigid models.
  • Custom Engineering
Hamilton engineers will custom design any caster to meet customer requirements.
V-Grooved Casters are finding increasing applications on industrial carts, assembly fixtures, containers, racks and other equipment where it is desirable to control direction, protect floors and provide ease of movement. Typical track plans are linear although curves, switches and turntables may be added to provide a multi-directional control system (in which case swivel casters must be used).

Utilizing V-Grooved Wheels, the swivel and rigid casters offered below cover a wide range of popular mounting plates, overall heights and capacities.

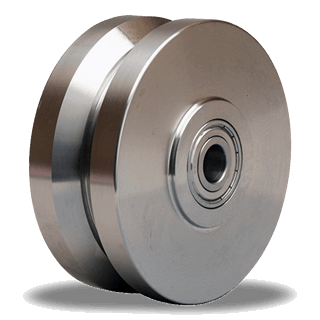

Stainless-Steel-V-Groove-Wheel-Caster
#R-STA-5SV Rigid w/ Stainless Steel Wheel








Stainless Steel V-Groove Series Selection Table
= available for 24 Hour PRONTO® shipment Dimensions in inches
Wheel
Dia.
A
Face
K
Groove
Width
31 3/85/8
41 3/85/8
27/8
27/8
527/8
27/8
627/8
27/8
827/8
27/8
Model No.
Roller Brgs.
3 YR.
MSRPWt.
Lbs.
Load
Cap.
Lbs.
Overall
Height
B
Size
C x D
Holes
E x F
S-STL-3SVZ $18533254 5/82 3/8 x 3 5/81 3/4 x 2 7/8 -> 1 3/4 x 3
S-STL-4SVZ $27273255 1/82 3/8 x 3 5/81 3/4 x 2 7/8 -> 1 3/4 x 3
S-WHS-4SVZ $436158505 5/84 x 52 5/8 x 3 5/8 -> 3 x 3
S-STA-4SVZ $319985063 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
S-STA-5SVZ $422108006 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
S-WHS-5SVZ $540199506 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
S-STA-6SVZ $469118007 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
S-WHS-6SVZ $5822410007 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
S-STA-8SVZ $629128009 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
S-WHS-8SVZ $7463810009 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
Model No.
Roller Brgs.
3 YR.
MSRPWt.
Lbs.
Load
Cap.
Lbs.
Overall
Height
B
Size
C x D
Holes
E x F
R-STL-3SVZ $16433254 5/82 3/8 x 3 5/81 3/4 x 2 7/8 -> 1 3/4 x 3
R-STL-4SVZ $25143255 1/82 3/8 x 3 5/81 3/4 x 2 7/8 -> 1 3/4 x 3
R-WHS-4SVZ $287118505 5/84 x 52 5/8 x 3 5/8 -> 3 x 3
R-STA-4SVZ $282585063 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-STA-5SVZ $38598006 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-WHS-5SVZ $391169506 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
R-STA-6SVZ $426208007 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-WHS-6SVZ $4312110007 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
R-STA-8SVZ $584118009 1/23 3/4 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-WHS-8SVZ $5873510009 1/24 x 52 5/8 x 3 5/8 -> 3 x 3
