Stainless Steel Workhorse Casters

Capacity Range: 550 - 1600 lbs.

  • Swivel Construction
1/4" thick forged stainless steel mounting plate; 1/4" x 2" plate steel legs robotically welded inside and outside to forged stainless steel horn base.
  • Kingpin
Sturdy 3/4" dia integrally forged with mounting plate, threaded for lock nut.
  • Main Load Bearing
Machined raceway with 3/8" diameter stainless steel balls.
  • Secondary Load Bearing
Machined raceway with 5/16" dia. stainless steel balls.
  • Axle
Stainless steel, 1/2" diameter hex head with lock nut.
  • Lubrication Fittings
Stainless Steel ballcheck type in swivel assembly.
  • Wheel Brakes
Tread Contact (-CB)
  • Swivel Lock
4 Position (-4SL)
  • Sealed Swivel Assembly
(-SS) - prolongs caster life in harsh environments.

The product engineering department at Hamilton Caster is proud to release this first of its kind heavy duty stainless steel caster series rated up to 1,600 lbs. load capacity! This caster is designed for extra heavy loads in severe applications where corrosive environments or sanitary considerations demand having all fork and hardware components of stainless steel. The forged stainless steel swivel caster construction includes a 3/4" diameter integrally forged kingpin that is guaranteed for life!

Each caster undergoes a special process after fabrication to insure the removal of embedded contaminants, edge burrs, and surface stresses. The resulting high-lustre finish not only enhances appearance but provides a smoother, less porous surface that's impervious to dirt and easier to clean - making these casters ideal for chemical factories, food production facilities, pharmaceutical houses, and other wash-down environments.
Hamilton Precision and Durability
All the ingredients of sound caster engineering are present in Hamilton's lowest capacity offering: two separate ball races, a compact but ruggedly handsome fork design, and surprisingly competitive prices. Bright zinc plating ensures continued good looks in hotels, stores, schools, offices, etc.



The Stainless Steel Workhorse Castersare backed by Hamilton's Three Year Product Warranty<. Refer to selection table for qualifying wheels.

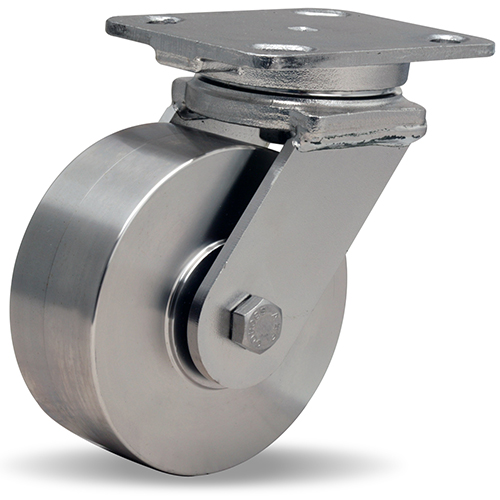

#S-WHS-5SB Swivel w/ Stainless Steel Wheel

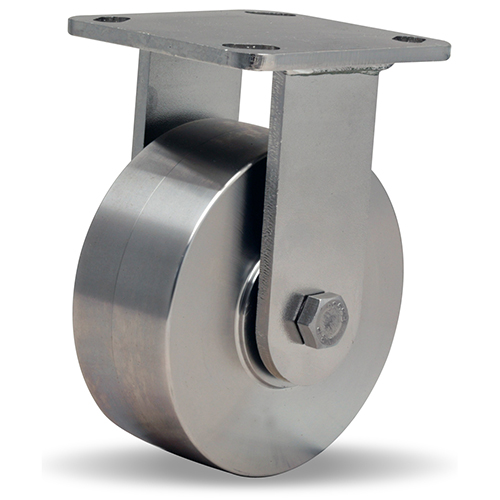

#R-WHS-5SB Rigid w/ Stainless Steel Wheel

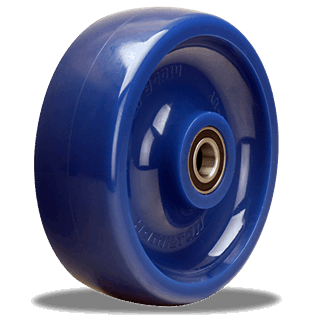

Wheel Choices
Stainless Steel Workhorse Series Selection Table
= available for 24 Hour PRONTO® shipment :Three Year Warranty appliesDimensions in inches
Wheel
DiameterFaceType
42

Injection molded polyolefin: water resistant high impact strength.

Solid high capacity cast nylon resistant to moisture & many chemicals.

90A polyurethane mechanically bonded to
polypropylene core.

Solid CNC-Machined Stainless Steel.

Solid Polyurethane 95A steam cleanable best for institutional use

Injection molded Nylon 6, water resistant, high impact strength

52

Injection molded polyolefin: water resistant high impact strength.

Solid high capacity cast nylon resistant to moisture & many chemicals.

90A polyurethane mechanically bonded to
polypropylene core.

Solid CNC-Machined Stainless Steel.

Solid Polyurethane 95A steam cleanable best for institutional use

Injection molded Nylon 6, water resistant, high impact strength

62

Injection molded polyolefin: water resistant high impact strength.

Solid high capacity cast nylon resistant to moisture & many chemicals.

90A polyurethane mechanically bonded to
polypropylene core.

Solid CNC-Machined Stainless Steel.

Solid Polyurethane 95A steam cleanable best for institutional use

Injection molded Nylon 6, water resistant, high impact strength

82

Injection molded polyolefin: water resistant high impact strength.

Solid high capacity cast nylon resistant to moisture & many chemicals.

90A polyurethane mechanically bonded to
polypropylene core.

Solid CNC-Machined Stainless Steel.

Solid Polyurethane 95A steam cleanable best for institutional use

Injection molded Nylon 6, water resistant, high impact strength

Model Number3 YR.
This Stainless Steel Workhorse Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
S-WHS-4AZ $22385505 5/8
S-WHS-4NYSB$342111600
S-WHS-4NFZ $2268500
S-WHS-4SZ$37215850
S-WHS-4UYZ $2679750
S-WHS-4WNSB$2498800
S-WHS-5AZ $22886506 1/2
S-WHS-5NYSB$30391600
S-WHS-5NFZ $2299600
S-WHS-5SZ$44315950
S-WHS-5UYZ $2719900
S-WHS-5WNSB$2509900
S-WHS-6AZ $23297507 1/2
S-WHS-6NYSB$407121600
S-WHS-6NFZ $2349800
S-WHS-6SZ$476221000
S-WHS-6UYZ $27991000
S-WHS-6WNSB$255101000
S-WHS-8AZ $242109009 1/2
S-WHS-8NYSB$443131600
S-WHS-8NFZ $24610900
S-WHS-8SZ$622351000
S-WHS-8UYZ $300101000
S-WHS-8WNSB$27212900
Model Number3 YR.
This Stainless Steel Workhorse Caster is backed by Hamilton's Three Year Product Warranty.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Overall
Height
R-WHS-4AZ $9045505 5/8
R-WHS-4NYSB$20981600
R-WHS-4NFZ $925500
R-WHS-4SZ$23912850
R-WHS-4UYZ $1345750
WHS-4WNSB$1164800
R-WHS-5AZ $9456506 1/2
R-WHS-5NYSB $23481600
R-WHS-5NFZ $955600
R-WHS-5SZ$31014950
R-WHS-5UYZ $1385900
R-WHS-5WNSB$1176900
R-WHS-6AZ $9757507 1/2
R-WHS-6NYSB$27291600
R-WHS-6NFZ $996800
R-WHS-6SZ$341191000
R-WHS-6UYZ $14461000
R-WHS-6WNSB$12071000
R-WHS-8AZ $10069009 1/2
R-WHS-8NYSB$301101600
R-WHS-8NFZ $1047900
R-WHS-8SZ$480321000
R-WHS-8UYZ $15871000
R-WHS-8WNSB$1298900
