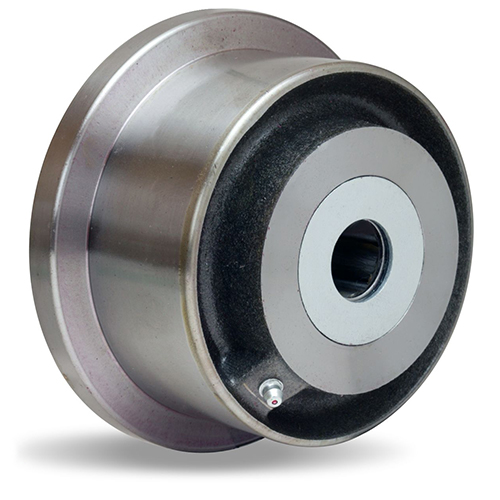

Single Flanged Track Wheels

Capacity Range: 1400 - 18,000 lbs.

  • Precision Ball Bearings
Souble sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent.
  • Heat Treating
Reduces wear in power-towed applications.
  • Keyways
With or without set screws for locking wheels on shaft.
  • Special Hub Length
Hubs can be cut to provide shorter length, "filler" washings furnished for greater length.

Hamilton offers the most comprehensive line of industrial flanged track wheels available. The grid below features our single flange steel wheels. Many industries are discovering that flanged wheels running on in-plant tracks give them an "instant production line." Loads are taken off the floor permitting higher capacities, easier rolling, floor protection and controlled flow all at the same time.

Most wheels are cast iron except as noted, and furnished with either plain bore, straight roller bearings, or precision tapered roller bearings.

For custom Flanged Wheels complete our custom worksheet here

All wheels are standard with face and flange CNC-machine finished, except WFT-82 which has a hardened "as cast" tread.

Heat treating is available for applications requiring better wear resistance, or involving higher capacities.

Hamilton can custom design and manufacture flanged wheels in most sizes from ductile iron, steel, bronze, stainless steel, nylon, or other materials in English or metric dimensions.
WFT-5FH-1
Flanged Track









Single Flanged Track Series Selection Table
= available for 24 Hour PRONTO® shipmentDimensions in inches
Wheel
Exclude Flg.
Dia.
A
Exclude Flg.
Face
S
Include Flg.
Dia.
P
Include Flg.
Face
K
Lgth.
H
Dia.
M
Dia.
N
Dim.
R
Wt.
Lbs.
3 1/21 7/164 1/81 7/82 1/42 11/162 11/163/86
41 15/1652 11/163 1/4
4 1/21 5/85 1/22 1/23 1/43 3/43 3/43/414
4 15/161 7/165 11/162 1/82 1/433013
52 1/1662 11/163 1/43 3/83 3/87/1617
6 1/81 5/882 1/82 3/42 9/162 9/161/421
1 11/1672 3/162 3/42 9/1631/419
7 7/81 3/48 5/82 7/322 1/42 7/82 7/8021
1 3/48 5/82 1/42 1/22 7/82 7/8020
2 1/49 1/42 3/43 1/43 3/43 3/41/426
82 1/49 1/233 1/43 3/43 3/41/829
8 7/82 1/410 1/22 5/82 1/42 1/22 1/219/3220
102 1/2123 7/643 1/43 3/43 3/41/847
41255000117
123143 3/44 1/4
142 3/415 5/83 5/163 1/23 1/83 1/81/256
14 7/82 9/1616 7/83 3/84 1/4661/287
Load
Capacity
Lbs.
Cored
Hole
Base
Number
Min.
Bore
Max.
Bore
1400SolidWFT-35L-1/22 3/16
3000SolidWFT-45L-1 3/162 7/16
1500SolidWFT-51L-12 1/4
43001 7/16WFT-5FL-1 3/42 7/16
40001 1/2WFT-61L-1 11/162 3/16
2500SolidWFT-6L-12 3/16
4500SolidWFT-8SDL-3/42 3/16
3200SolidWFT-8L-12 1/4
4750SolidWFT-82SDL-13
4500SolidWFT-82L-3/43
37507/8WFT-9L-11 15/16
5400SolidWFT-10L-1 15/163
45000SolidWFT-10SDL-2 7/166
30001 1/4WFT-14L-1 7/162 1/2
8000SolidWFT-15-2L-1 15/165
Load
Capacity
Lbs.
Base
Number
Bearing
Sizes
1400WFT-35H-
3/4---
WFT-4FH-
1-1/4---
3000WFT-45H-
1-1/4---
1500WFT-51H-
3/4---
4300WFT-5FH-
1-1/4---
4500WFT-61H-
1-1/4---
2500WFT-6H-
3/4---
4500WFT-8SDH-
1-1/4---
3200WFT-8H-
3/4---
4750WFT-82SDH-
1-1/4---
4500WFT-82H-
1-1/4---
3750WFT-9H-
3/4---
5400WFT-10H-
1-1/4---
---
---
3000WFT-14H-
1-1/4---
8000WFT-15-2H-
2---
Load
Capacity
Lbs.
Base
Number
Bearing
Sizes
1400WFT-35T-
3/41--
WFT-4FT-
3/41--
3000WFT-45T-
3/411-1/4-
1500WFT-51T-
3/41--
4300WFT-5FT-
3/411-1/4-
4500WFT-61T-
3/41--
2500WFT-6T-
3/41--
4500WFT-8SDT-
3/411-1/4-
3200WFT-8T-
3/411-1/4-
4750WFT-82SDT-
3/411-1/4-
3000WFT-82T-
3/411-1/4-
3750WFT-9T-
3/41--
5450WFT-10T-
11-1/4--
15000WFT-10SDT-
1-1/41-1/21-3/42
15000WFT-12FT-
1-1/41-1/21-3/42
3000WFT-14T-
1-1/4---
6000WFT-15-2T-
11-1/41-1/21-3/4
