Phenolic V-Grooved Wheels

Capacity Range: 380 - 12,500 lbs.

  • Groove Dimensions
  • Straight Roller Bearings
Traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
  • Wheel Bearing Seals

  • Special Hub Length
Hubs can be cut to provide shorter length, spacer washings furnished to increase length.
  • Spanner Bushings

Running V-Grooved Wheels on inverted angle iron track is a popular and low-cost method of taking loads off the floor and creating production-line flow. A relief groove in the "V" assures proper weight distribution and makes wheel and track "self-cleaning," while a partial flat-tread permits rolling the wheels directly on floors as well.

However, proper adjustment of tapered bearings precludes side-to-side wheel play.

To avoid the necessity for perfectly parallel tracks, directional control can be achieved by using a single track on one side only, and running flat-tread wheels of matching height on the opposite side.

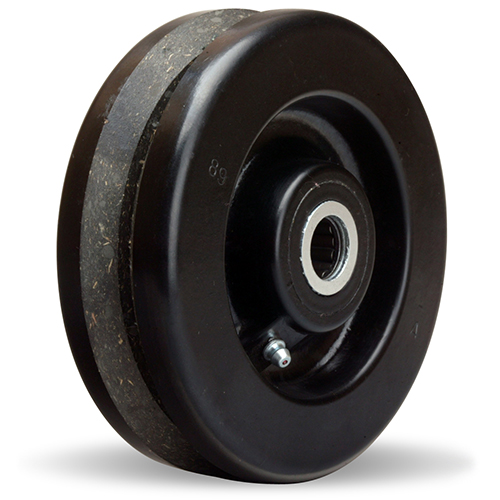

Phenolic-V-Grooved-Track-Wheel
620-PV-3/4
Phenolic V-Grooved








Phenolic V-Grooved Series Selection Table
Dimensions in inches
Wheel
Diameter
A
Face
K
Groove
Width
J
Weight
Lbs.
41 1/27/81
627/83
2 1/21 1/45
82 1/21 1/47
Load
Capacity
Lbs.
Base
Number
Bearing Sizes
380W-415-PV-
3/4---
750W-620-PV-
3/4---
1120W-625-PV-
1---
1250W-825-PV-
1---
Load
Capacity
Lbs.
Base
Number
Bore Sizes
380W-415-PVL-
1-3/16---
750W-620-PVL-
1-3/16---
1120W-625-PVL-
1-15/16---
1250W-825-PVL-
1-15/16---
