Single Flanged Iron Wheel Casters

Capacity Range: 500 - 18,000 lbs.

  • Brakes
- Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or thumbscrew wheel brake (-B) for more positive locking. Select desired caster from selection table to see brake details.
  • Shock Resistant
Cast iron wheels can be cast of Steeltest ductile iron (class 80-60-03) for increased shock resistance and capacity.
  • Wheel Brakes

  • Wheel Bearing Seals

  • Special Overall Height

  • Swivel Caster Mounting

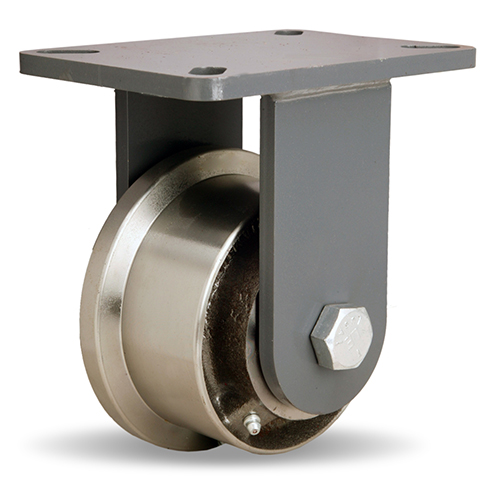

Hamilton Flanged Wheel Casters, like their V-Grooved counterparts, are also finding increasing industrial applications where floor protection, production-line flow and ease of movement are desired.

Since it is often more convenient to purchase flanged wheels in a plate-type rigid caster ready for mounting, you may choose from the wide selection of popular top plates, overall heights and caster series shown in the chart below.

Note the choice of straight or precision tapered roller bearings in the wheels, all having pressure lubrication fittings in the hubs (except 3 1/2" model). For complete wheel specifications, see flanged track wheel page.

Hamilton can design and manufacture flanged wheel casters requiring custom specifications, including higher capacities.
Flanged-Track-Iron-Wheel-Casters
#R-CH-FT5FH








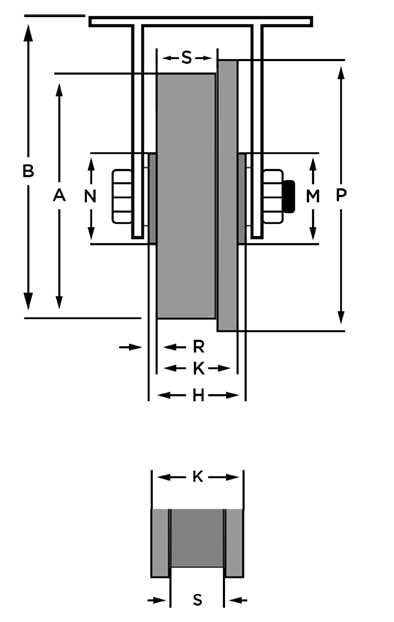

Flanged Track Iron Wheel Series Selection Table
= available for 24 Hour PRONTO® shipment Dimensions in inches
Wheel
Diameter
'A'
Face
'S'
3 1/21 7/8
4 1/22 1/2
4 15/162 1/8
52 11/16
6 1/82 3/32
7 7/82 7/32
2 1/4
2 3/4
83
8 7/82 5/8
103 7/64
5
143 5/16
14 7/83 3/8
Model No.
Roller Brgs.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Mounting
Plate
'C x D'
Bolt Holes
'E x F'
Overall
Height
'B'
R-HS-FT35H$82914004 1/2 x 6 1/22 7/16 x 4 15/16-> 3 3/8 x 5 1/45 3/8
R-WH-FT35H$80814004 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-CH-FT45H$2582630005 1/4 x 7 1/44 1/8 x 6 1/8 -> 3 3/8 x 5 1/47 1/4
R-HS-FT51H$971715004 1/2 x 6 1/22 7/16 x 4 15/16-> 3 3/8 x 5 1/46 1/8
R-WH-FT51H$961715004 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-EHD-FT5FH$2323243005 1/2 x 7 1/24 1/8 x 6 1/88
6 1/2 x 7 1/23 7/8 x 6 1/4 -> 5 1/8 x 5 3/4
R-CH-FT6H$1483225005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/88 1/16
R-CH-FT61H$213334000
R-CH-FT8SDH$2153440005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/88 15/16
R-CH-FT8H$133343200
R-CH-FT82SDH$27838350010 7/16
R-CH-FT82H$1633840005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/810 1/2
R-EHD-FT82H$1683730006 1/8 x 7 1/24 1/8 x 6 1/89 1/2
R-CH-FT9H$1523537005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/810 15/16
6 1/2 x 7 1/23 7/8 x 6 1/4 -> 5 1/8 x 5 3/412 1/2
R-MD-FT10H$3277354008 1/2 x 8 1/27 x 713
R-MD-FT14H$4507230008 1/2 x 8 1/27 x 716 1/2
R-MD-FT15H$73713780008 1/2 x 8 1/27 x 716 15/16
Model No.
Tapered Brgs.
MSRPWeight
Lbs.
Load
Capacity
Lbs.
Mounting
Plate
'C x D'
Bolt Holes
'E x F'
Overall
Height
'B'
R-HS-FT35T$137914004 1/2 x 6 1/22 7/16 x 4 15/16-> 3 3/8 x 5 1/45 3/8
R-WH-FT35T$136814004 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-CH-FT45T$2792630005 1/4 x 7 1/44 1/8 x 6 1/8 -> 3 3/8 x 5 1/47 1/4
R-HS-FT51T$1551715004 1/2 x 6 1/22 7/16 x 4 15/16-> 3 3/8 x 5 1/46 1/8
R-WH-FT51T$1541515004 x 4 1/22 5/8 x 3 5/8 -> 3 x 3
R-EHD-FT5FT$2653243005 1/2 x 7 1/24 1/8 x 6 1/88
R-EPSD-FT5FT$2633243006 1/2 x 7 1/23 7/8 x 6 1/4 -> 5 1/8 x 5 3/4
R-CH-FT6T$1783225005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/88 1/16
R-CH-FT61T$249334000
R-CH-FT8SDT$2513440005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/88 15/16
R-CH-FT8T$156343200
R-CH-FT82SDT$32838350010 7/16
R-CH-FT82T$2423840005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/810 1/2
R-EHD-FT82T$2463030006 1/8 x 7 1/24 1/8 x 6 1/89 1/2
R-CH-FT9T$1963537005 1/4 x 7 1/43 3/8 x 5 1/4 -> 4 1/8 x 6 1/810 15/16
R-EPSD-FT10T$3416054006 1/2 x 7 1/23 7/8 x 6 1/4 -> 5 1/8 x 5 3/412 1/2
R-MD-FT10T$3727554008 1/2 x 8 1/27 x 713
R-MD-FT10SDT$96413615000
R-MD-FT14T$4797230008 1/2 x 8 1/27 x 716 1/2
R-MD-FT15T$75913780008 1/2 x 8 1/27 x 716 15/16
