Forged Steel Wheels

Capacity Range: 1,400 - 23,000 lbs.

  • Precision Ball Bearings
Double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent.
  • Straight Roller Bearings
Traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
  • Tapered Roller Bearings
Best for most severe heavy duty and power-towed applications
Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity.

Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads.

All sizes (except 4" dia.) are available with precision tapered roller bearings in order to realize maximum benefits from the capacity potentials. All the wheels listed below come with a new clearcoat enamel finish. And wheels (except 4" dia.) have ball-check lubrication fittings installed in the hubs.

Flanged and V-Grooved wheels of forged steel are also available.

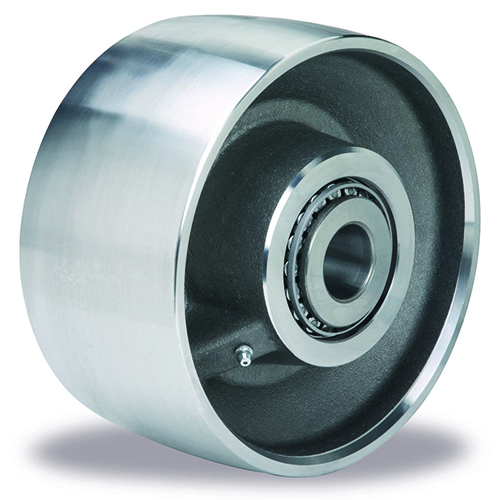

Forged-Steel-Metal-Wheel
W-840-FST-1-1/4
Forged Steel
Forged Steel Series Selection Table
= available for 24 Hour PRONTO® shipment :Three Year Warranty appliesDimensions in inches
Wheel
DiameterFaceWeight
Lbs.
41 1/26
527
628
2 1/215
321
8324
440
10334
445
12467
Hub
Length
Max Load
Capacity
Lbs.
Base
Number
3 YR.
This Forged Steel Wheel is backed by Hamilton's Three Year Product Warranty.
Bearing Sizes
2 1/21400W-415-FSB-
1/2---
2 1/22000W-5-FSB-
1/2---
2 1/22300W-6-FSB-
1/2---
3 1/23500W-625-FSB-
3/4---
3 1/24000W-630-FSB-
3/4---
3 1/27000W-830-FSB-
3/4---

---
3 1/26500W-1030-FSB-
3/4---

---

---
Hub
Length
Max Load
Capacity
Lbs.
Base
Number
Bore Sizes
2 1/41400W-415-FSL-
1-3/16---
2 1/41500W-5-FSL-
1-3/16---
2 1/42000W-6-FSL-
1-7/16---
3 1/44500W-625-FSL-
1-15/16---
3 1/412000W-630-FSL-
2-3/162-7/16--
3 1/414000W-830-FSL-
2-3/162-7/16--
4 1/417000W-840-FSL-
2-7/16---
3 1/416000W-1030-FSL-
2-3/16---
4 1/418000W-1040-FSL-
2-7/16---
4 1/423000W-1240-FSL-
2-7/16---
Hub
Length
Max Load
Capacity
Lbs.
Base
Number
Bearing Sizes
2 1/41400W-415-FS-
1/25/83/4-
2 1/41500W-5-FS-
1/25/83/4-
2 1/42000W-6-FS-
5/83/41-
3 1/43500W-625-FSH-
11-1/4--
3 1/46000W-630-FSH-
11-1/41-1/2-
3 1/46000W-830-FSH-
11-1/41-1/2-
4 1/46500W-840-FSH-
1-1/41-1/2--
3 1/46000W-1030-FSH-
11-1/41-1/2-
4 1/47500W-1040-FSH-
1-1/41-1/2--
4 1/47500W-1240-FSH-
1-1/41-1/2--
Hub
Length
Max Load
Capacity
Lbs.
Base
Number
3 YR.
This Forged Steel Wheel is backed by Hamilton's Three Year Product Warranty.
Bearing Sizes

---
2 1/22000W-5-FST-
1/2---
2 1/42500W-6-FST-
1/2---
3 1/24500W-625-FST-
3/41--
3 1/2Click on Brg. SizeW-630-FST-
3/411-1/4-
3 1/2Click on Brg. SizeW-830-FST-
3/411-1/4-
4 1/217000W-840-FST-
1-1/41-1/2--
3 1/2Click on Brg. SizeW-1030-FST-
3/411-1/4-
4 1/218000W-1040-FST-
1-1/41-1/2--
4 1/223000W-1240-FST-
1-1/41-1/2--
