Application

Washdown

Load Ratings (lbs.): 240 – 10,000
Get clean

Hamilton’s line of wash down casters and wheels are specially formulated for the harshest applications. Splash them with blood, brine, salt, grease, oils and chemicals. Need help choosing the right caster for an extreme job? Ask a Hamilton sales engineer.

Industries & Applications

  • Food Manufacturing
  • Pharmaceutical
  • Research labs/Clean Rooms
  • Marine/Fisheries
  • Food service/Hospitality


Washdown Casters

Placeholder Image

Champion Stainless (CHS)

Capacity: up to 3,200 lbs.
Wheel Diameters: 6" - 12"
  • Rugged hot forged swivel construction
  • CNC machined raceways
  • High lustre finish
Learn More
Placeholder Image

Workhorse Stainless (WHS)

Capacity: 550 – 1,600 lbs.
Wheel Diameters: 4" - 8"
  • Rugged hot forged swivel construction
  • CNC machined raceways
  • High lustre finish
Learn More
Placeholder Image

Stainless Light Duty (STL)

Capacity: 240 – 325 lbs.
Wheel Diameters: 3" - 5"
  • Stamped double ball raceways
  • Sealed swivel assembly standard
  • Seven wheel choices
Learn More
Placeholder Image

Stainless Medium Duty (STA)

Capacity: 350 – 800 lbs.
Wheel Diameters: 5" - 8"
  • Cold forged swivel construction
  • High luster finish
  • Seven wheel choices
Learn More

Washdown Wheels

Placeholder Image

Stainless Steel (S)

Capacity: 450 - 1,500 lbs.
Wheel Diameters: 3" - 8"
A 1” thick ether-based poly runs These rust-resistant wheels shine in high temperature and corrosive environments. Best for heavy loads in food processing, chemical plants, pharmaceutical and more.
  • Corrosive, sanitary, or high heat apps
  • Food, chemical, pharma, autoclaves
  • Custom sizes & bearings available
Learn More
Placeholder Image

Nylast™ (NY)

Capacity: 2,000 – 10,000 lbs.
Wheel Diameters: 4" - 12"
Specially formulated, heavy-duty cast nylon strengthens load-bearing capability. A viable alternative to steel. Well-suited for corrosive and sanitary environments.
  • Heavy duty cast nylon
  • Highest capacity of category
  • Viable alternative to steel
Learn More
Placeholder Image

White Nylon (WN)

Capacity: 350 – 1,100 lbs.
Wheel Diameters: 4" - 8"
Nylon 6 resists water, solvents, and most chemicals and cleaning solutions. High capacity with exceptional abrasion resistance. Steam cleanable.
  • Molded Solid Nylon 6
  • USFDA approved for contact with food
  • Cleanable with steam or detergent
Learn More
Placeholder Image

Aqualite® (A)

Capacity: 200 – 900 lbs.
Wheel Diameters: 2 1/2" - 8"
Liquid resistance and high-impact strength at a low cost. Made from injection-molded plastic with larger hubs and rims to boost durability. Available maintenance-free.
  • Low cost light duty solution
  • USFDA approved for contact with food
  • Cleanable with steam or detergent
Learn More
Placeholder Image

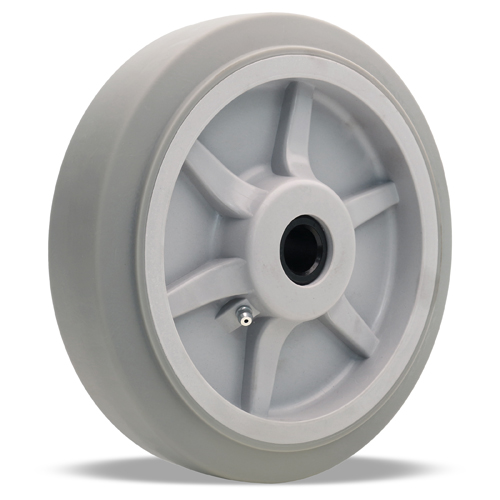

Versa-Tech® (TE)

Capacity: 240 – 500 lbs.
Wheel Diameters: 3 1/2" - 8"
This line of high-tech wheels is designed to handle the rigors of both industrial and institutional applications. The Versa-Tech® wheels are formulated with a soft 65 Durometer (±5, Shore A), modulus rubber tread permanently bonded to a polyolefin core.
  • Non-marking soft rubber on plastic center
  • Quiet and cushions load
  • Best for light industrial or institutional apps
Learn More
Placeholder Image

Poly-Tech® (NF)

Capacity: 350 – 1,200 lbs.
Wheel Diameters: 3 1/2" - 8"
Sleek, resilient wheels for sanitary use. They feature a non-marking, steam cleanable tread of red polyurethane mechanically bonded to a harder polypropylene center.
  • 95A poly on polypropylene core
  • Attractive, contemporary look
  • Suitable for institutional applications
Learn More
