Before aircraft doors close and the cargo straps tighten down, there’s a controlled little ballet happening on tarmacs everywhere. Massive deployment containers roll up narrow ramps, pivot through tight clearances and slide into aircraft with almost no margin for error. One bad wheel can turn the whole operation into turbulence.
That’s why a longtime Hamilton customer—a global provider of aviation services—trusts Hamilton casters on its rapid-deployment shelters and container systems. These mobile units are built for fast-moving operations: portable shelters, mission equipment and specialized containers designed to move wherever the job lands next.

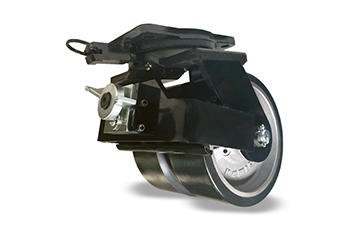

Their caster of choice is a custom Hamilton Extra Heavy-Duty Dual-Wheel Swivel Caster equipped with 8” x 3” Duralast XC® polyurethane wheels on cast iron cores. Rated at 5,200 pounds, the setup delivers the kind of heavy-lift performance that stays smooth from hangar floor to cargo hold.
The real first-class feature, though, is the brake setup.
We engineered an ergonomic step-on/step-off pedal with a deliberate tilt that prevents the bracket from scraping the ground while containers travel up loading ramps and into aircraft. In aviation logistics, smooth boarding matters just as much for cargo as it does for passengers.
The casters also feature a 4SL four-position swivel lock. Paired with the Dual ERZB foot brake, the system allows operators to lock containers securely in place once they’re inside the aircraft.
The dual-wheel design also earns its wings. By distributing weight across two wheels, the configuration keeps overall height lower while improving stability and maneuverability under punishing loads. Differential action reduces tread scrubbing against the floor, making it easier to swivel heavy containers through tight quarters without fighting the equipment.
Because in high-pressure environments, reliability always clears for takeoff first.
Extra Heavy-Duty Dual-Wheel Swivel Caster (SWIL EHD2 8X3 D 70D 4SL DERZB TILT)
- Capacity: 5200 lbs.
- Swivel offset: 2-1/2"
- Overal height: 10-1/2"
- Mounting plate: 6 1/8 x 7 1/2"
- Wheel: 70D Polyurethane Wheel Tread (8” x 3”)
- Rig and wheel center finish: Black
- Weight: 52 lbs
- Other: Ergonomic Brake and Swivel Lock
