This low-rider trailer carries 10 tons of attitude

Meet Hamilton's latest low-riding, heavy-hauling creation. This compact caster steer trailer moves massive industrial dies without making a big fuss about it. And that's no small feat. Industrial dies are the heavyweights of manufacturing. These massive metal tools shape, stamp and form everything from automotive components to everyday products. But moving them around a facility can be a balancing act. Literally. Because dies can have a high center of gravity, keeping them close to the ground helps reduce the risk of tipping during transport.

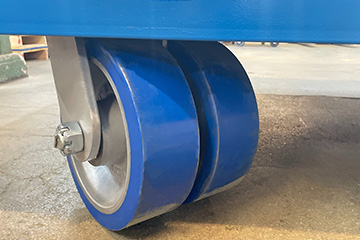

The dual-wheel design pulls double duty. By packing more wheel capacity beneath the load, it helps keep the trailer's overall height down. And because the wheels can rotate at different speeds during turns, less force is needed to change direction. That's some serious maneuverability for something carrying ten tons of cargo.

The rest of this blue bruiser is just as purposeful. Its heavy-duty steel frame and slip-resistant steel deck provide a sturdy foundation for heavy cargo. Four perimeter shackles serve double duty, providing lifting points for loading and unloading the trailer as well as securement points for the load. A tow eye makes it ready for power towing. And the whole package is finished in signature Hamilton Blue enamel.

Who knew 10 tons could be so down-to-earth?

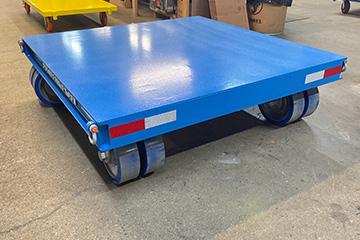

XT3802 Caster Steer Trailer

• Load Capacity: 20,000 lbs.
• Deck Size: 60" wide x 60" long
• Deck Height: 17-3/8"
• Running Gear:
  • o (4) 12” x 4” Dual Wheel Maxi Duty Casters (2 rigids at rear, 2 swivels at steering end)
  • o 12” x 4” Superlast® Polyurethane 95A with 1-1/4” Tapered Roller Bearings (W-1240-SYT-1-1/4)
• Deck Material: Steel
• Steering Type: Caster
• Finish: Steelwork enameled Hamilton Blue
• Travel Speeds: Walking Speed
• Other:
  • o Tie downs along the perimeter of the trailer (2 per side)
