Part Series

Ergo-X2 Swivel Casters

Capacity Range: up to 1200 lbs. per caster

The new Ergo-X2 Caster Series is a premium highly engineered caster designed to reduce the force needed to push or pull carts. The patented swivel caster design features two precision machined offsetting ball races in a compact assembly to minimize one of the final unresolved issues with swivel casters: lock up.



A typical swivel assembly in a caster has only one pivot point. The Ergo-X2 Caster essentially provides a second pivot point that reduces the startup force to get the cart moving when lock up is present.

Hamilton’s Ergo-X2 reduces these binding forces by providing internal relief via the offset swivel raceways. So the Ergo-X2 paired with one of Hamilton’s low start up poly treads is the safer way forward. US Patent No. 9,051,965

Check out our Video Tutorial to determine safe ergonomic push/pull forces.

Ergo-X2 puts Safety First
22%
So now it’s common for safety managers to demand that push/pull forces be as low as practically possible. Preliminary tests have indicated the force reduction of the Ergo-X2 can be as much as 22%. Safety experts and insurance professionals can vouch for the cost of one back injury, and recognize that an ounce of prevention with something like Ergo-X2 can be worth a pound of neglecting workers’ safety and hoping injuries won’t happen.



...

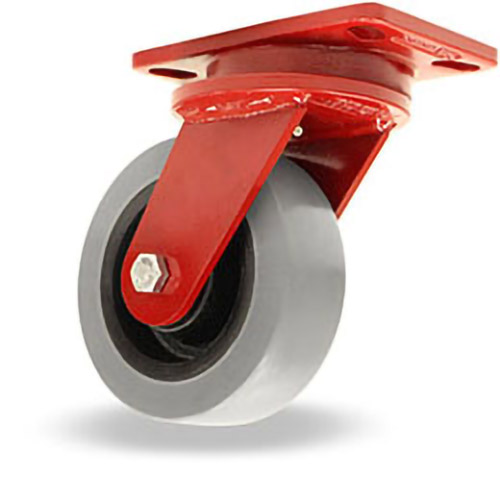

Ergo-X2 Swivel Caster

Quality Features & Specs

  • Swivel Construction

    All models have 5/16" forged steel mounting plate and horn base with integrally forged kingpins with CNC-machined and heat-treated raceways. Precision laser cut 1/4" thick legs.

  • Inverted Kingpin/Horn Base

    Sturdy 1-3/8" diameter with two CNC machined raceways integrally forged with horn base. Kingpin Induction heat treated for wear resistance and durability

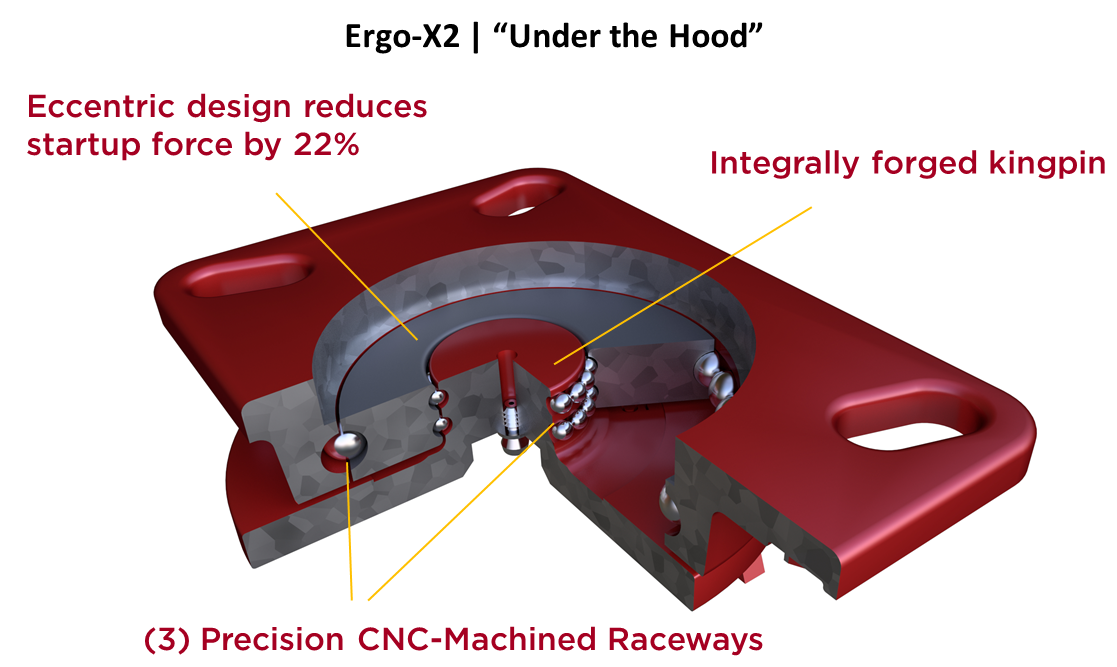

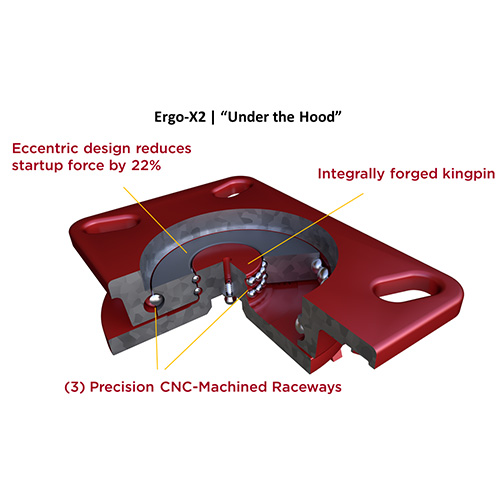

  • Eccentric Ring

    CNC-machined three ball races: two for engagement with Kingpin and one (offset) for engagement with Mounting Plate. Ring fabricated out of durable 4140HT steel. Ring is also heat-treated for wear resistance.

  • Axle

    Bolt and nut type: 1/2" dia. grade 5.

  • Lubrication Fittings

    Ball-check type in swivel assembly.

Wheel Choices

Duralast®

Ergo-Glide

Ergo-Glide XT

Ergo-Tech™

Nylast®

Plastex

Ultralast®

White Nylon

Optional Accessories

  • Custom Engineering

    Keep safety manager happy with positive locking and Hamilton's new heavy duty ergonomic contact brake (-ERZB) or the standard heavy duty face contact brake (-ZB). Select desired caster from selection table to see brake details.
