Manufactured Lean in the USA

Series EN2

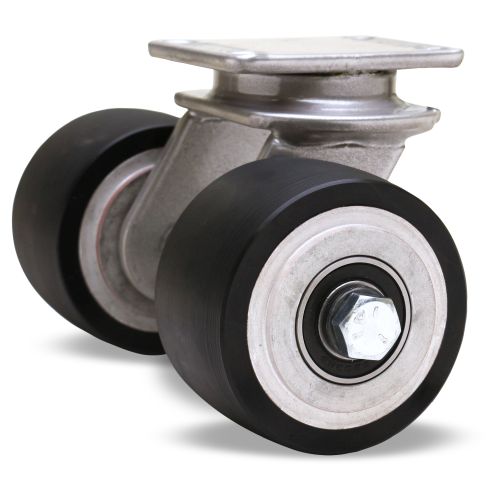

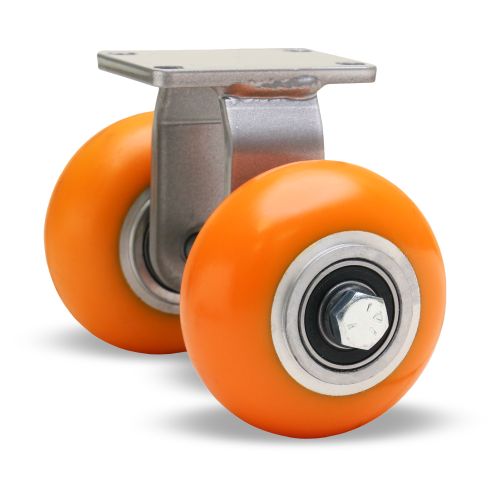

Endurance Dual Wheel

Maximum Load Capacity: 1000 lbs.

Overview

The Endurance Dual Wheel Caster Series is an answer to prayers from many of our customers. Endurance’s forged steel construction is perfect for applications that require 24/7 operations and/or are too critical to fail. With 3 ½-inch, 4-inch and 5-inch diameter options, and the incredibly popular 2-1/2 inch x 3-5/8 inch mounting plate, the Endurance Series is offered in both steel and stainless-steel versions.

Quality Features

Swivel Construction

Best of Breed Kingpinless - forged steel top plate and fork base; 1/4" x 1-3/4" precision laser cut steel legs welded inside and outside to forged steel horn base.
Load Bearing

1 7/8" diameter hardened and CNC-machined raceway with 1/4" balls.
Product Finish

Powder Coated - Caster rigs are powder coated with Hamilton’s Platinum Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments.
Axle

1/2" diameter hex head with lock nut.

Wheel Choices

Injection molded polyolefin: water resistant high impact strength.

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

High performance liquid cast 85A polyurethane bonded to heavy duty iron center.

High rollability, liquid cast 87A polyurethane donut tread bonded to aluminum core.

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory.

Solid high capacity cast nylon resistant to moisture & many chemicals.

Fiber-reinforced phenolic resin wheel.

90A polyurethane mechanically bonded topolypropylene core.

Solid Polyurethane 95A steam cleanable best for institutional use

Soft, non-marking gray rubber (65A) on polypropylene core.

Injection molded Nylon 6, water resistant, high impact strength

Accessories

Hamilton Durability

Three Year Warranty

The Endurance Dual Wheel Series (EN2) is backed by Hamilton’s Three Year Product Warranty. Refer to selection table for qualifying wheels.
