Series ZFSEC, ZFSEC2, ZFMD & ZFMDD

Spinfinity® Press-On Casters

Capacity Range: up to 23,000 lbs.



If your application demands transporting super heavy loads safely at a high speed, turn to Spinfinity® Casters with TerraTech® wheels. These casters are best working in indoor and outdoor environments and offer two different mounting plate sizes.

Spinfinity® Maxi-Duty Casters contain a heavy-duty "V-Style" seal for the swivel raceway, thicker legs, larger axles, and massive double stacked precision ball bearings to accommodate the higher speeds. The Spinfinity® SEC top plate and inner raceway are forged steel formed from one piece, providing a superior raceway for shock conditions.

The sealed swivel raceways combined with the sealed precision ball bearings qualify these casters, like all Spinfinity® Series, to be 100% maintenance-free.

The dual wheel options provide much more load capacity for the (2) press-on rubber types. For all wheel offerings, the dual-wheel style adds stability and allows for a lower overall height. Note: All wheels with diameters greater than 18" will have black tread.

Check out our TerraTech® Wheel outdoor testing.

...

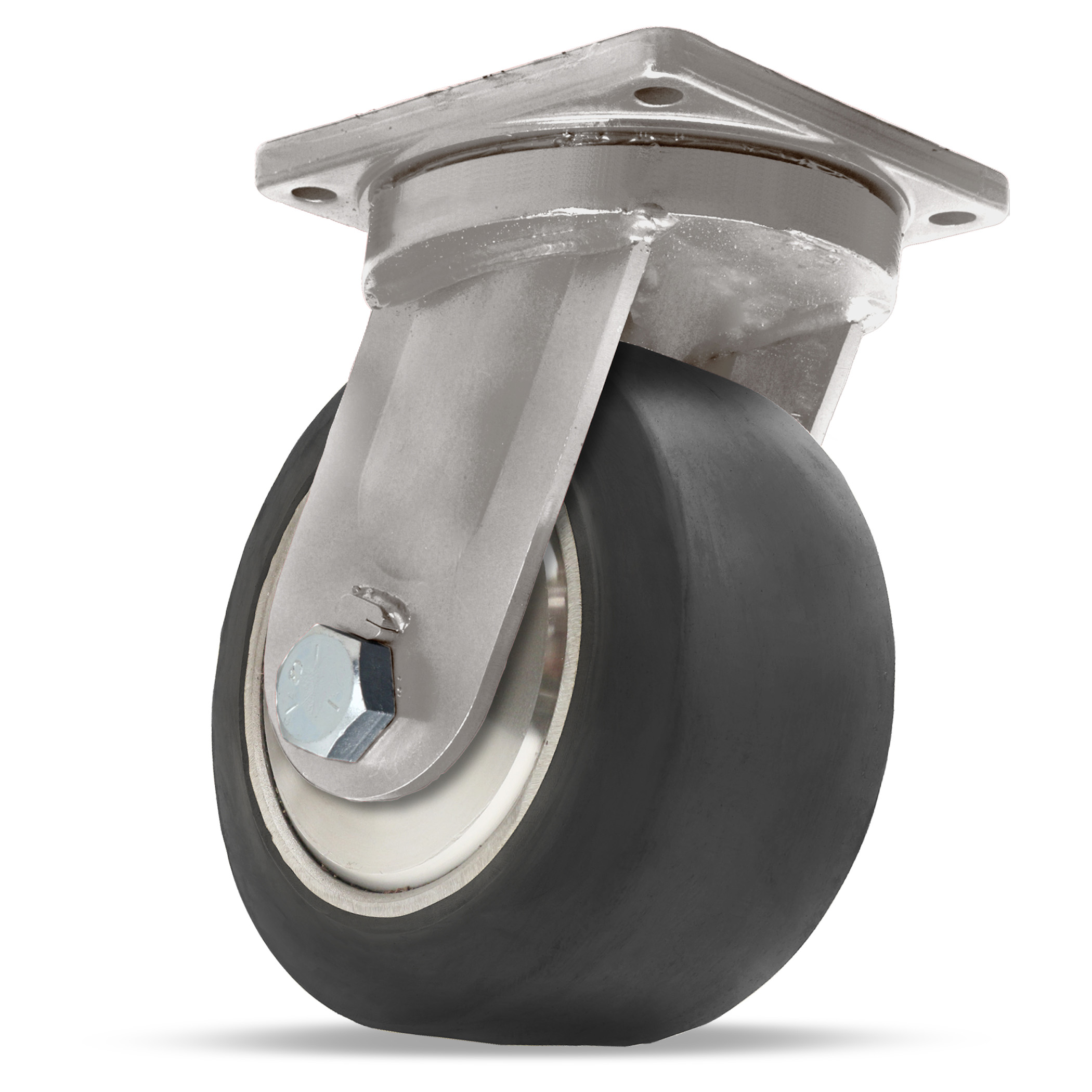

Spinfinity-Maxi-Duty-Swivel-Caster

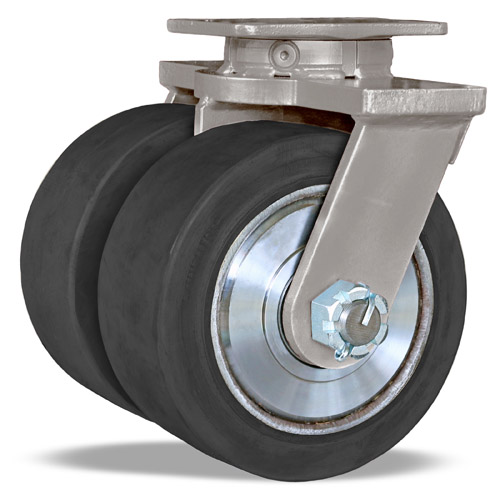

Spinfinity-Super-Endurance-Dual Wheel-Swivel-Caster

Quality Features & Specs

  • Swivel Construction

    Best of Breed Kingpinless - forged steel top plate and fork base.

  • Load Bearing

    ZFMD & ZFMDD: 7" diameter CNC-machined and hardened raceway with 5/8" balls. ZFSEC & ZFSEC2: 3 5/8" diameter CNC-machined and hardened raceway with 5/8" balls.

  • Sealed Swivel Construction

    The forged ring is CNC-machined with a precision groove to accept a large seal made from Nitrile butadiene rubber (NBR) designed to keep grease in and contaminants out.

  • Product Finish

    Powder Coated - Caster rigs are powder coated with Hamilton’s Platinum (ZFMD & ZFMDD) or Crimson (ZFSEC & ZFSEC2) Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments.

  • Axle

    ZFSEC & ZFSEC2: 1 1/4", 1 1/2" or 2" diameter grade 5 hex head with slotted nut and cotter pin. ZFMD & ZFMDD: 1 1/4", 1 1/2" or 2" diameter grade 5 hex head with slotted nut and cotter pin.

Wheel Choices

TerraTech Black Rubber

Optional Accessories

  • Brakes

    Keep safety managers happy with a heavy duty face contact brake (-DHCB). Select desired caster from selection table to see brake details.

  • Swivel Lock

    4 Position (★-4SL-MD) - convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.

  • Toe Guard

    Toe Guards help protect workers’ feet and can be used for both manual and power applications.

  • Custom Engineering

    Hamilton engineers will custom design any caster to meet customer requirements. See Custom Gallery
