Series AEZFFM

Aerospace Shock Absorbing ForgeMaster Casters

Capacity Range: 200 – 2775 lbs.

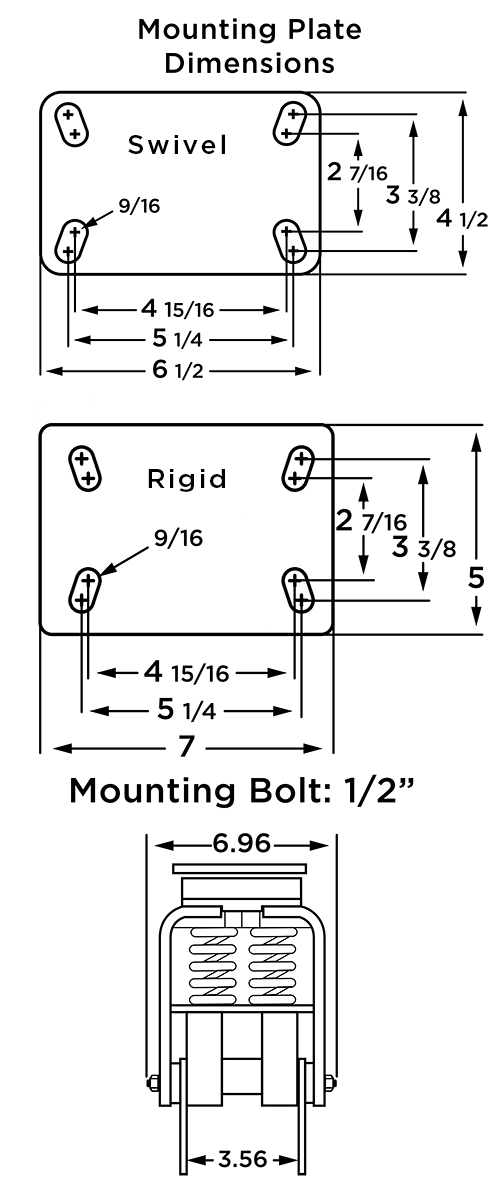

The shock absorbing aerospace (AE) ForgeMaster Series casters protect cargo, reduce noise and extend the life of the caster, wheel, and bearings. This series features the popular 4-1/2” x 6-1/2” mounting plate and 3” wide wheels. The casters are well suited not only for aerospace applications but also for those heavy-duty material handling challenges that require extra care during transport in industrial environments.

These shock absorbing casters feature Hamilton’s newest Spinfinity® maintenance-free swivel construction and their unibody spring housing provides up to 200% greater spring travel compared to our standard line. The new spring design also provides a much wider operating capacity range. Keep in mind, since the spring is pre-loaded, the minimum capacity is required to cause the spring to yield. (A load under the minimum capacity may not result in any absorption of shock.)

Like all Hamilton forged steel casters, the AE ForgeMaster Casters are manufactured in Hamilton, Ohio USA. Select from eleven different wheel types. Optional accessories such as swivel locks and wheel brakes are also available. The AE ForgeMaster Series caster can be easily modified to accommodate many custom specification requirements. 6" dia x 3" wide wheels are also available, consult factory.

...

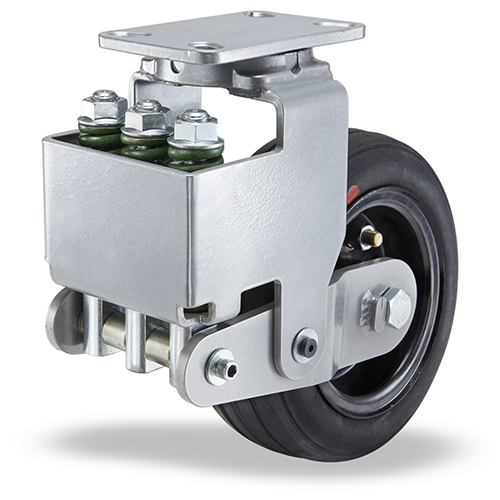

Aerospace-AEZFFM-Shock-Absorbing-Swivel-Caster

Quality Features & Specs

  • Swivel Construction

    Forged steel top plate and fork base; 3/8" x 2-1/2" plate steel legs welded inside and outside to forged steel horn base.

  • Main Load Bearing

    3 5/16" diameter hardened and CNC-machined raceway with 3/8" balls.

  • Sealed Swivel Construction

    The forged ring is cnc-machined with a precision groove to accept a large seal made from Nitrile butadiene rubber(NBR) designed to keep grease in and contaminants out.

  • Product Finish

    Powder Coated - Caster rigs are powder coated with Hamilton’s Platinum Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments.

  • Spring Housing

    Unibody spring housing provides up to 200% greater wheel travel (1-1/4”) and a wider operating capacity range compared to our standard line.

    Spring Specs: Wheel Travel 1-1/4” and a minimum load of 200 lbs.

  • Axle

    3/4" diameter hex head with lock nut.

Wheel Choices

DuraGlide

Duralast XC®

Duralast®

Ergo-Glide

Ergo-Glide XT

Forged Steel

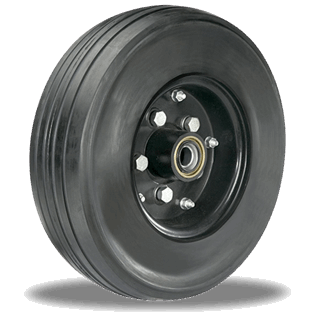

HD Solid Pneumatic

Metal

Nylast®

Plastex

Superlast®

UltraGlide® 24-7

UltraGlide® XC

Optional Accessories

  • Brakes

    Keep safety managers happy with an integrated heavy duty face contact brake ZB-type. Consult factory for pricing. Other styles available.

  • Swivel Lock

    4 Position (★ -4SL) convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.

  • Custom Engineering

    Hamilton engineers will custom design any caster to meet customer requirements.
