Manufactured Lean in the USA

10" wheel not available, 8" wheel shown

Key Features

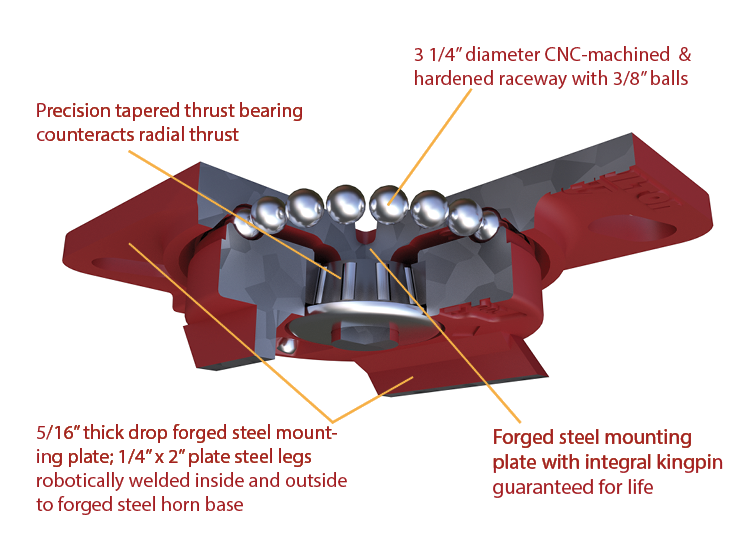

  • Swivel Construction 5/16" thick drop forged steel mounting plate 1/4" x 2" plate steel legs robotically welded inside and outside to forged steel horn base

  • Swivel Construction 5/16" thick drop forged steel mounting plate 1/4" x 2" plate steel legs robotically welded inside and outside to forged steel horn base

Industries & Applications

  • Manufacturing Plants
  • Heavy Machinery
  • Fabrication
  • Maintenance repair & operations
  • Warehouse & distribution
  • Tooling Fixtures, die carts
Model No.
S-AEZFFM-83DB70-4SL-FB

Hamilton Heavy Service Swivel Caster with 6" x 2" Duralast® Polyurethane (95A) on Cast Iron Wheel with 1/2" Sealed Precision Ball Bearings

Caster Specs

  • Load Capacity (lbs.): 1200
  • Wheel Diameter: 6"
  • Wheel Face: 2"
  • Overall Height: 7.75"
  • Bearing Type: PRecision BB
  • Cater Rig Type: Forged Steel
  • Wheel Type: Duralast
  • Replacement Wheel: W-620-DB-1/2
  • Caster Color: Crimson Red

Wheel Specs

  • Type: Duralast®
  • Material: Polyurethaney
  • Cushioning (Resilience): Medium
  • Impact Resistance: Medium
  • Moisture Resistance: Medium
  • Abrasion Resistance: High
  • Low Temp. Range (F): -50
  • High Temp. Range (F): 200
  • Chemical Resistance: Medium
