Series AVG-GB95

DuraGlide-AGV Wheels

Capacity Range: 750 – 7700 lbs.

The new DuraGlide-AGV Series is Hamilton’s answer to heavy-duty wheels for AGVs (automated guided vehicles) and other continuous duty applications.

Hamilton engineers began with our standard DuraGlide polyurethane tread and upgraded the cores of the larger wheels from cast iron to indestructible forged steel. The forged steel centers not only added strength and durability but also allowed engineers to spec larger precision ball bearings better suited to handle the 24/7 operation. Top-hat bushings are press-fit into the precision bearings to eliminate axial play and significantly reduce noise, especially when changing direction.

Like the standard DuraGlide, the DuraGlide-AGV has 1” thick 95A of dynamically responsive polyurethane that rolls up to 40% easier than most other poly wheels. DuraGlide poly runs much cooler than most polyurethanes resulting in an excellent wheel for AGV’s.

DuraGlide’s thicker tread also reduces heat stress on the bond line. And because there’s more polyurethane to compress, the psi pressure is lower and therefore the urethane endures less stress fatigue for longer life. DuraGlide-AGV is medium gray poly molded to heavy duty black cast iron for the 2” wide wheel sizes and black forged steel centers on all others.

The selection table below offers our most popular wheel sizes but the DuraGlide-AGV can also be offered in special finished sizes ranging up to 20” diameter.

Looking for an AGV Caster? DuraGlide-AGV wheels are also featured in Hamilton’s new AGV Caster Series.

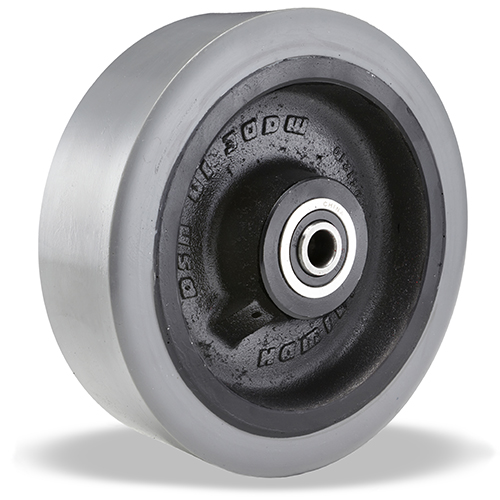

DuraGldie-AGV-Wheels

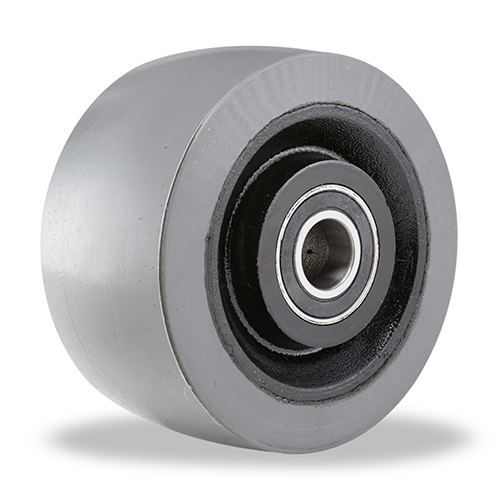

DuraGldie-AGV-Wheels
DuraGlide Energy Efficient Polyurethane

Physical Properties

  • Cores

    4" x 2" & 5" x 2" - heavy duty aluminum

    6" x 2" & 8" x 2" - heavy duty cast iron
    All other sizes - heavy duty forged steel

  • Composition

    High grade low heat liquid cast polyurethane.

  • Hardness

    95 Durometer (Shore A).

  • Bayshore Rebound

    40%

  • Elongation at Break

    380%

  • Tensile Strength

    6500 psi.

  • Tear Strength

    700 pli. min.

  • Abrasion Resistance

    5-10 times ordinary rubber

  • Temperature Range

    -50° to +200° F. intermittent; 0° to 150° F continuous. Not damaged by occasional steam cleaning.

Optional Accessories

  • Keyways, and/or set screws

    For locking wheels on shaft (plain bore).

  • Special Hub Length

    Hubs can be cut to provide shorter length, spacer washings furnished to increase length.
