Series AGV-EGB

Ergo-Glide XT-AGV Wheels

Capacity Range: 750 – 3800 lbs.

The new Ergo-Glide XT-AGV is your best choice for AGV applications in environments where cushioning, quiet operation, and/or debris rejection are top priorities. The Ergo-Glide XT-AGV is essentially our Ergo-Glide XT overhauled for continuous 24/7 operation. We begin with the 1” thick Ergo-Glide tread to provide a relatively high capacity and then mold our quietest polyurethane onto heavy forged steel centers for unbeatable durability. These large cores allow Hamilton engineers to spec larger bearings better suited for AGV applications. Finally the bearing assembly is designed with superior top-hat spanner bushings press-fit into the precision ball bearings to eliminate axial play and significantly reduce noise.

Hamilton’s Ergo-Glide poly is our top performer in repelling foreign objects and debris. The softer 85A urethane allows the wheel to roll over obstacles more easily as the tread will tend to conform to the obstacle rather than roll up and over it. Factory personnel will also benefit from this wheel’s quiet ride to reduce noise.

The selection table below offers our most popular sizes but these AGV wheels can also be offered in special finished sizes ranging up to 20” diameter.

Looking for an AGV Caster? ErgoGlide-XT-AGV wheels are also featured in Hamilton’s new AGV Caster Series.

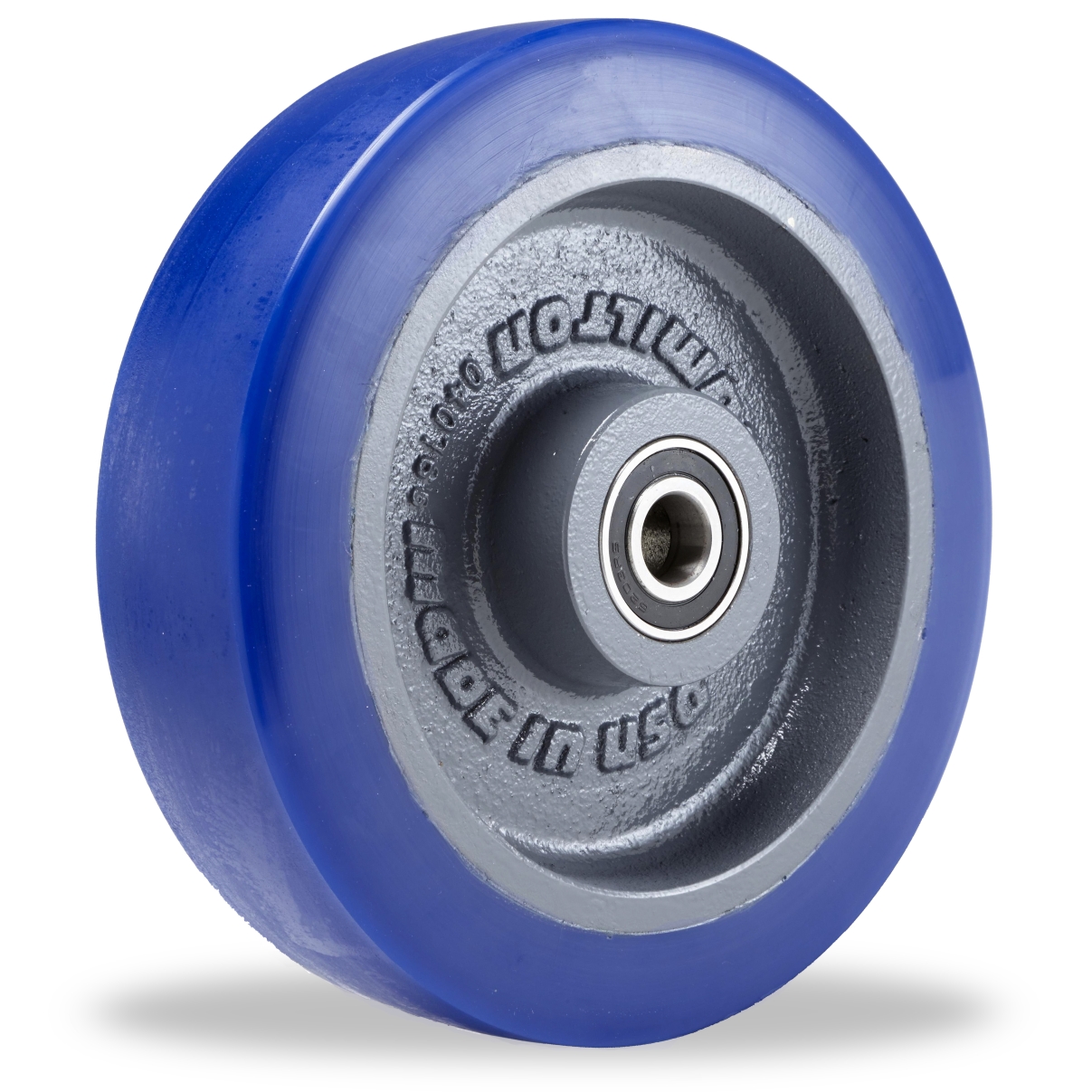

ErgoGlide-XT-AGV-Primary

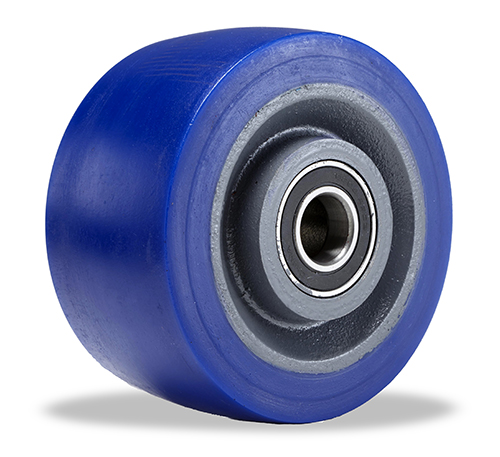

ErgoGldie-XT-AGV-Secondary

Physical Properties

  • Cores

    6" x 2" & 8" x 2" - heavy duty cast iron
    All other sizes - heavy duty forged steel

  • Composition

    High grade liquid cast polyurethane.

  • Hardness

    82-85 Durometer (Shore A).

  • Bayshore Rebound

    38%

  • Elongation at Break

    570%

  • Tensile Strength

    6000-6200 psi.

  • Tear Strength

    500 pli. min.

  • Abrasion Resistance

    5-10 times ordinary rubber

  • Temperature Range

    -50° to +175° F. intermittent; 0° to 150° F continuous. Not damaged by occasional steam cleaning.

Optional Accessories

  • Keyways, and/or set screws

    For locking wheels on shaft (plain bore).

  • Special Hub Length

    Hubs can be cut to provide shorter length, spacer washings furnished to increase length.
