Series POYB-MAX

TerraTech® MAX Wheels

Capacity Range: 1,700 – 34,000 lbs.



Hamilton's new TerraTech® MAX press-on poly wheels are ideally suited for super heavy loads riding over extra tough terrain such as gravel (eg. mining industry) or floors with FOD (foreign objects and debris). The TerraTech® MAX has the highest cut and tear resistance of our resilient tread wheel offerings and represents one of the highest wear resistant compounds in the market. The compound also affords the highest load rating of our press-on wheels so select TerraTech® MAX if load capacity is king.

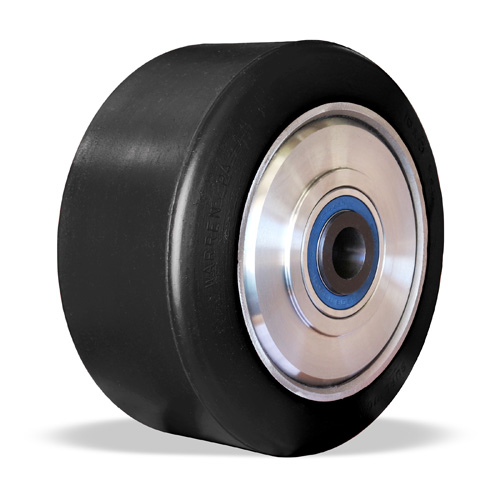

Similar to our other TerraTech® varieties, the TerraTech® MAX is equipped with massive double-stacked, maintenance-free precision ball bearings and offered below in popular sizes for use on industrial trailers and wagons. For wheel diameters up to 18" tread color can be ordered in natural or black. For diameters over 18", tread color is black. Additional non-stock sizes are available, consult factory.

For casters mounted with our new TerraTech® Wheels, please see our new Spinfinity XC Caster Series. For general purpose applications, we recommend our TerraTech® Standard wheels. For continuous 24/7 runtime applications, we recommend our TerraTech® ULTRA wheels Check out our TerraTech® Wheel outdoor testing.

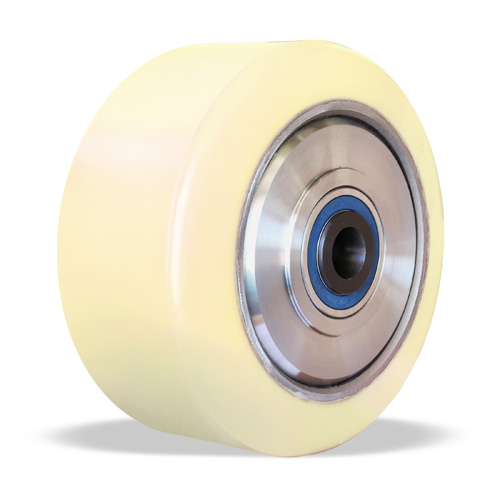

TerraTech_MAX_Poly_Wheel
TerraTech_Poly_Wheel

Physical Properties

  • Composition

    High grade liquid cast polyurethane

  • Hardness

    93 Durometer (Shore A)

  • Bayshore Rebound

    25%  ASTM D-2632

  • Ultimate Elongation

    550% ASTM D-412

  • Tensile Strength

    6500 psi.  ASTM D-412

  • Temperature Range

    -10° to +150° F

Optional Accessories

  • Keyways, and/or set screws

    For locking wheels on shaft (plain bore).

  • Special Hub Length

    Hubs can be cut to provide shorter length, spacer washings furnished to increase length.

  • Spanner Bushings
