Series POYB-ULTRA

TerraTech™ Ultra Press-on Wheels

Capacity Range: 1,800 – 15,300 lbs.

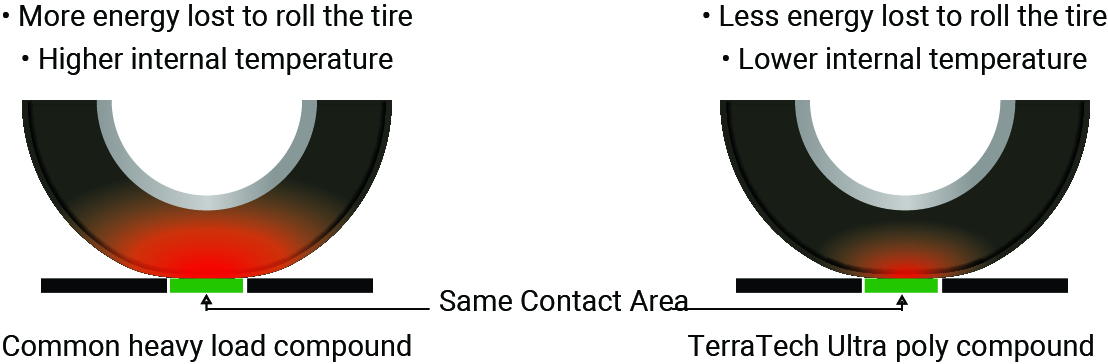

The new TerraTech Ultra Press-On Wheels are Hamilton's answer to applications running up to 10 mph continuously (24/7) and carrying heavy loads up to 13,000 lbs. Two primary design features provide the continuous duty rating: 1) the face or running surface of the TerraTech Ultra tire is CNC-machined with only 0.015" total run-out providing our smoothest riding press-on and prolonged wheel work-life and 2) the TerraTech Ultra compound is formulated similar to our DuraGlide Wheels and represents our coolest running press-on wheel. The TerraTech Ultra is also your best choice of a polyurethane press-on wheel for outdoor applications.

To support the high speeds and provide greater rollability, engineers equipped the new TerraTech wheels with massive double-stacked maintenance-free precision ball bearings. Also, the extra-thick, extra-wide solid tires feature a bond to the rim that is guaranteed to never fail. The replaceable tire & steel rim are "pressed on" to a heavy duty 1045 steel core cnc-machined to tight tolerances. Standard tread color is yellow but can be optionally ordered in black. TerraTech Wheels are offered below in a variety of popular sizes. Additional non-stock sizes are available, consult factory.

For casters mounted with our new TerraTech Wheels, please see our new Spinfinity XC Caster Series. For general purpose press-on applications, we recommend our TerraTech Standard Wheels. Check out our TerraTech Wheel outdoor testing.

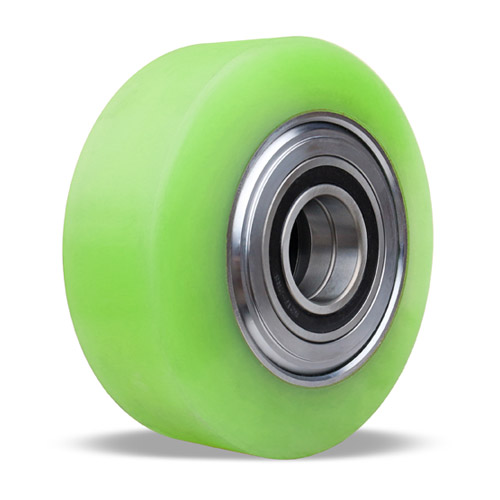

TerraTech_ULTRA_Poly_Wheel
TerraTech_ULTRA_Poly_Wheel

Physical Properties

  • Composition

    High grade liquid cast polyurethane

  • Hardness

    93 Durometer (Shore A)

  • Bayshore Rebound

    42%  ASTM D-2632

  • Ultimate Elongation

    450% ASTM D-412

  • Tensile Strength

    4900 psi.  ASTM D-412

  • Temperature Range

    -70° to +175° F

Optional Accessories



  • Keyways, and/or set screws

    For locking wheels on shaft (plain bore).

  • Extra Tough Poly Tread

    For outdoor applications that run over gravel or incredibly rough terrain (think mining industry), ask for optional TerraTech MAX poly material.

  • Special Hub Length

    Hubs can be cut to provide shorter length, spacer washings furnished to increase length.

  • Spanner Bushings
