Series U

U-Grooved Wheels

Capacity Range: 600 – 16,000 lbs.

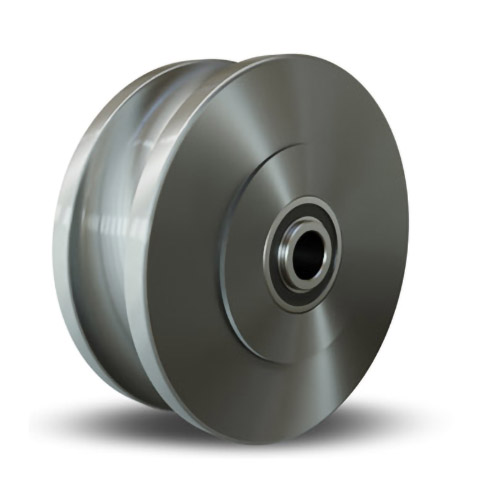

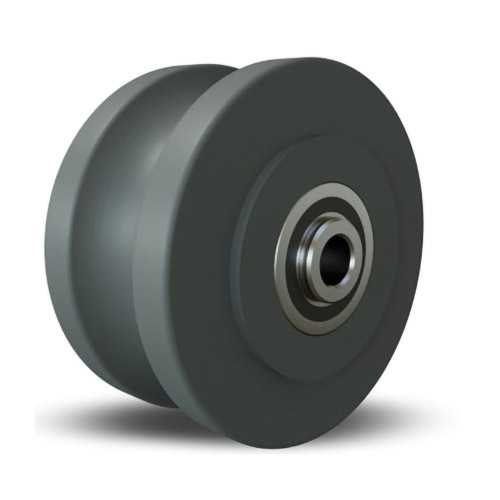

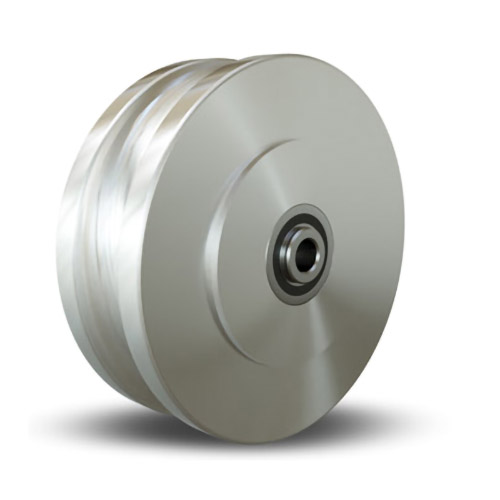

U-Grooved Wheels designed for easy riding along straight or curvy tracks of round tubing or pipe. Found in everyday applications such as pulleys, rolling gates and doors, food services, washdown, and other industries where tubed tracks are common.

Hamilton can machine U-Groove wheels to spec size (up to 25” diameter) in four different materials: nylon, aluminum, steel or stainless steel.

Use the idler wheel or drive wheel diagram below for the important information we'll need to quote, then email us at info@hamiltoncaster.com with your requirements. One of our sales engineers will then reply back with a quotation.

Physical Properties

Optional Accessories

Straight Roller Bearings

traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
Tapered Roller Bearings

Best for most severe heavy duty and power-towed applications.
Precision Ball Bearings

Double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent.

Optional Accessories

Wheel Bearing Seals
Keyways, and/or set screws
Special Hub Length

Hubs can be cut to provide shorter length, spacer washings furnished to increase length.
Spanner Bushings

Name
Company
Email
City
State
Phone
Area Code
Quantity
Face Width
Drive Wheel
Yes
Outside Diameter
Hub Length
Bore Diameter
Groove Depth
Axle Diameter
Keyway Needed
Yes
Groove Width
Track Outside Diameter
Set Screw(s) Needed?
1
2
Tread Material
Dimensional unit
Imperial
Metric
Additional Info

Manufactured Lean in the USA
