Manufactured Lean in the USA

10" wheel not available, 8" wheel shown

Wheel Specs

  • Load Capacity (lbs.): 1200
  • Wheel Diameter: 6
  • Wheel Face: 2
  • Hub Length: 2.5
  • Hub Diameter: 2.25
  • Bearing Type: Precision Ball
  • Weight (lbs.): 8
  • Wheel Color/Finish: Green Poly on Gray Center
  • Note: Published hub length includes 1/4" for top hat spanners.
  • Wheel Type: Duralast®

Physical Properties

  • Composition: High grade liquid cast polyurethane
  • Hardness: 90-95 Durometer (Shore A)
  • Bayshore Rebound: 29%
  • Elongation at Break: 430%
  • Tensile Strength: 7200
  • Abrasion Resistance: High
  • Temperature Range: 50° to +200° F. intermittent; 0° to 180°j F continuous. Not damaged by occasional steam cleaning
Model No.
W-620-DB-3/4

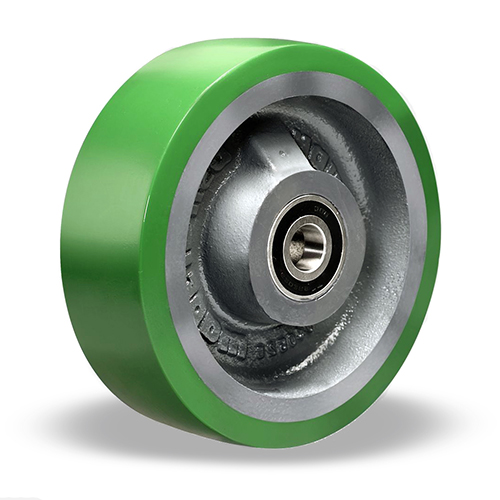

Hamilton Duralast® Polyurethane (95A) on Cast Iron Wheel 6" Diameter x 2" Wide x 2 1/2" Hub Length with 3/4" Sealed Precision Ball Bearing

Wheel Characteristics

  • Type: Duralast®
  • Material: Polyurethane
  • Relative Capacity: High
  • Cushioning (Resilience): Medium
  • Impact Resistance: Medium
  • Moisture Resistance: Medium
  • Abrasion Resistance: High
  • Relative Cost: Medium
  • Low Temp. Range (F): -50
  • High Temp. Range (F): 200
  • Chemical Resistance: Medium
